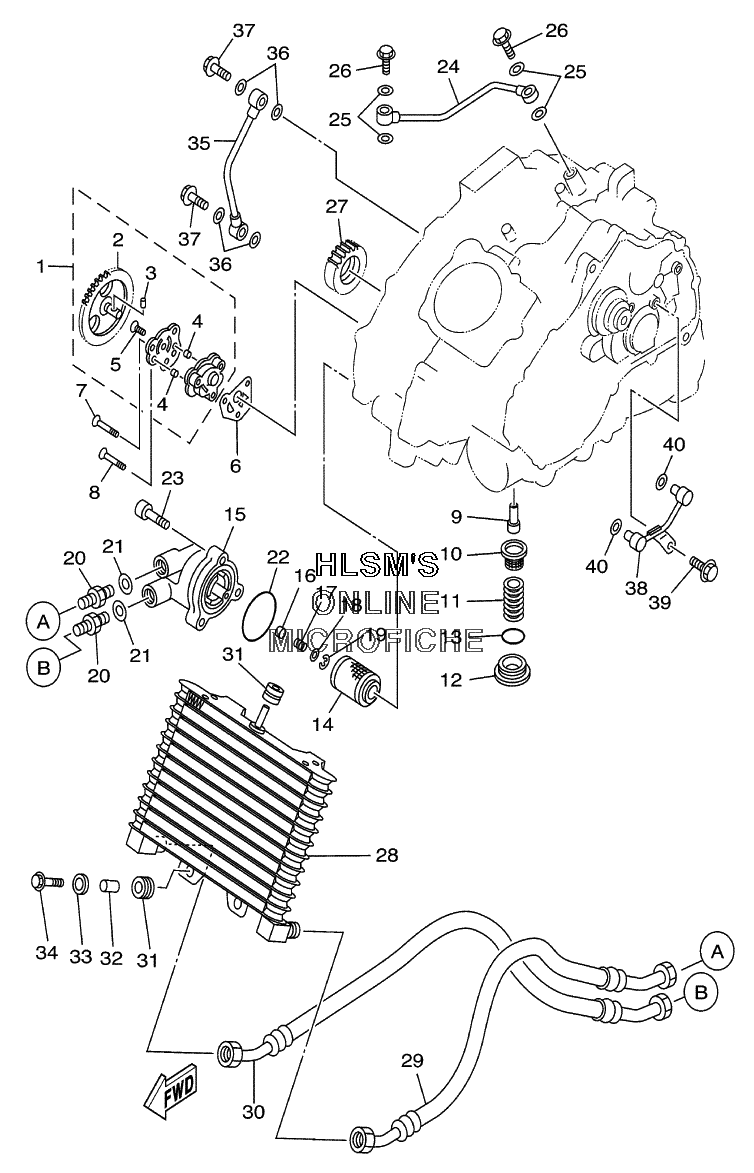

OIL PUMP W/ COOLER для Yamaha BIG BEAR 4WD YFM400FWNN (5FU6) - 2001 года выпуска`
-
№АртикулНазвание
-
11UY-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21UY-13326-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
393603-12030-00 ...PIN, DOWEL...PIN, DOWEL
-
493603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
590151-06010-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
63GD-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
798707-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
890151-06058-00 SCREW,FLAT HEADSCREW,FLAT HEAD
-
92XK-13416-00-00 PIPE, OILPIPE, OIL
-
1051Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1190501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1230X-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1393210-35520-00 O-RINGO-RING
-
141UY-13440-02-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
154KB-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
161YW-13497-00-00 PLUGPLUG
-
1790501-082E3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
-
1993420-13073-00 CIRCLIPCIRCLIP
-
2051Y-13132-50-00 JOINTJOINT
-
2190430-14043-00 GASKETGASKET
-
2293210-54452-00 O-RINGO-RING
-
2390110-06224-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
244KB-13171-00-00 PIPE, DELIVERYPIPE, DELIVERY
-
2590430-08119-00 WASHER,PLATEWASHER,PLATE
-
2690401-08038-00 BOLT, UNIONBOLT, UNION
-
274KB-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
285FU-E3480-00-00 ELEMENT, OIL COOLERELEMENT, OIL COOLER
-
295FU-E3464-00-00 HOSE, OILHOSE, OIL
-
305FU-E3465-00-00 HOSE, OILHOSE, OIL
-
3190480-15235-00 GROMMETGROMMET
-
3290387-060A7-00 COLLARCOLLAR
-
3390209-06174-00 WASHERWASHER
-
3495807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
354KB-13161-01-00 PIPE, DELIVERYPIPE, DELIVERY
-
3690430-08119-00 WASHER,PLATEWASHER,PLATE
-
3790401-08117-00 BOLT, UNIONBOLT, UNION
-
384KB-13181-00-00 PIPE, DELIVERYPIPE, DELIVERY
-
3995027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4093210-06632-00 O-RINGO-RING
