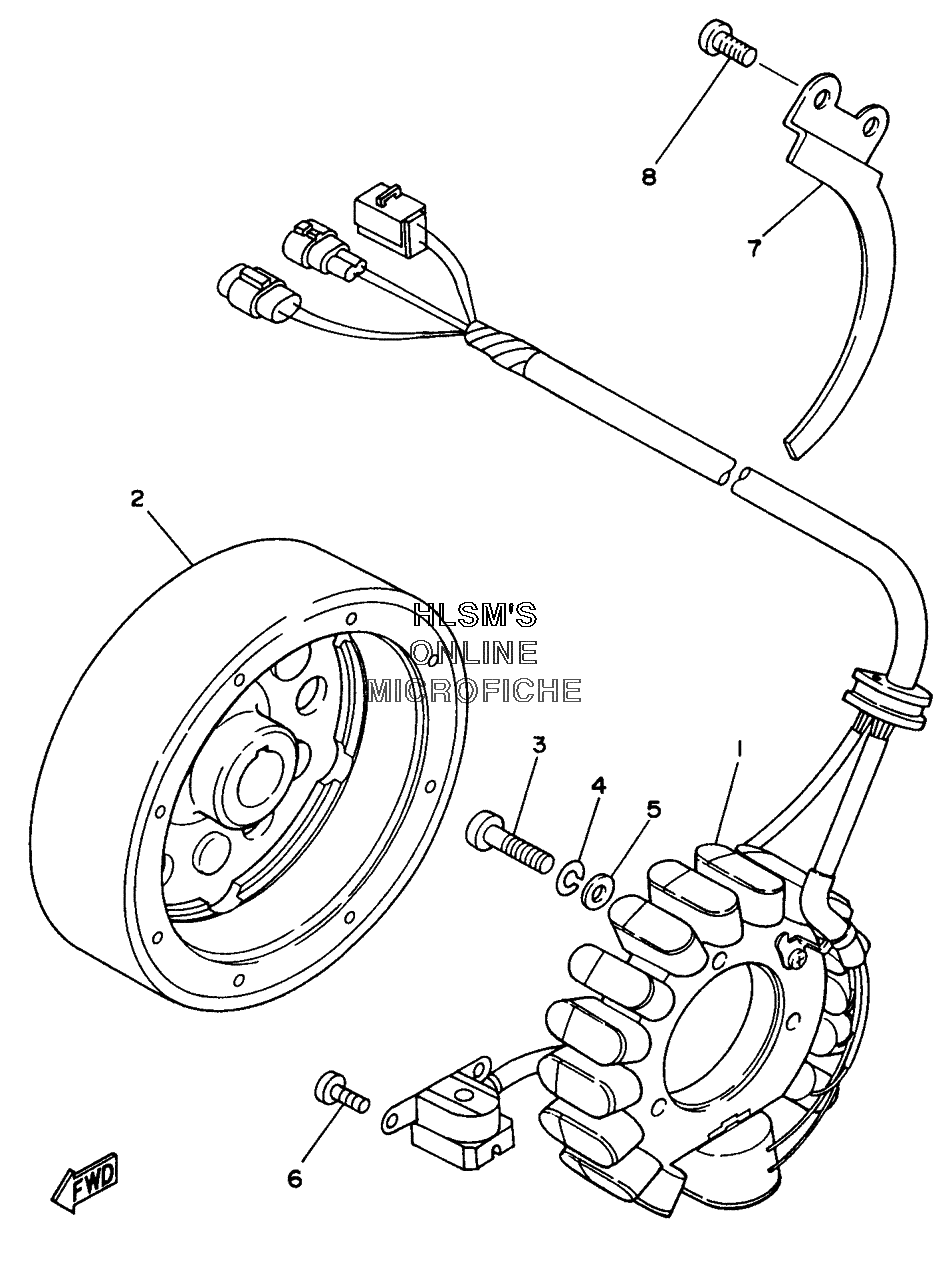

GENERATOR для Yamaha WARRIOR YFM350XM CALIFORNIA (3GDV) - 2000 года выпуска
-
№АртикулНазвание
-
13HN-85510-10-00 STATOR ASSYSTATOR ASSY
-
23HN-85550-01-00 ROTOR ASSYROTOR ASSY
-
398507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-06100-00 WASHER, SPRINGWASHER, SPRING
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
