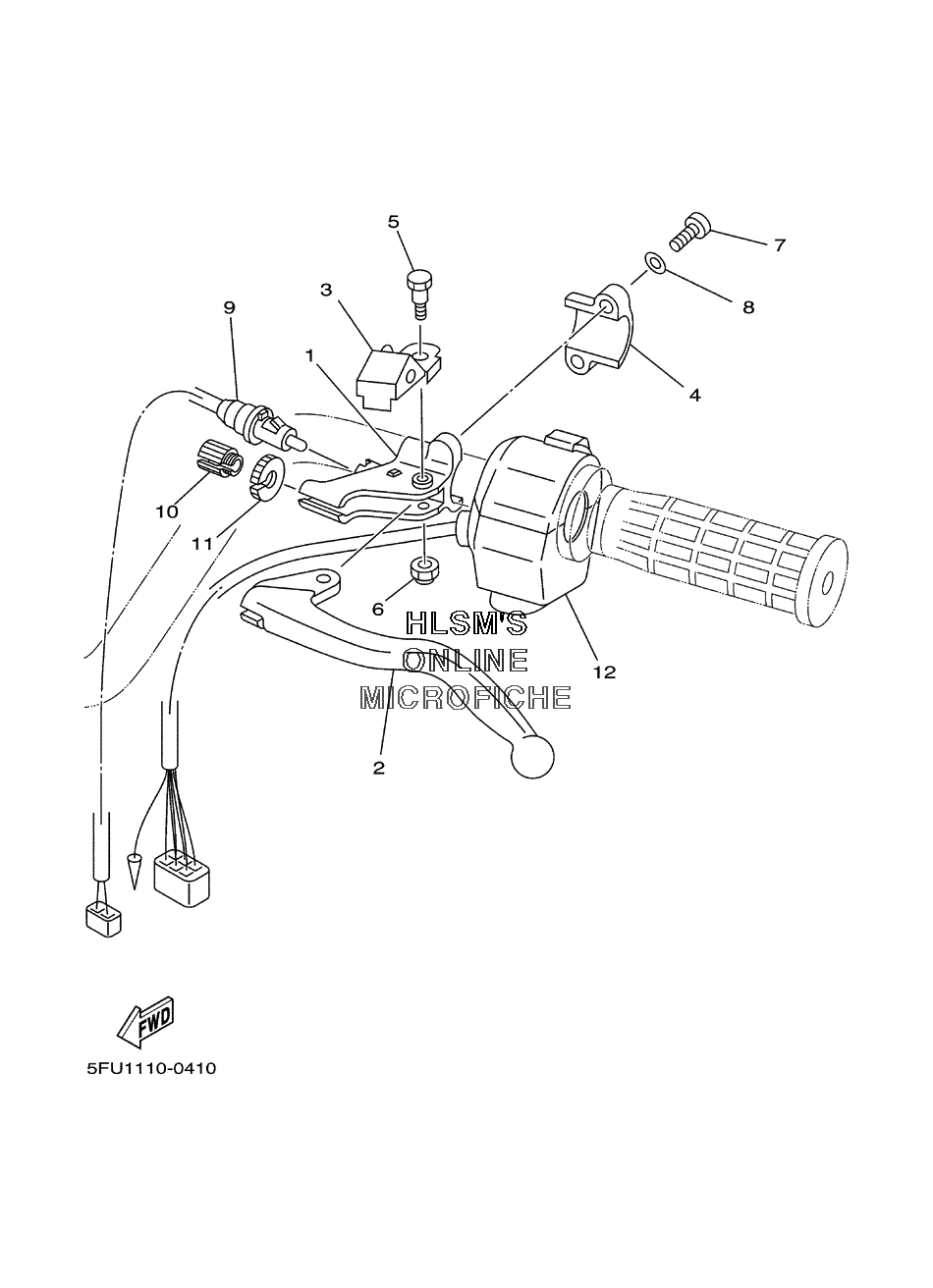

HANDLEBAR - SWITCHES/LEVERS для Yamaha BIG BEAR BUCKMASTER 4WD YFM400FWNHM (5FU5) - 2000 года выпуска`
-
№АртикулНазвание
-
11YW-82911-01-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22HT-83912-00-00 LEVER 1LEVER 1
-
31YW-83965-00-00 LEVER, LOCKLEVER, LOCK
-
42XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
590109-06576-00 BOLTBOLT
-
695607-06100-00 NUT, UNUT, U
-
798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
95FU-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1090123-08046-00 BOLTBOLT
-
1190179-08148-00 NUTNUT
-
125GH-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
