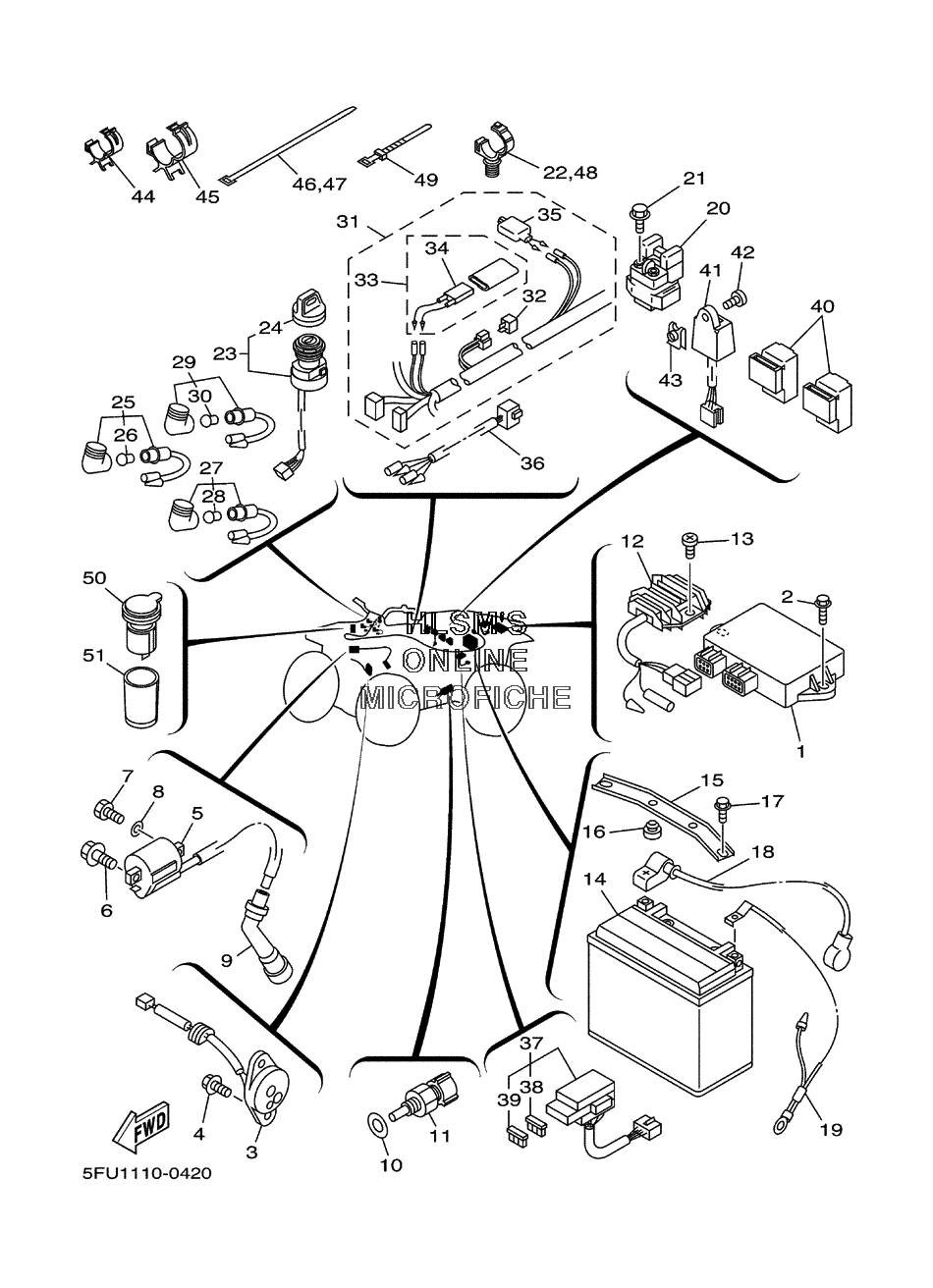

ELECTRICAL для Yamaha BIG BEAR BUCKMASTER 4WD YFM400FWNHM (5FU5) - 2000 года выпуска`
-
№АртикулНазвание
-
15FU-85540-00-00 C.D.I...UNIT ASSYC.D.I...UNIT ASSY
-
295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34KB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55FU-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
690109-06873-00 BOLTBOLT
-
797007-06020-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
9371-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1090201-12172-00 WASHER, PLATEWASHER, PLATE
-
114GB-83591-10-00 THERMO UNITTHERMO UNIT
-
124KB-81960-02-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
14BTY-YTX20-LB-S0 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
155FU-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
1622W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1795807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
195FU-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
204SV-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
219502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2290464-12830-00 CLAMP (YMUS)CLAMP (YMUS)
-
234GB-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
243HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
2524W-83530-01-00 PILOT LIGHT ASSY (GREEN)PILOT LIGHT ASSY (GREEN)
-
26123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
2752G-83530-01-00 PILOT LIGHT ASSY (RED)PILOT LIGHT ASSY (RED)
-
28123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
292HR-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
30123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
315FU-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
323WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
334GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
344GB-82560-00-00 ......THERMOSWITCH ASSY......THERMOSWITCH ASSY
-
355FU-82560-00-00 ...THERMOSWITCH ASSY...THERMOSWITCH ASSY
-
365FU-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
375FU-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
3842X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
3936Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
4029U-81950-93-00 STARTER CIRCUIT RELAYSTARTER CIRCUIT RELAY
-
414SH-86510-10-00 MOTER CONTROL UNIT ASSYMOTER CONTROL UNIT ASSY
-
4298907-06016-00 SCREW, BINDSCREW, BIND
-
4390183-06053-00 NUT, SPRINGNUT, SPRING
-
4490464-20835-00 CLAMPCLAMP
-
4590464-25843-00 CLAMPCLAMP
-
4690464-48837-00 CLAMPCLAMP
-
4790464-48837-00 CLAMPCLAMP
-
4890464-12830-00 CLAMP (YMUS)CLAMP (YMUS)
-
49437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
505FU-H1920-00-00 TERMINAL ASSYTERMINAL ASSY
-
515FU-H2599-00-00 COVER, CONNECTERCOVER, CONNECTER
