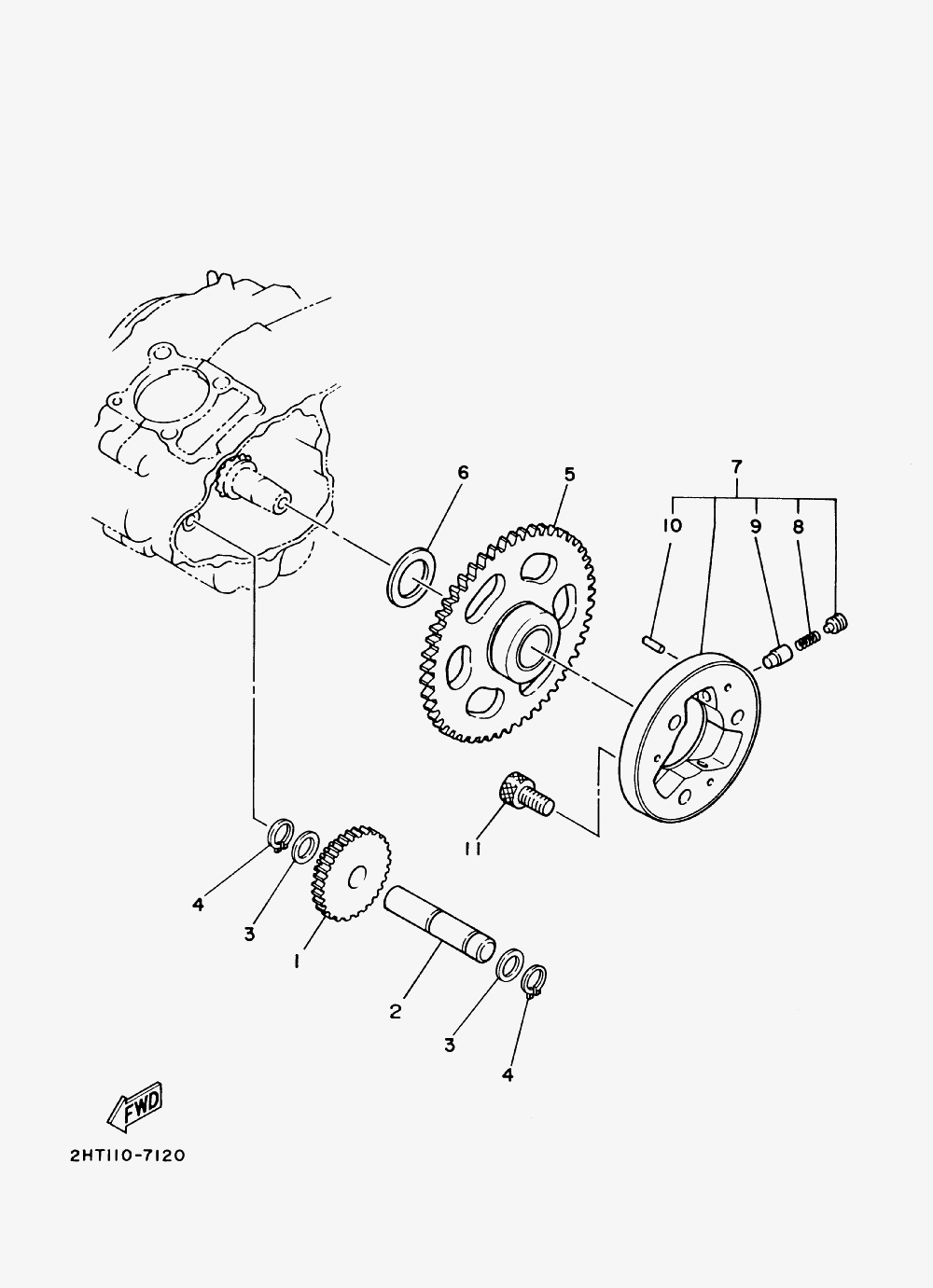

STARTER CLUTCH для Yamaha BEARTRACKER 2WD YFM250MC CALIFORNIA (4XE6) - 2000 года выпуска
-
№АртикулНазвание
-
12HT-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
22HT-15521-00-00 SHAFT 1SHAFT 1
-
390201-12166-00 WASHER, PLATEWASHER, PLATE
-
499009-12400-00 CIRCLIPCIRCLIP
-
55H0-15517-00-00 GEAR, IDLER 2 (56T)GEAR, IDLER 2 (56T)
-
690201-25290-00 WASHER, PLATEWASHER, PLATE
-
74H7-15580-10-00 STARTER CLUTCH OUTER ASSYSTARTER CLUTCH OUTER ASSY
-
890501-04596-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
91J7-15583-01-00 ...CAP, STARTER CLUTCH SPRING...CAP, STARTER CLUTCH SPRING
-
1093615-12088-00 ...PIN, DOWEL...PIN, DOWEL
-
1191317-08016-00 BOLTBOLT
