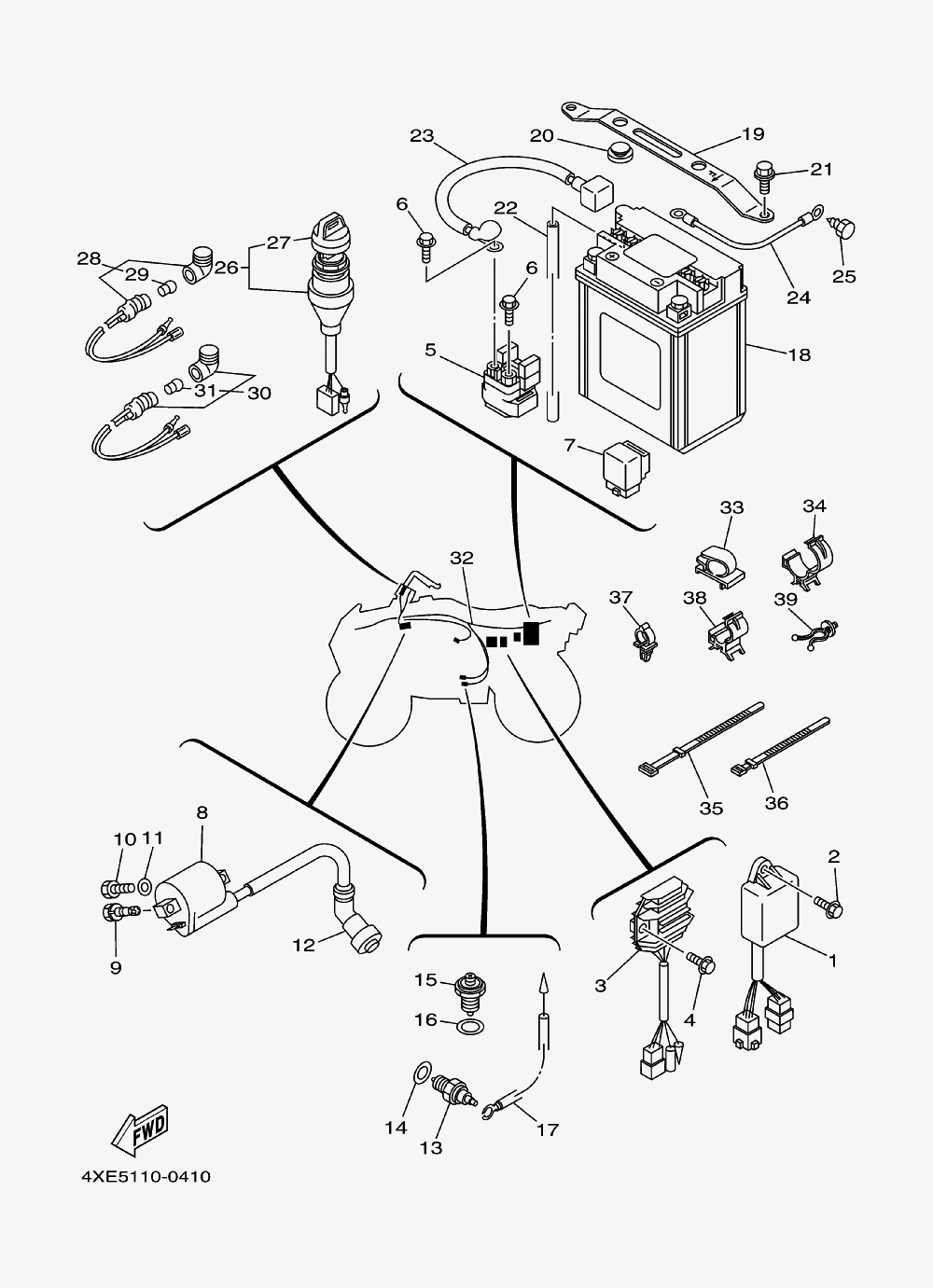

ELECTRICAL для Yamaha BEARTRACKER 2WD YFM250MC CALIFORNIA (4XE6) - 2000 года выпуска`
-
№АртикулНазвание
-
14BD-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
34KB-81960-02-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
54XE-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
69502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
71RL-81950-92-00 RELAY ASSYRELAY ASSY
-
84KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
990109-06873-00 BOLT (EXCEPT CALIF)BOLT (EXCEPT CALIF)
-
1097007-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
133GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1490430-10148-00 GASKETGASKET
-
154KD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1690201-12790-00 WASHER, PLATEWASHER, PLATE
-
174BD-82507-00-00 WIRE, LEADWIRE, LEAD
-
184XE-H2100-10-00 BATTERY ASSY (YB 14A-A2)BATTERY ASSY (YB 14A-A2)
-
194XE-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
20128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
2195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
224XE-H2112-00-00 PIPE, BREATHERPIPE, BREATHER
-
234XE-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
244XE-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
259770P-60416-00 SCREW, TAPPINGSCREW, TAPPING
-
264BD-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
273HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
2824W-83530-01-00 PILOT LIGHT ASSY (GREEN)PILOT LIGHT ASSY (GREEN)
-
29123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
3052G-83530-01-00 PILOT LIGHT ASSY (RED)PILOT LIGHT ASSY (RED)
-
31123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
324XE-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
3390464-13831-00 CLAMPCLAMP
-
3490464-20835-00 CLAMPCLAMP
-
3590464-48837-00 CLAMPCLAMP
-
363TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3790464-12830-00 CLAMPCLAMP
-
3890464-08834-00 CLAMPCLAMP
-
3990464-12836-00 CLAMPCLAMP
