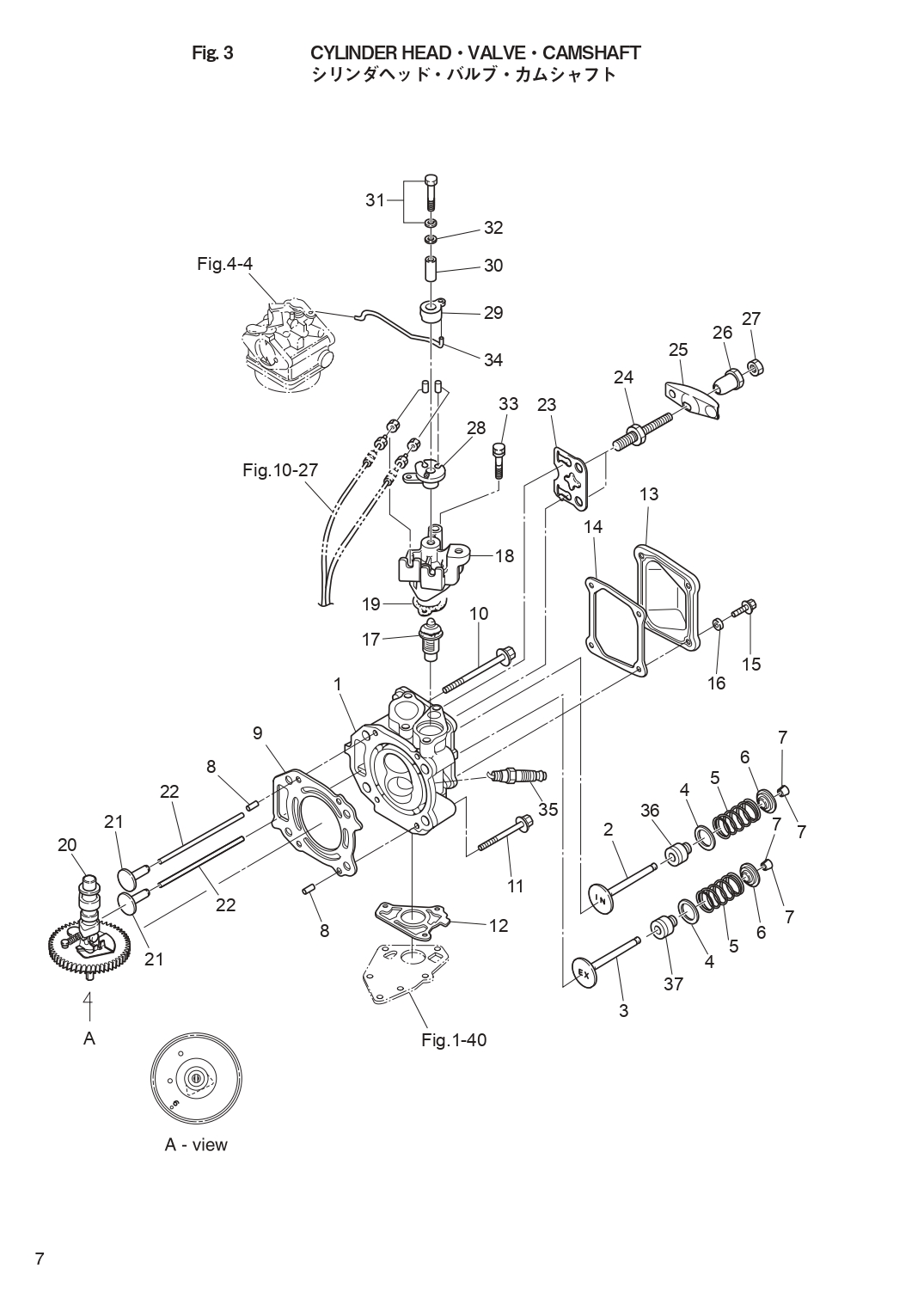

CYLINDER HEAD VALVE CAMPSHAFT для Tohatsu MFS4D - 2021 года выпуска
-
№АртикулНазвание
-
13GRB01001-1 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23GR-07901-0 INTAKE VALVEINTAKE VALVE
-
33GR-07902-0 EXHAUST VALVEEXHAUST VALVE
-
43GR-07905-0 VALVE SPRING SEATVALVE SPRING SEAT
-
53AE-07203-0 VALVE SPRING L=35VALVE SPRING L=35
-
63GT-07921-0 RETAINERRETAINER
-
73KY-07923-0 COTTERCOTTER
-
8345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
93H6-01005-1 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
103R0-01113-1 BOLT 8-90BOLT 8-90
-
113H8-01013-0 CYLINDER HEAD BOLT 8-60CYLINDER HEAD BOLT 8-60
-
123H6-02306-0 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
133H6B01021-0 CYLINDER HEAD COVERCYLINDER HEAD COVER
-
143H6-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
15910121-0616 BOLTBOLT
-
163C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
173H6-01030-0 THERMOSTAT
Mark 52B PRVTHERMOSTAT
Mark 52B PRV -
183GRB01031-0 THERMOSTAT CAPTHERMOSTAT CAP
-
19346-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
203R4-07810-2 CAMSHAFT ASSY (F6A)CAMSHAFT ASSY (F6A)
-
213H6-07231-0 LIFTERLIFTER
-
223H6-07232-0 PUSH RODPUSH ROD
-
233H6-07233-0 PLATEPLATE
-
243H6-07234-0 PIVOT BOLTPIVOT BOLT
-
253GR-07935-0 ROCKER ARMROCKER ARM
-
263H6-07236-0 PIVOTPIVOT
-
273H6-07937-0 ADJUSTING NUTADJUSTING NUT
-
283GR-63611-0 THROTTLE DRUMTHROTTLE DRUM
-
293GR-63612-0 THROTTLE OPENERTHROTTLE OPENER
-
303H6-63618-0 COLLAR 6.5-10.5-22.6COLLAR 6.5-10.5-22.6
-
31910103-6635 BOLTBOLT
-
323C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
33910103-6645 BOLTBOLT
-
343H6-63617-0 THROTTLE RODTHROTTLE ROD
-
359701-1-1103 SPARK PLUG(DCPR6E)SPARK PLUG(DCPR6E)
-
363R3-07204-0 INTAKE VALVE STEM SEALINTAKE VALVE STEM SEAL
-
373R3-07206-0 EXHAUST VALVE STEM SEALEXHAUST VALVE STEM SEAL
