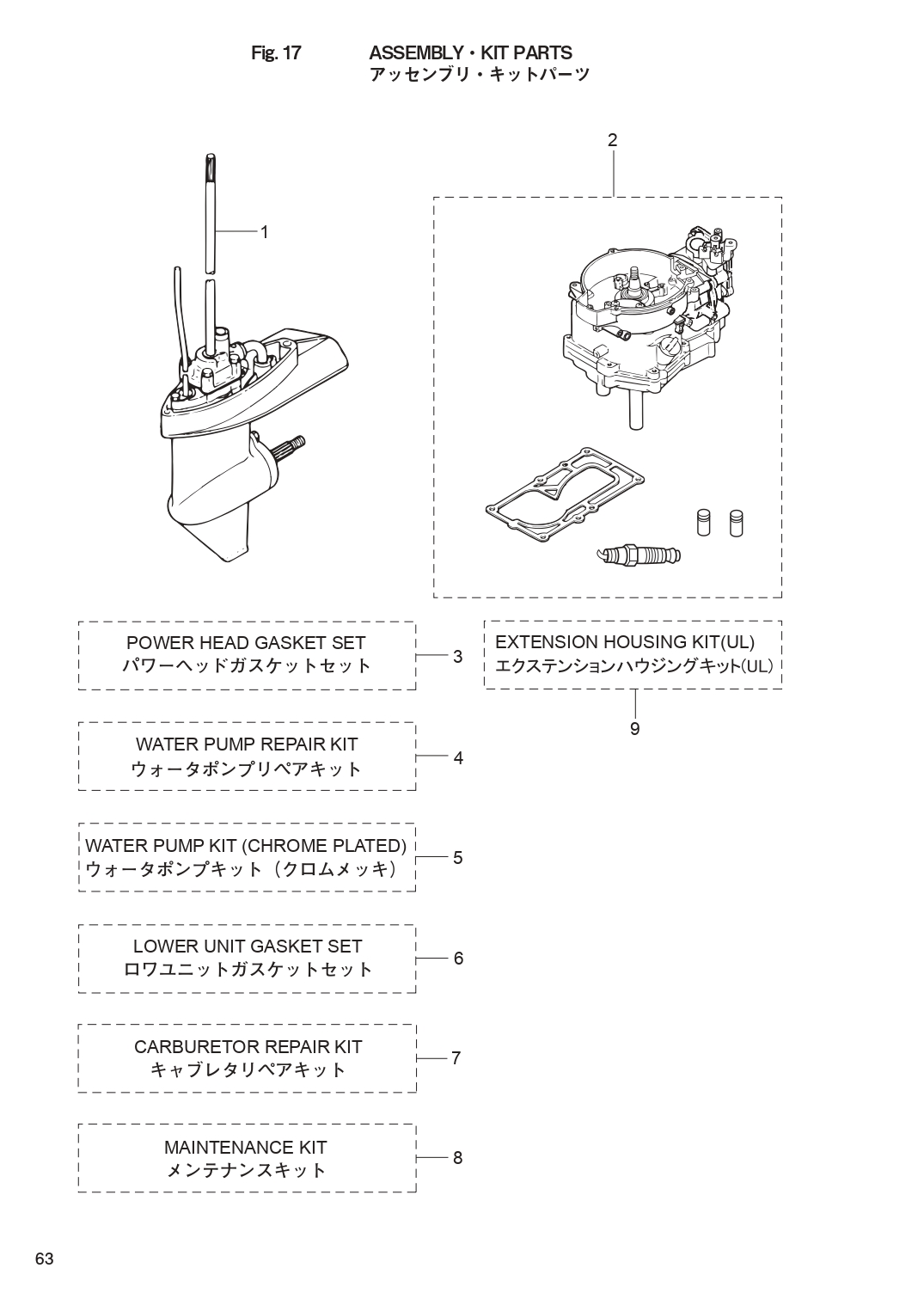

ASSEMBLY KIT PARTS для Tohatsu MFS4D - 2021 года выпуска
-
№АртикулНазвание
-
13GRQ87301-2 LOWER UNIT ASSY (S)
for Transom "s"LOWER UNIT ASSY (S)
for Transom "s" -
13GRQ87302-2 LOWER UNIT ASSY (L)
for Transom "L" STDLOWER UNIT ASSY (L)
for Transom "L" STD -
23GRB87090-7 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33AS-87121-2 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
33H6-01005-1 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
33H6-02306-0 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
33H6-01024-0 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
3346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
33AS-07432-0 * GASKET
Breather Chamber Cover* GASKET
Breather Chamber Cover -
33H6-07422-0 * O-RING 2.6-18.7
Filler Cap Fuel Pump* O-RING 2.6-18.7
Filler Cap Fuel Pump -
33AB-00121-0 * OIL SEAL 20-35-7
Upper* OIL SEAL 20-35-7
Upper -
33H6-03293-0 * O-RING
Carburetor* O-RING
Carburetor -
33H6-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
33H6-02104-0 * INTAKE MANIFOLD GASKET 2-33.5
Intake Manifold* INTAKE MANIFOLD GASKET 2-33.5
Intake Manifold -
33GR-00122-0 * OIL SEAL 25-40-8
Lower* OIL SEAL 25-40-8
Lower -
33H6-07402-0 * OILPAN GASKET* OILPAN GASKET
-
33H6-02305-0 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
33R1-07605-0 * O-RING φ3.1
Oil Pump Cover* O-RING φ3.1
Oil Pump Cover -
3345-66021-0 * O-RING 1.9-6.8
Plunger* O-RING 1.9-6.8
Plunger -
33GR-01215-0 * OIL SEAL 10.1-25-7
Crankcase Head* OIL SEAL 10.1-25-7
Crankcase Head -
33GR-01214-0 * CRANKCASE HEAD GASKET* CRANKCASE HEAD GASKET
-
33H6-61012-0 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
4369-87322-2 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
4369-65018-1 * PUMP CASE GASKET* PUMP CASE GASKET
-
4369-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
4369-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
4369-65020-0 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
49161E3-0645 * BOLT* BOLT
-
4940103-0600 * WASHER* WASHER
-
4369-65022-0 * KEY φ2-11* KEY φ2-11
-
4369-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
4369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
5369-65231-1 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
5369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
5369-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
5369-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
5369-65018-1 * PUMP CASE GASKET* PUMP CASE GASKET
-
5369-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
6369-87321-2 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
6332-60006-1 * GASKET* GASKET
-
6369-60111-0 * OIL SEAL 15-28-10
Propeller Shaft* OIL SEAL 15-28-10
Propeller Shaft -
6345-65015-0 * O-RING 3.2-47
Propeller Shaft Housing* O-RING 3.2-47
Propeller Shaft Housing -
6369-65018-1 * PUMP CASE GASKET* PUMP CASE GASKET
-
6369-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
6369-60223-0 * OIL SEAL 10-24-8
Pump Case Lower* OIL SEAL 10-24-8
Pump Case Lower -
6369-65020-0 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
6369-66021-1 * O-RING 2.5-4.9
Cam Rod* O-RING 2.5-4.9
Cam Rod -
6332-66032-0 * O-RING 2.4-15.4
Bushing* O-RING 2.4-15.4
Bushing -
73H6-87122-0 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
73H6-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
7922503-6412 * SCREW* SCREW
-
73H6-03231-0 * FLOAT* FLOAT
-
73H6-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
73H6-03240-0 * FLOAT VALVE* FLOAT VALVE
-
73H6-03244-0 * CLIP* CLIP
-
73H6-03293-0 * O-RING
Carburetor* O-RING
Carburetor -
83GR-87500-1 MAINTENANCE KITMAINTENANCE KIT
-
8332-60006-1 * GASKET* GASKET
-
8369-02230-1 * FUEL FILTER ASSY* FUEL FILTER ASSY
-
8369-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
8369-65018-1 * PUMP CASE GASKET* PUMP CASE GASKET
-
8369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
8369-65022-0 * KEY φ2-11* KEY φ2-11
-
8369-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
8369-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
83H6-07406-0 * WASHER 10.2-19-1* WASHER 10.2-19-1
-
83H6-60218-0 * ANODE* ANODE
-
8951503-0318 * SPLIT PIN 3-18* SPLIT PIN 3-18
-
89701-1-1103 * SPARK PLUG(DCPR6E)* SPARK PLUG(DCPR6E)
-
9369Q87314-4 EXTENSION HOUSING KIT (UL)EXTENSION HOUSING KIT (UL)
-
9369Q61110-2 * EXTENSION HOUSING* EXTENSION HOUSING
-
99161E3-0625 * BOLT* BOLT
-
99401E3-0600 * WASHER* WASHER
-
99152E3-0825 * STUD* STUD
-
99401E3-0800 * WASHER* WASHER
-
9930103-0800 * NUT* NUT
-
9369-64303-0 * DRIVE SHAFT ASSY (UL)* DRIVE SHAFT ASSY (UL)
-
9369-65120-0 * WATER PIPE ASSY (UL)* WATER PIPE ASSY (UL)
-
9369-66014-2 * CAM ROD (UL)* CAM ROD (UL)
