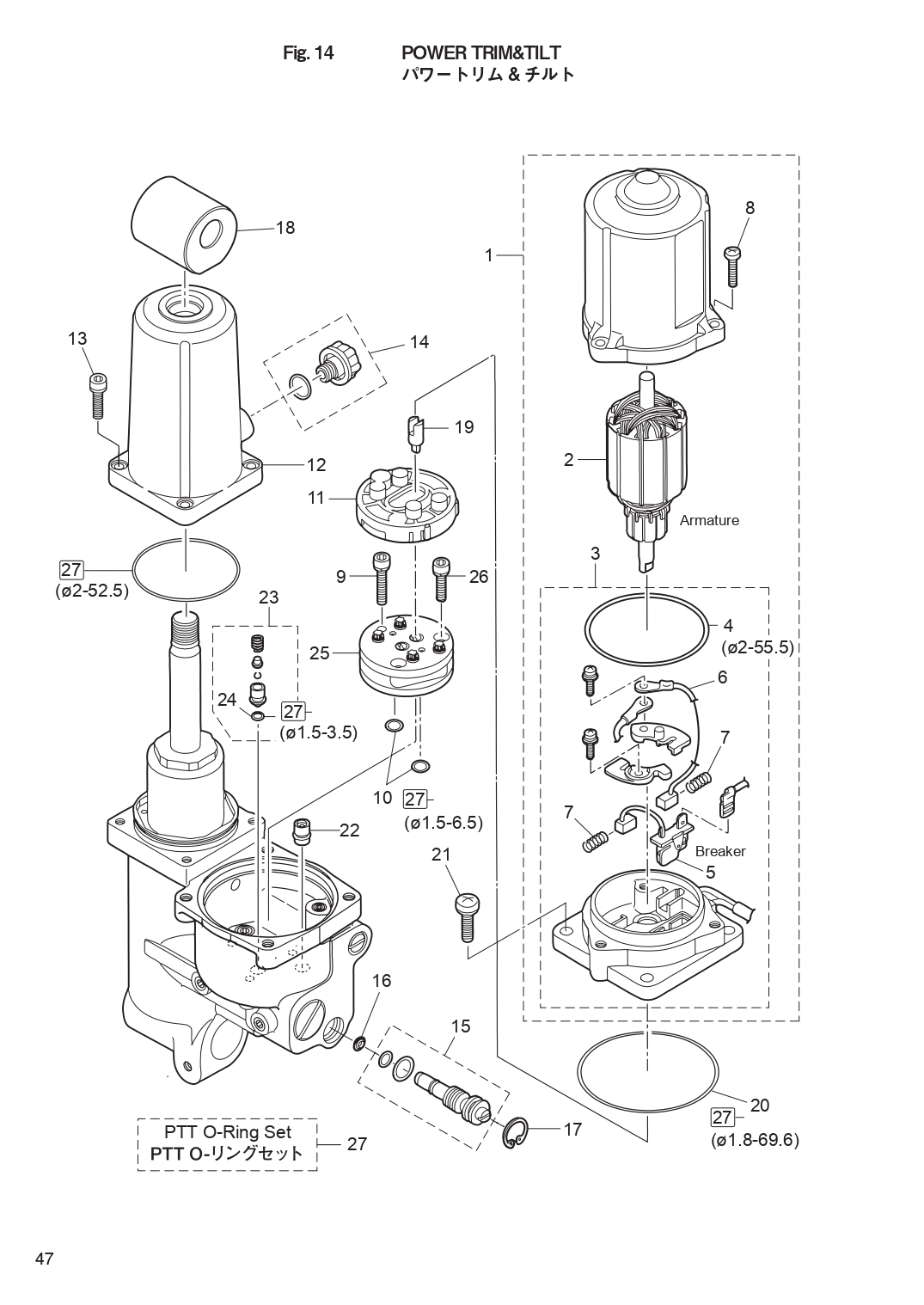

POWER TRIM AND TILT для Tohatsu MFS60A - 2020 года выпуска`
-
№АртикулНазвание
-
13Z5-77180-0 MOTOR ASSY
for PTT ModelMOTOR ASSY
for PTT Model -
23Z5-77190-0 * ARMATURE ASSY* ARMATURE ASSY
-
33Z5-77192-0 * MOTOR BRACKET ASSY* MOTOR BRACKET ASSY
-
43Z5-77182-0 ** O-RING 2-55.5** O-RING 2-55.5
-
53Z5-77191-0 ** BREAKER** BREAKER
-
63E0-77183-0 ** BRUSH** BRUSH
-
73E0-77184-0 ** BRUSH SPRING** BRUSH SPRING
-
8921503-0520 * SCREW* SCREW
-
93B7-77431-1 BOLTBOLT
-
103B7-77433-0 O-RING 1.5-6.5O-RING 1.5-6.5
-
113B7-77434-1 FILTERFILTER
-
123Z5-77165-1 RESERVE TANKRESERVE TANK
-
133Z5-77159-0 BOLTBOLT
-
143Z5-77221-0 CAP ASSYCAP ASSY
-
153Z5-77175-0 MANUAL VALVE ASSYMANUAL VALVE ASSY
-
163R0-77173-0 SEAL WASHERSEAL WASHER
-
173Z5-77171-0 C-RINGC-RING
-
183Z5-77367-0 JOINTJOINT
-
193Z5-77166-0 COUPLINGCOUPLING
-
203B7-77167-0 O-RING 1.8-69.6O-RING 1.8-69.6
-
213Z5-77194-0 SCREWSCREW
-
223Z5-77460-0 VALVE ASSYVALVE ASSY
-
233Z5-77450-0 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
243R0-77451-0 * O-RING 1.5-3.5* O-RING 1.5-3.5
-
253B7-77430-0 PUMPPUMP
-
263B7-77432-1 BOLTBOLT
-
273Z5-77225-0 PTT O-RING SETPTT O-RING SET
Все узлы модели:
- ASSEMBLY KIT PARTS
- RIGGIN KIT (2)
- RIGGIN KIT (1)
- OPTIONAL PARTS (2)
- OPTIONAL PARTS (1)
- OPTIONAL PARTS ACCESSORIES
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- COMPONENT PARTS OF REMOTE CONTROL
- MULTI TILLER HANDLE
- FUEL TANK
- TOP COWL
- STEERING
- SHIFT THROTTLE
- • POWER TRIM AND TILT
- BOTTOM COWL
- BRACKET
- GEAR CASE (PROPELLER SHAFT)
- GEAR CASE (DRIVE SHAFT)
- DRIVE SHAFT (HOUSING)
- ELECTRIC PARTS
- ELECTRIC PARTS (STARTER MOTOR)
- MAGNETO
- FUEL SYSTEM
- INTAKE MAINFOLD
- PULLEY TIMING BELT
- CYLINDER HEAD OIL PUMP
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
