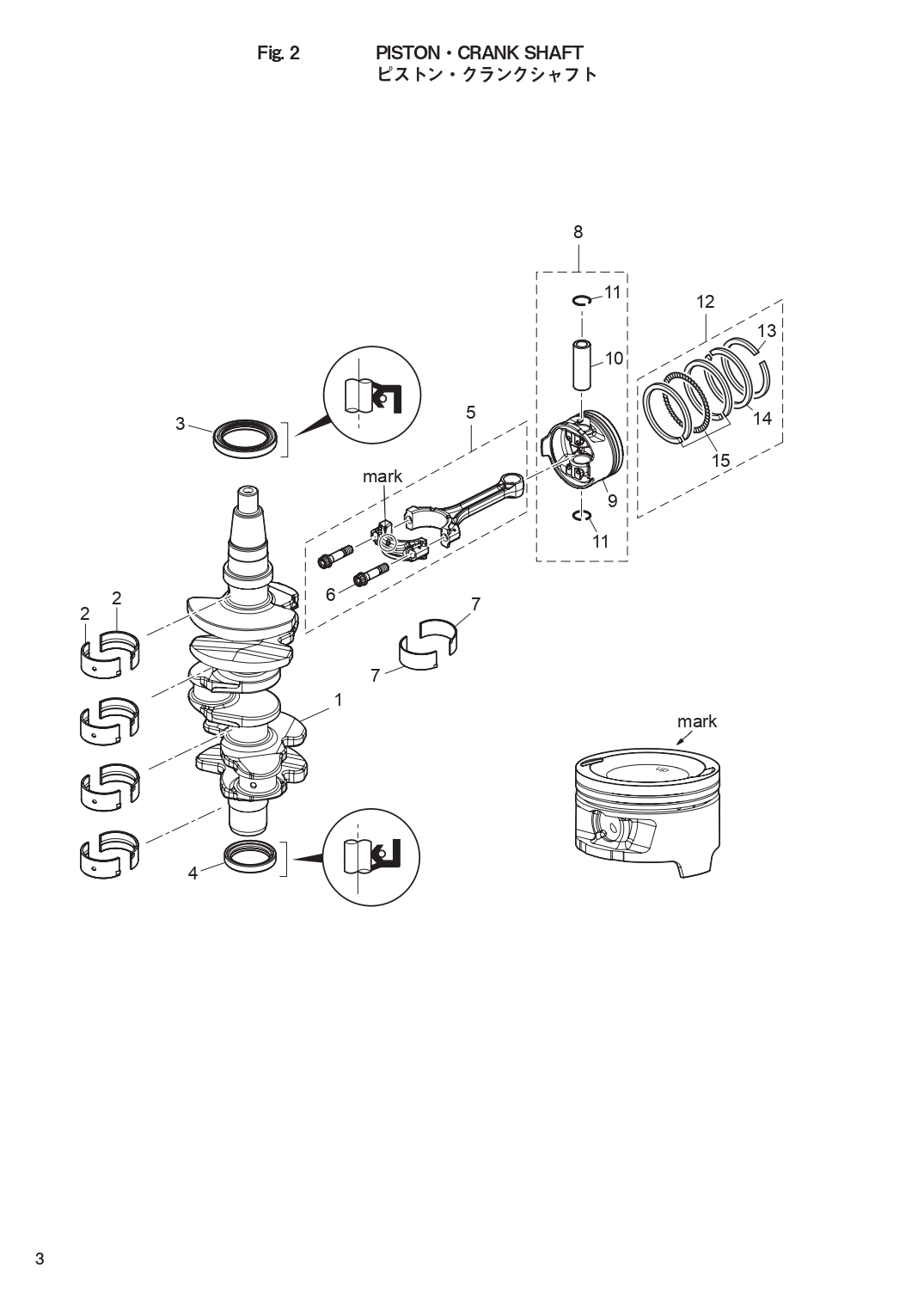

PISTON CRANK SHAFT для Tohatsu MFS60A - 2020 года выпуска`
-
№АртикулНазвание
-
13KY-00030-1 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23KY-07707-0 PLAIN SHAFT BEARING
Brown see Service ManualPLAIN SHAFT BEARING
Brown see Service Manual -
23KY-07708-0 PLAIN SHAFT BEARING
Black see Service ManualPLAIN SHAFT BEARING
Black see Service Manual -
23KY-07750-0 PLAIN SHAFT BEARING
Blue see Service ManualPLAIN SHAFT BEARING
Blue see Service Manual -
33KY-00122-0 OIL SEAL 50-68-9
UpperOIL SEAL 50-68-9
Upper -
43KY-00121-0 OIL SEAL 38-50-8
LowerOIL SEAL 38-50-8
Lower -
53KY-00040-0 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
63KY-00059-0 * CONNECTING ROD BOLT* CONNECTING ROD BOLT
-
73KY-00080-0 BIG END BEARING（Brown)
Brown see Service ManualBIG END BEARING（Brown)
Brown see Service Manual -
73KY-00081-0 BIG END BEARING（Black)
Black see Service ManualBIG END BEARING（Black)
Black see Service Manual -
73KY-00082-0 BIG END BEARING（Blue)
Blue see Service ManualBIG END BEARING（Blue)
Blue see Service Manual -
83UR-87130-0 PISTON REPAIR KITPISTON REPAIR KIT
-
83UR-87131-0 PISTON REPAIR KIT (0.5 O/S)PISTON REPAIR KIT (0.5 O/S)
-
93UR-00001-0 * PISTON* PISTON
-
93UR-00004-0 * PISTON (0.5 O/S)* PISTON (0.5 O/S)
-
103KY-00021-0 * PISTON PIN* PISTON PIN
-
113LC-00024-0 * PISTON PIN CLIP* PISTON PIN CLIP
-
123KY-87123-0 PISTON RING SET φ70
STDPISTON RING SET φ70
STD -
123KY-87124-0 PISTON RING SET (0.5 O/S) φ70.5(OS)
OPTPISTON RING SET (0.5 O/S) φ70.5(OS)
OPT -
133KY-00011-0 * PISTON RING
1st STD* PISTON RING
1st STD -
133KY-00014-0 * PISTON RING (0.5 O/S) φ70.5(OS)
1st OPT* PISTON RING (0.5 O/S) φ70.5(OS)
1st OPT -
143KY-00012-0 * PISTON RING
2nd STD* PISTON RING
2nd STD -
143KY-00015-0 * PISTON RING (0.5 O/S) φ70.5(OS)
2nd OPT* PISTON RING (0.5 O/S) φ70.5(OS)
2nd OPT -
153KY-00013-0 * PISTON RING-OIL
Oil STD* PISTON RING-OIL
Oil STD -
153KY-00016-0 * PISTON RING-OIL (0.5 O/S) φ70.5(OS)
Oil OPT* PISTON RING-OIL (0.5 O/S) φ70.5(OS)
Oil OPT
