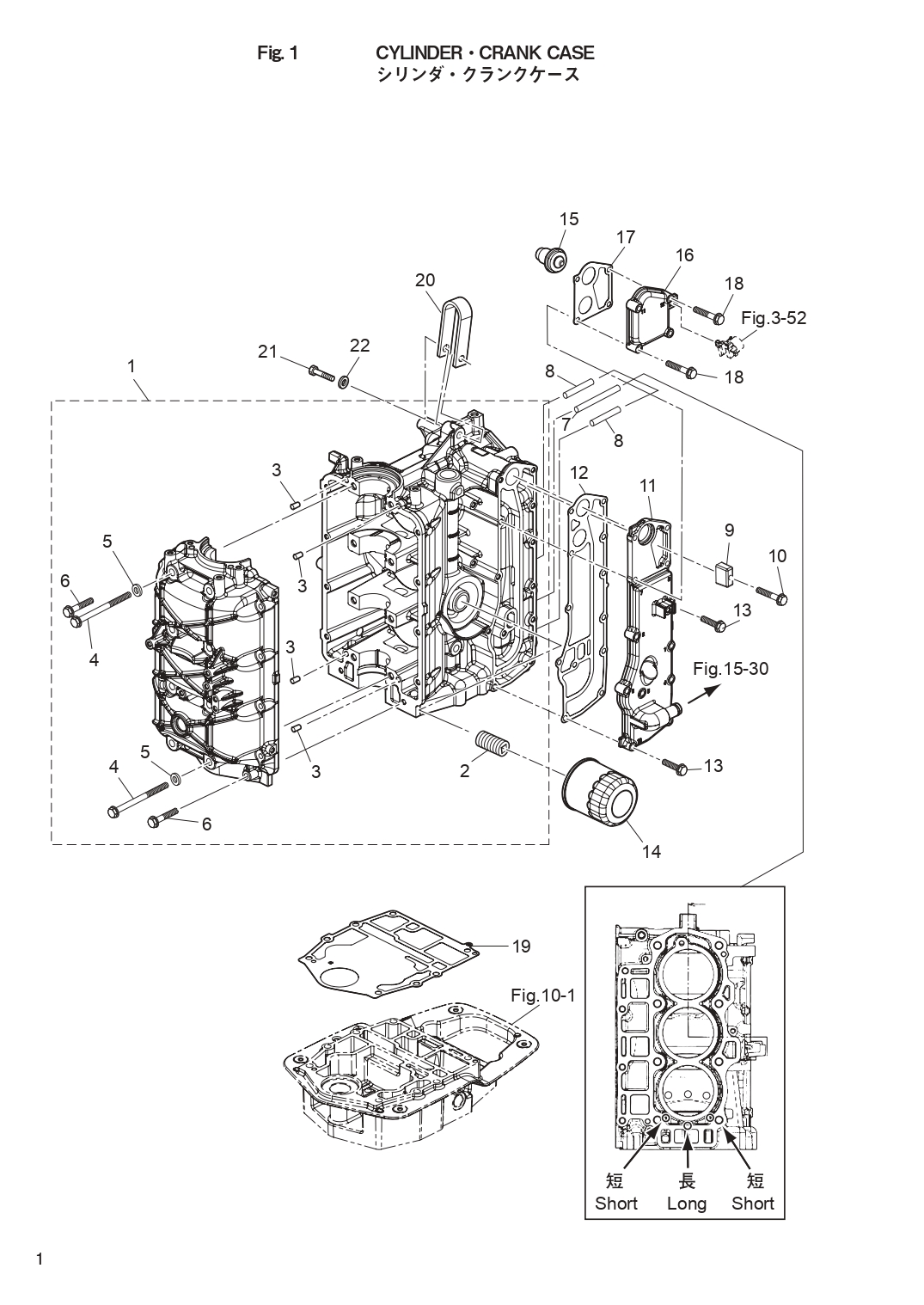

CYLINDER CRANK CASE для Tohatsu MFS60A - 2020 года выпуска`
-
№АртикулНазвание
-
13KYB01100-0 CYL BLOCK & CRANKCASE ASSYCYL BLOCK & CRANKCASE ASSY
-
23H8-07636-0 * OIL FILTER BOLT* OIL FILTER BOLT
-
3345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
43R0-01113-1 * BOLT 8-90* BOLT 8-90
-
5940103-0800 * WASHER* WASHER
-
63KY-01114-0 * BOLT M6-35* BOLT M6-35
-
73KY-01195-0 WATER JACKET INSERT (R)
LongWATER JACKET INSERT (R)
Long -
83KY-01196-0 WATER JACKET INSERT (L) L=35
ShortWATER JACKET INSERT (L) L=35
Short -
93B7-60218-1 ANODEANODE
-
10910103-5635 BOLTBOLT
-
113KYB02300-0 EXHAUST COVER ASSYEXHAUST COVER ASSY
-
123KY-02305-0 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
139101E3-5625 BOLTBOLT
-
143BJ-07615-0 OIL FILTEROIL FILTER
-
153KY-01030-0 THERMOSTAT
Mark 60THERMOSTAT
Mark 60 -
163KYB01031-0 THERMOSTAT CAPTHERMOSTAT CAP
-
173KY-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
189101E3-5635 BOLTBOLT
-
193KY-01303-0 ENGINE BASEMENT GASKETENGINE BASEMENT GASKET
-
203KY-01513-0 HANGERHANGER
-
21910114-0835 BOLTBOLT
-
22940103-0800 WASHERWASHER
-
13KYB01100-0 CYL BLOCK & CRANKCASE ASSYCYL BLOCK & CRANKCASE ASSY
