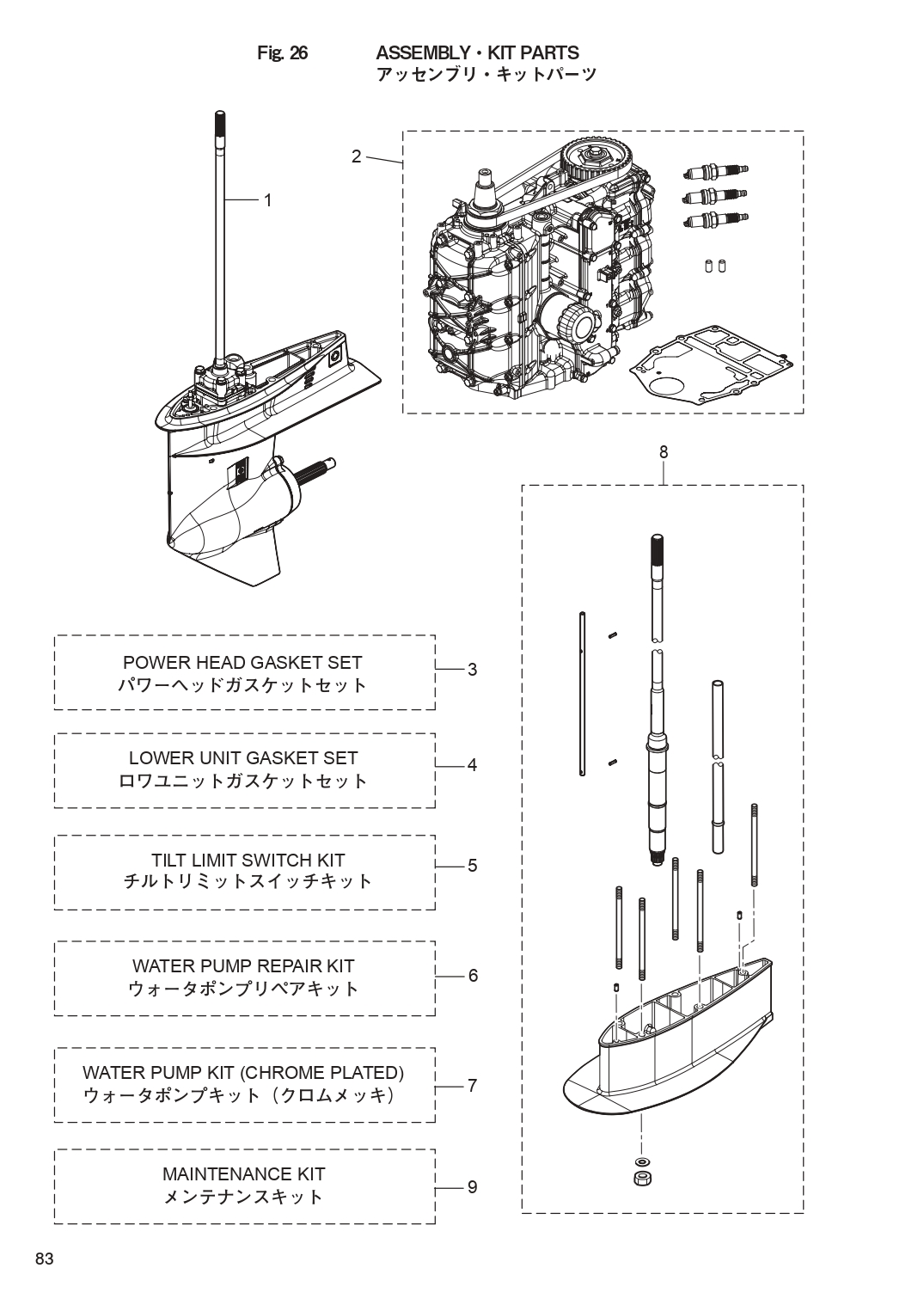

ASSEMBLY KIT PARTS для Tohatsu MFS60A - 2020 года выпуска`
-
№АртикулНазвание
-
13NRQ87302-4 LOWER UNIT ASSY (L)LOWER UNIT ASSY (L)
-
13KYQ87304-4 LOWER UNIT ASSY (UL)LOWER UNIT ASSY (UL)
-
13NRW87302-4 LOWER UNIT ASSY (L)
for White ModelLOWER UNIT ASSY (L)
for White Model -
23URB87090-0 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33UR-87121-0 * POWER HEAD GASKET SET* POWER HEAD GASKET SET
-
33KY-02305-0 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
33KY-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
33KY-00122-0 * OIL SEAL 50-68-9* OIL SEAL 50-68-9
-
33KY-00121-0 * OIL SEAL 38-50-8* OIL SEAL 38-50-8
-
33V1-00121-0 * OIL SEAL 30-45-8* OIL SEAL 30-45-8
-
33R3-07204-0 * INTAKE VALVE STEM SEAL* INTAKE VALVE STEM SEAL
-
33R3-07206-0 * EXHAUST VALVE STEM SEAL* EXHAUST VALVE STEM SEAL
-
33KY-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
33T5-10046-0 * O-RING 1.9-13* O-RING 1.9-13
-
33KY-01005-0 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
33KY-01024-0 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
33R0-07422-0 * O-RING 3.1-24.4* O-RING 3.1-24.4
-
33KY-01303-0 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
3346-01215-0 * OIL SEAL 16-28-6* OIL SEAL 16-28-6
-
33KY-61012-0 * DRIVE SHAFT HOUSING GASKET t=0.5* DRIVE SHAFT HOUSING GASKET t=0.5
-
43KY-87321-0 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
4332-60006-1 * GASKET 8.1-15-1
Oil Plug* GASKET 8.1-15-1
Oil Plug -
43KY-60103-0 * O-RING
Propeller Shaft Housing* O-RING
Propeller Shaft Housing -
43F3-60223-0 * OIL SEAL 22-37-8
Propeller Shaft* OIL SEAL 22-37-8
Propeller Shaft -
4332-66021-0 * O-RING 2.4-5.8
Cam Rod* O-RING 2.4-5.8
Cam Rod -
43C8-66032-0 * O-RING 3.5-21.7
Cam Rod Bushing* O-RING 3.5-21.7
Cam Rod Bushing -
43C8-65029-3 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
43T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
4345-65015-0 * O-RING 3.2-47
Pump Case (Lower)* O-RING 3.2-47
Pump Case (Lower) -
53KY-72620-0 TILT LIMIT SWITCH KITTILT LIMIT SWITCH KIT
-
53KY-72625-0 * TILT LIMIT SWITCH* TILT LIMIT SWITCH
-
5921503-0315 * SCREW* SCREW
-
5930103-0300 * NUT* NUT
-
5940103-0300 * WASHER* WASHER
-
53KY-72626-0 * TILT LIMIT SWITCH PLATE* TILT LIMIT SWITCH PLATE
-
59101E3-5612 * BOLT* BOLT
-
53KY-72627-0 * TILT LIMIT SWITCH CAM* TILT LIMIT SWITCH CAM
-
53KY-72628-0 * TILT LIMIT CAM HOLDER* TILT LIMIT CAM HOLDER
-
53AA-66223-0 * PIN 3-25* PIN 3-25
-
5921503-0520 * SCREW* SCREW
-
63T5-87322-3 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
63C8-65021-2 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
63C8-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
63C8-65029-3 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63T5-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
63T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
69101E3-5855 * BOLT* BOLT
-
6332-65022-0 * KEY 20-4.6-2* KEY 20-4.6-2
-
73Z5-65231-1 WATER PUMP KIT (CHROME PLATED)
Chrome PlatedWATER PUMP KIT (CHROME PLATED)
Chrome Plated -
73C8-65021-2 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
73C8-65029-3 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
73Z5-65238-1 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
73T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
73C8-65239-1 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
83KYQ87314-0 EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL"EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL" -
83KY-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
83KYQ61110-0 * EXTENSION HOUSING (UL)* EXTENSION HOUSING (UL)
-
83AB-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
83KY-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
8951407-0312 * SPRING PIN 3-12
Cam Rod* SPRING PIN 3-12
Cam Rod -
83KY-64303-0 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
83KY-61111-0 * STUD M10-145* STUD M10-145
-
83B7-61114-0 * NUT 10-P1.25* NUT 10-P1.25
-
89402E3-1000 * WASHER* WASHER
-
93KY-87500-0 MAINTENANCE KITMAINTENANCE KIT
-
9332-60006-1 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
9332-65022-0 * KEY 20-4.6-2* KEY 20-4.6-2
-
93B7-60218-1 * ANODE* ANODE
-
93KY-60218-0 * ANODE* ANODE
-
93P0-60218-0 * ANODE* ANODE
-
93BJ-07615-0 * OIL FILTER* OIL FILTER
-
93C8-65021-2 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
93C8-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
93C8-65029-3 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
93KY-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
93R3-07406-0 * WASHER 14.5-24-1* WASHER 14.5-24-1
-
93T5-10046-0 * O-RING 1.9-13* O-RING 1.9-13
-
93T5-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
93T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
9951503-0325 * SPLIT PIN 3-25* SPLIT PIN 3-25
-
99701-1-1121 * SPARK PLUG (IKR6G8)* SPARK PLUG (IKR6G8)
