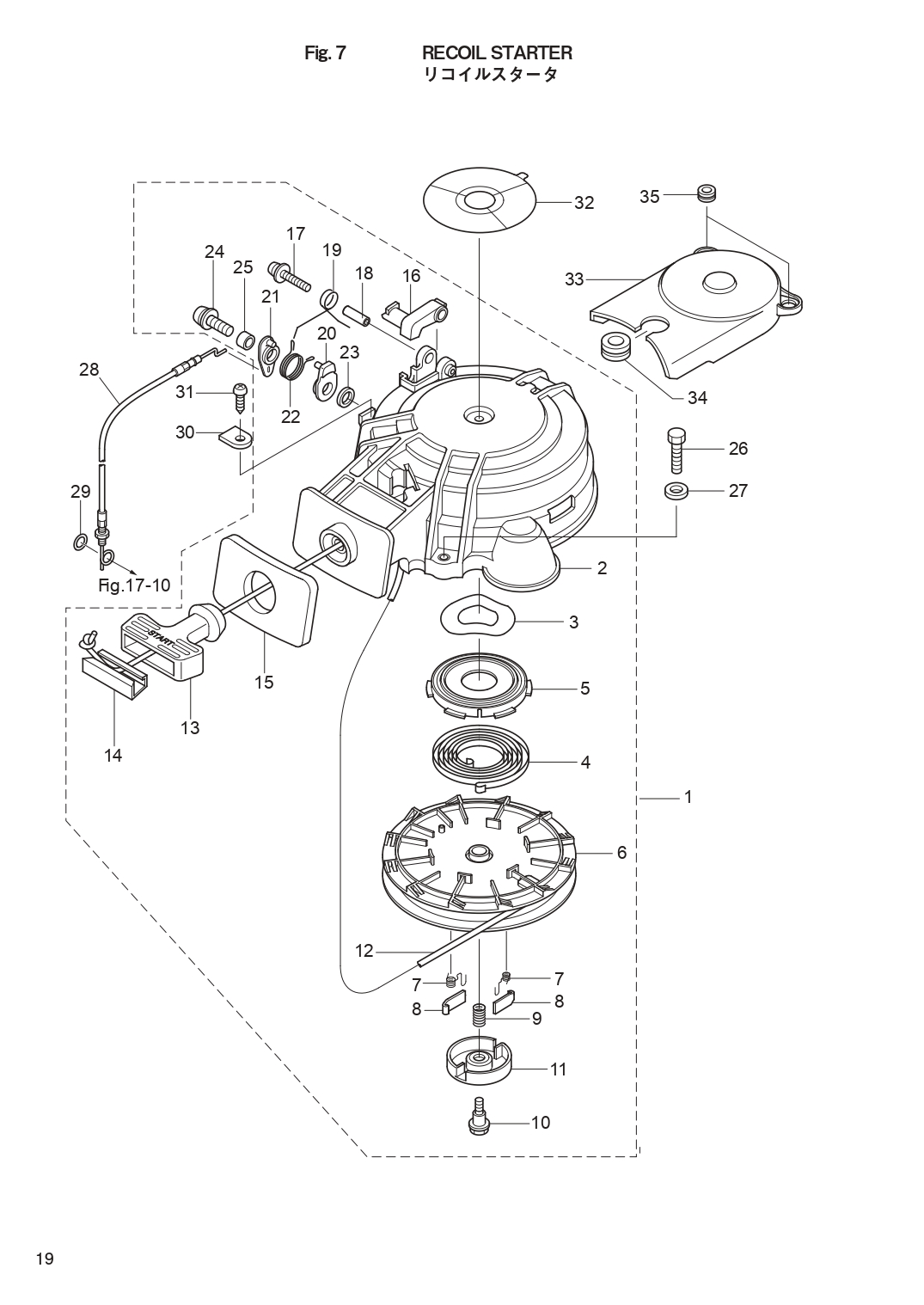

RECOIL STARTER для Tohatsu MFS6BZ - 2019 года выпуска`
-
№АртикулНазвание
-
13UA-05090-0 RECOIL STARTER ASSY 1DRECOIL STARTER ASSY 1D
-
23AA-05098-1 * STARTER CASE ASSY* STARTER CASE ASSY
-
33V1-05259-0 * WAVE WASHER* WAVE WASHER
-
43AA-05004-0 * STARTER SPRING* STARTER SPRING
-
53R1-05125-0 * STARTER SPRING CASE* STARTER SPRING CASE
-
63V1-05104-1 * REEL φ140* REEL φ140
-
73R1-05012-0 * RETURN SPRING* RETURN SPRING
-
83R1-05003-2 * RATCHET* RATCHET
-
93R1-05007-0 * FRICTION SPRING* FRICTION SPRING
-
103R1-05138-1 * BOLT 5-10-6.8-7.8* BOLT 5-10-6.8-7.8
-
113R1-05006-2 * FRICTION PLATE* FRICTION PLATE
-
123AA-05013-0 * STARTER ROPE φ4.5-1600* STARTER ROPE φ4.5-1600
-
133AA-05019-0 * STARTER HANDLE* STARTER HANDLE
-
143R1-05131-1 * ROPE ANCHOR* ROPE ANCHOR
-
153UA-67503-0 * STARTER SEAL 4S* STARTER SEAL 4S
-
163AA-05252-0 * STARTER LOCK* STARTER LOCK
-
17921503-5430 * SCREW* SCREW
-
183R1-05255-0 * COLLAR 4-6-21* COLLAR 4-6-21
-
193R1-05216-0 * STARTER LOCK SPRING* STARTER LOCK SPRING
-
203Y0-05253-0 * STARTER LOCK CAM* STARTER LOCK CAM
-
213Y0-05226-0 * STARTER LOCK LEVER* STARTER LOCK LEVER
-
223Y0-05258-0 * STARTER LOCK CAM SPRING* STARTER LOCK CAM SPRING
-
23940103-0600 * WASHER* WASHER
-
24921503-5625 * SCREW* SCREW
-
253R0-06303-1 * COLLAR 6.2-9-12.3* COLLAR 6.2-9-12.3
-
263V2-60108-0 PRE-COATED BOLT 6-25PRE-COATED BOLT 6-25
-
273C8-66308-0 WASHER 6-16-1.5
for MF TypeWASHER 6-16-1.5
for MF Type -
273C8-66308-0 WASHER 6-16-1.5
for EF/EP TypeWASHER 6-16-1.5
for EF/EP Type -
283Y0-05207-0 STARTER LOCK WIRESTARTER LOCK WIRE
-
293C7-03271-2 O-RING 1.5-2.5O-RING 1.5-2.5
-
30332-66033-0 STOPPERSTOPPER
-
313V1-05913-0 TAPPING SCREW 5-12TAPPING SCREW 5-12
-
323PA-72181-1 CAUTION DECAL (B)
for EU ModelCAUTION DECAL (B)
for EU Model -
333V1-06308-0 BELT COVERBELT COVER
-
343V1-06302-0 RUBBER MOUNT 2.5-20RUBBER MOUNT 2.5-20
-
35172-36008-0 GROMMET 13-2GROMMET 13-2
