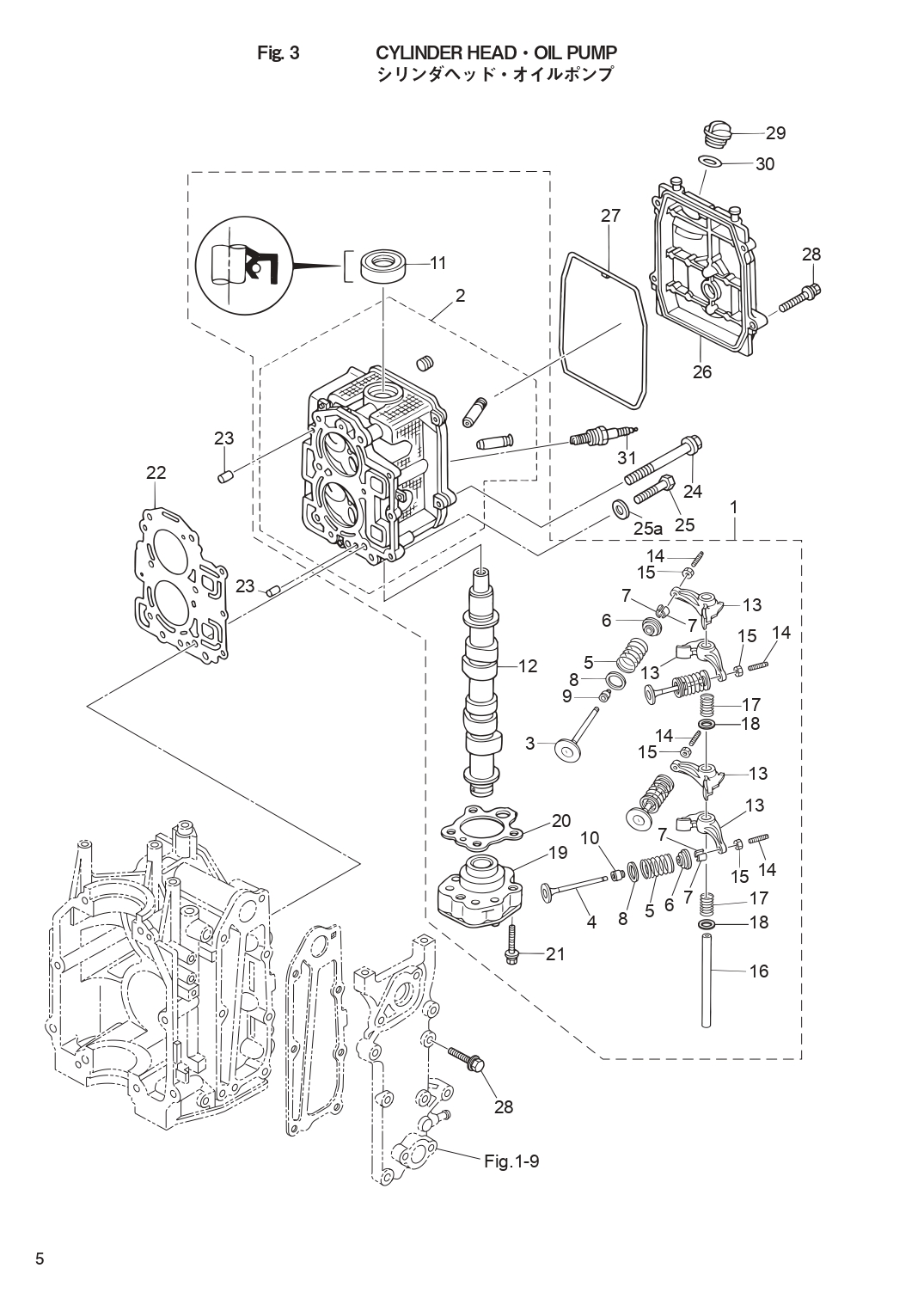

CYLINDER HEAD OIL PUMP для Tohatsu MFS6BZ - 2019 года выпуска
-
№АртикулНазвание
-
13FKB01000-2 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
23V1B01001-0 * CYLINDER HEAD ASSY* CYLINDER HEAD ASSY
-
33V1-07201-0 * INTAKE VALVE* INTAKE VALVE
-
43V1-07202-0 * EXHAUST VALVE* EXHAUST VALVE
-
53AA-07203-0 * VALVE SPRING L=38.3* VALVE SPRING L=38.3
-
63GT-07921-0 * RETAINER* RETAINER
-
73KY-07923-0 * COTTER* COTTER
-
83V1-07205-0 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
93R3-07204-0 * INTAKE VALVE STEM SEAL
Black* INTAKE VALVE STEM SEAL
Black -
103R3-07206-0 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
113H8-07025-0 * OIL SEAL 18-35-8* OIL SEAL 18-35-8
-
123FK-07810-1 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
133Y2-07935-0 * ROCKER ARM* ROCKER ARM
-
143R0-07238-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
153H8-07237-0 * ADJUSTING NUT* ADJUSTING NUT
-
163Y2-07920-0 * ROCKER ARM SHAFT* ROCKER ARM SHAFT
-
173AA-07225-0 * ROCKER SHAFT SPRING L=25* ROCKER SHAFT SPRING L=25
-
183R3-07227-0 * WASHER 13.2-21.8-2* WASHER 13.2-21.8-2
-
193V1-07600-0 * OIL PUMP ASSY* OIL PUMP ASSY
-
203V1-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
219101F4-5635 * BOLT* BOLT
-
223V1-01005-0 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
23345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
243H8-01012-1 CYLINDER HEAD BOLT 8-50CYLINDER HEAD BOLT 8-50
-
253KK-02319-0 BOLTBOLT
-
25a940103-0600 WASHERWASHER
-
263V1B01021-0 CYLINDER HEAD COVERCYLINDER HEAD COVER
-
273V1-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
289101E3-5625 BOLT
Exhaust CoverBOLT
Exhaust Cover -
28910103-5625 BOLT
Cylinder Head CoverBOLT
Cylinder Head Cover -
293R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
303R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
319701-1-1103 SPARK PLUG(DCPR6E)
NGKSPARK PLUG(DCPR6E)
NGK
