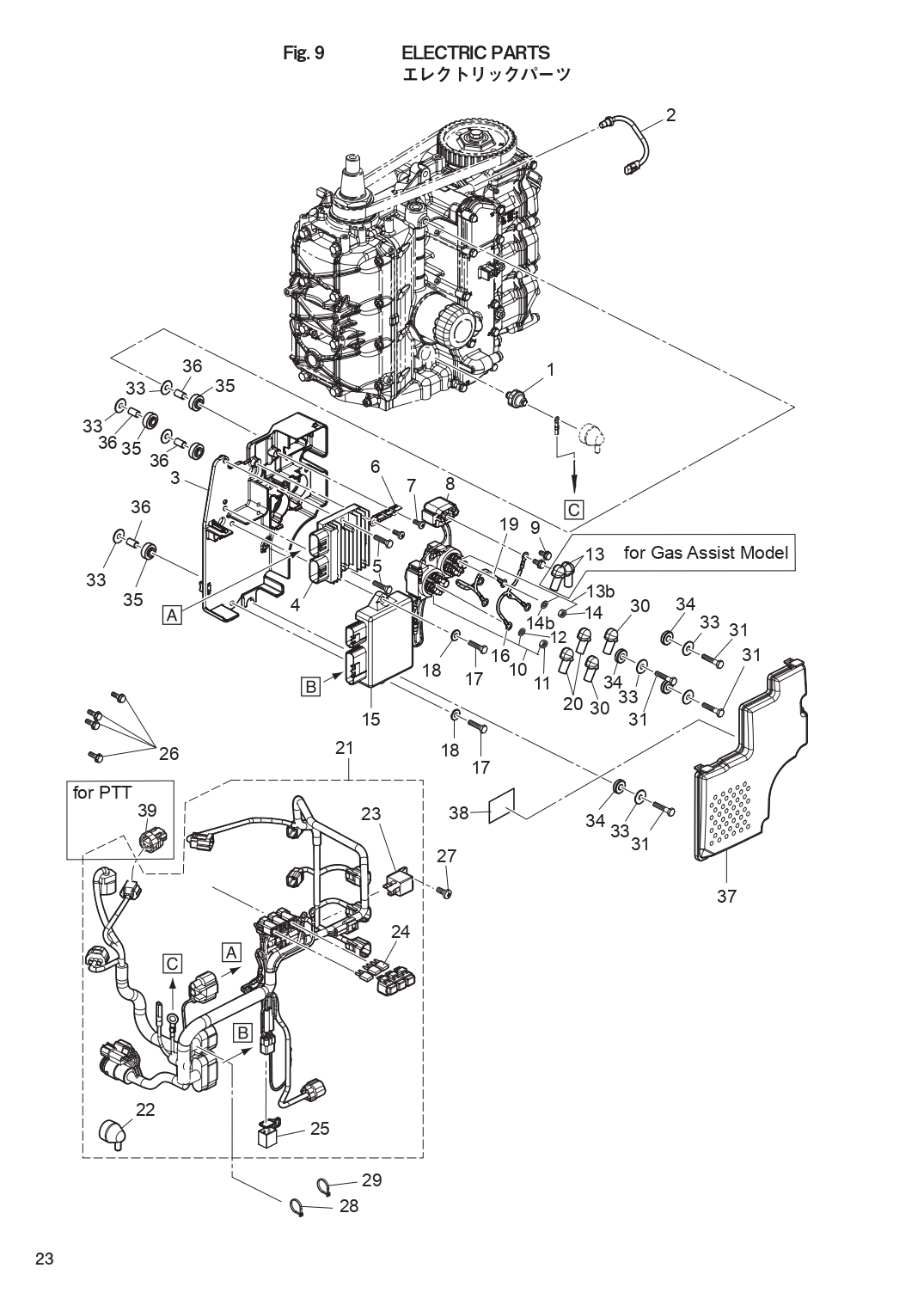

ELECTRIC PARTS для Tohatsu MFS60A - 2019 года выпуска`
-
№АртикулНазвание
-
13KY-07611-0 OIL PRESSURE SWITCH
BlackOIL PRESSURE SWITCH
Black -
23KY-72510-0 ENGINE TEMP SENSORENGINE TEMP SENSOR
-
33KY-06901-0 BRACKET
Electric BraketBRACKET
Electric Braket -
43KY-76065-0 RECTIFIER COMPLETERECTIFIER COMPLETE
-
5910103-5625 BOLTBOLT
-
63KY-76064-0 FUSE HOLDER BRACKETFUSE HOLDER BRACKET
-
7921503-0512 SCREWSCREW
-
83H8-76040-0 STARTER SOLENOIDSTARTER SOLENOID
-
9910103-5608 BOLTBOLT
-
103C8-72580-0 PTT SOLENOID SWITCH (A)
UP Side(Sb) for PTT ModelPTT SOLENOID SWITCH (A)
UP Side(Sb) for PTT Model -
11930103-0600 * NUT* NUT
-
12941303-0600 * SPRING WASHER* SPRING WASHER
-
13b3C8-72581-0 PTT SOLENOID SWITCH (B)
Down Side(P) for PTT ModelPTT SOLENOID SWITCH (B)
Down Side(P) for PTT Model -
14930103-0600 * NUT* NUT
-
14b941303-0600 * SPRING WASHER* SPRING WASHER
-
153UR-06401-0 ECU ASSYECU ASSY
-
163KY-72582-0 SOLENOID SWITCH CORD (A)
Red for PTT ModelSOLENOID SWITCH CORD (A)
Red for PTT Model -
17910103-0620 BOLTBOLT
-
183R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
193KY-72583-0 SOLENOID SWITCH CORD (B)
Black for PTT ModelSOLENOID SWITCH CORD (B)
Black for PTT Model -
203Y1-76145-0 TERMINAL CAP 8-13-28
Red for PTT ModelTERMINAL CAP 8-13-28
Red for PTT Model -
213KY-76110-2 CORD ASSYCORD ASSY
-
223KY-07612-0 * GROMMET* GROMMET
-
233T1-06330-0 * RELAY* RELAY
-
243T5-76249-0 * FUSE 30A* FUSE 30A
-
243T5-76247-0 * FUSE 20A* FUSE 20A
-
253KY-76037-0 * CABLE TERMINAL PLUG* CABLE TERMINAL PLUG
-
26910103-5612 BOLTBOLT
-
27921503-0512 SCREWSCREW
-
283T5-84398-0 BAND 104BAND 104
-
293Z0-84398-0 BAND 203BAND 203
-
303A3-76145-0 TERMINAL CAP 8-13-28
Black for PTT ModelTERMINAL CAP 8-13-28
Black for PTT Model -
31910103-0630 BOLTBOLT
-
33346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
34346-67113-0 MOUNT 8.5-14-2.5
In SideMOUNT 8.5-14-2.5
In Side -
353B7-06920-0 RUBBER MOUNT 8.5-14-2.5
Out SideRUBBER MOUNT 8.5-14-2.5
Out Side -
36346-67114-1 SPACER 6.2-9-15.7SPACER 6.2-9-15.7
-
373KY-06902-0 COVERCOVER
-
383KY-72028-0 WIRING DIAGRAM DECALWIRING DIAGRAM DECAL
