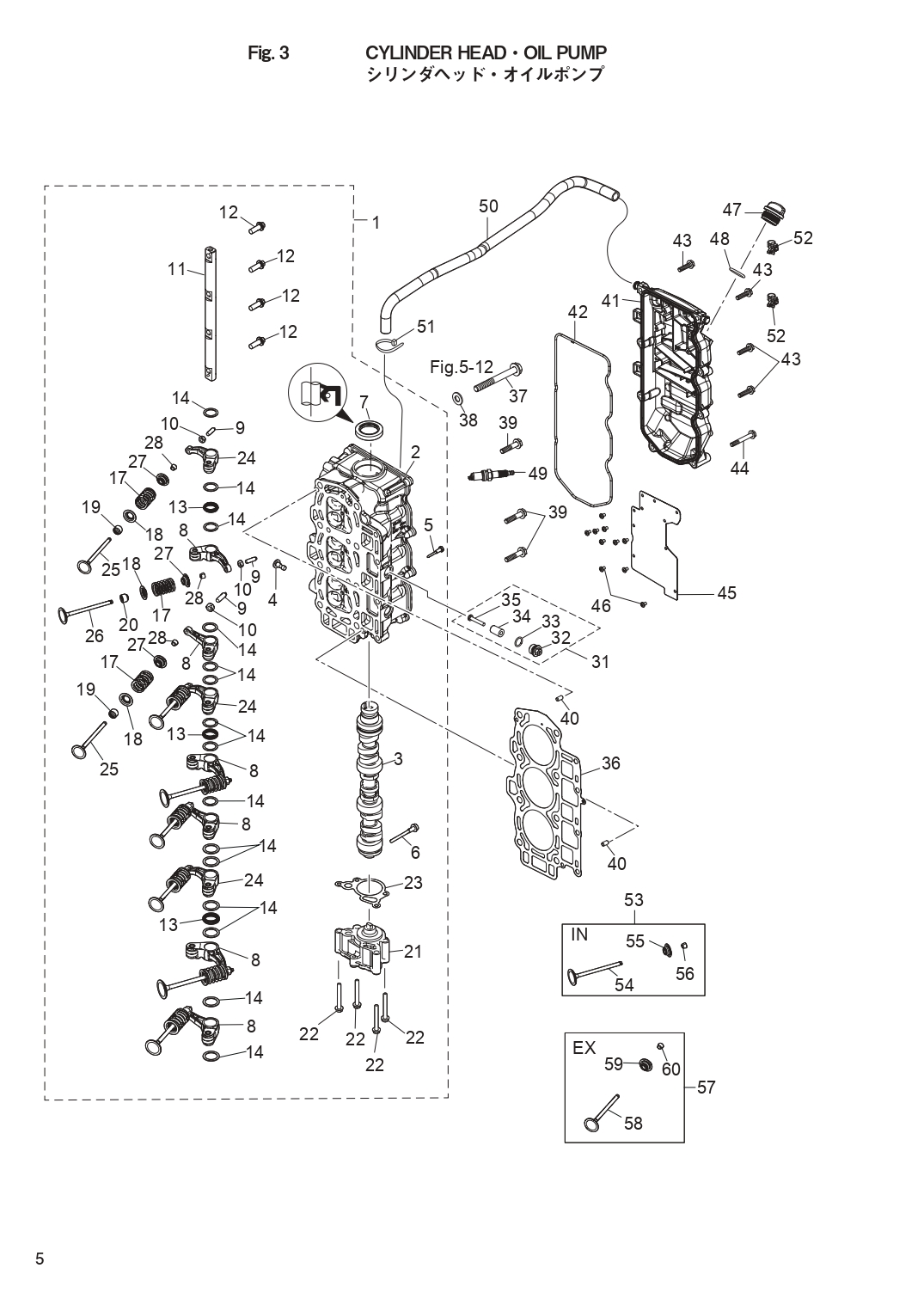

CYLINDER HEAD OIL PUMP для Tohatsu MFS60A - 2019 года выпуска
-
№АртикулНазвание
-
13URB01000-0 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
23URB01001-0 * CYLINDER HEAD ASSY* CYLINDER HEAD ASSY
-
33UR-07810-0 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
43KY-07960-0 * LIFTER* LIFTER
-
53KY-07962-0 * LIFTER BOLT* LIFTER BOLT
-
63KY-07950-0 * THRUST BOLT* THRUST BOLT
-
73V1-00121-0 * OIL SEAL 30-45-8* OIL SEAL 30-45-8
-
83WA-07935-0 * ROCKER ARM* ROCKER ARM
-
93R0-07238-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
103H8-07237-0 * ADJUSTING NUT* ADJUSTING NUT
-
113UR-07920-0 * ROCKER ARM SHAFT* ROCKER ARM SHAFT
-
123UR-07922-0 * ROCKER SHAFT BOLT* ROCKER SHAFT BOLT
-
133UR-07925-0 * ROCKER SHAFT SPRING* ROCKER SHAFT SPRING
-
143UR-07927-0 * WASHER* WASHER
-
173KY-07903-0 * VALVE SPRING* VALVE SPRING
-
183KY-07905-0 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
193R3-07204-0 * INTAKE VALVE STEM SEAL* INTAKE VALVE STEM SEAL
-
203R3-07206-0 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
213KY-07600-0 * OIL PUMP ASSY* OIL PUMP ASSY
-
22910103-5650 * BOLT* BOLT
-
233KY-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
243UR-07935-0 * ROCKER ARM* ROCKER ARM
-
253UR-07901-0 * INTAKE VALVE* INTAKE VALVE
-
263KY-07902-0 * EXHAUST VALVE φ28* EXHAUST VALVE φ28
-
273KY-07921-0 * RETAINER* RETAINER
-
283KY-07923-0 * COTTER* COTTER
-
313KM-01142-0 ANODE PLUG ASSYANODE PLUG ASSY
-
323P0-01143-0 * ANODE PLUG* ANODE PLUG
-
333T5-10046-0 * O-RING 1.9-13* O-RING 1.9-13
-
343P0-60218-0 * ANODE* ANODE
-
35921503-0530 * SCREW* SCREW
-
363KY-01005-0 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
373KY-01013-0 CYLINDER HEAD BOLT M10-90CYLINDER HEAD BOLT M10-90
-
38940221-1000 WASHERWASHER
-
393BJ-61017-1 BOLT 8-P1.25BOLT 8-P1.25
-
40345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
413KYB01020-0 CYLINDER HEAD COVER ASSYCYLINDER HEAD COVER ASSY
-
423KY-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
43910103-5625 BOLTBOLT
-
44910103-5645 BOLTBOLT
-
453KY-07731-0 BREATHER CHAMBER COVERBREATHER CHAMBER COVER
-
46921521-0408 SCREWSCREW
-
473R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
483R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
499701-1-1121 SPARK PLUG (IKR6G8)SPARK PLUG (IKR6G8)
-
503KY-07735-0 BREATHER HOSE
Cylinder Head Cover -Intake SilencerBREATHER HOSE
Cylinder Head Cover -Intake Silencer -
513T5-84398-0 BAND 104BAND 104
-
523KY-84398-0 BANDBAND
-
533UR-07895-0 INTAKE VALVE KITINTAKE VALVE KIT
-
543UR-07901-0 * INTAKE VALVE* INTAKE VALVE
-
553KY-07921-0 * RETAINER* RETAINER
-
563KY-07923-0 * COTTER* COTTER
-
573KY-07896-1 EXHAUST VALVE KITEXHAUST VALVE KIT
-
583KY-07902-0 * EXHAUST VALVE φ28* EXHAUST VALVE φ28
-
593KY-07921-0 * RETAINER* RETAINER
-
603KY-07923-0 * COTTER* COTTER
