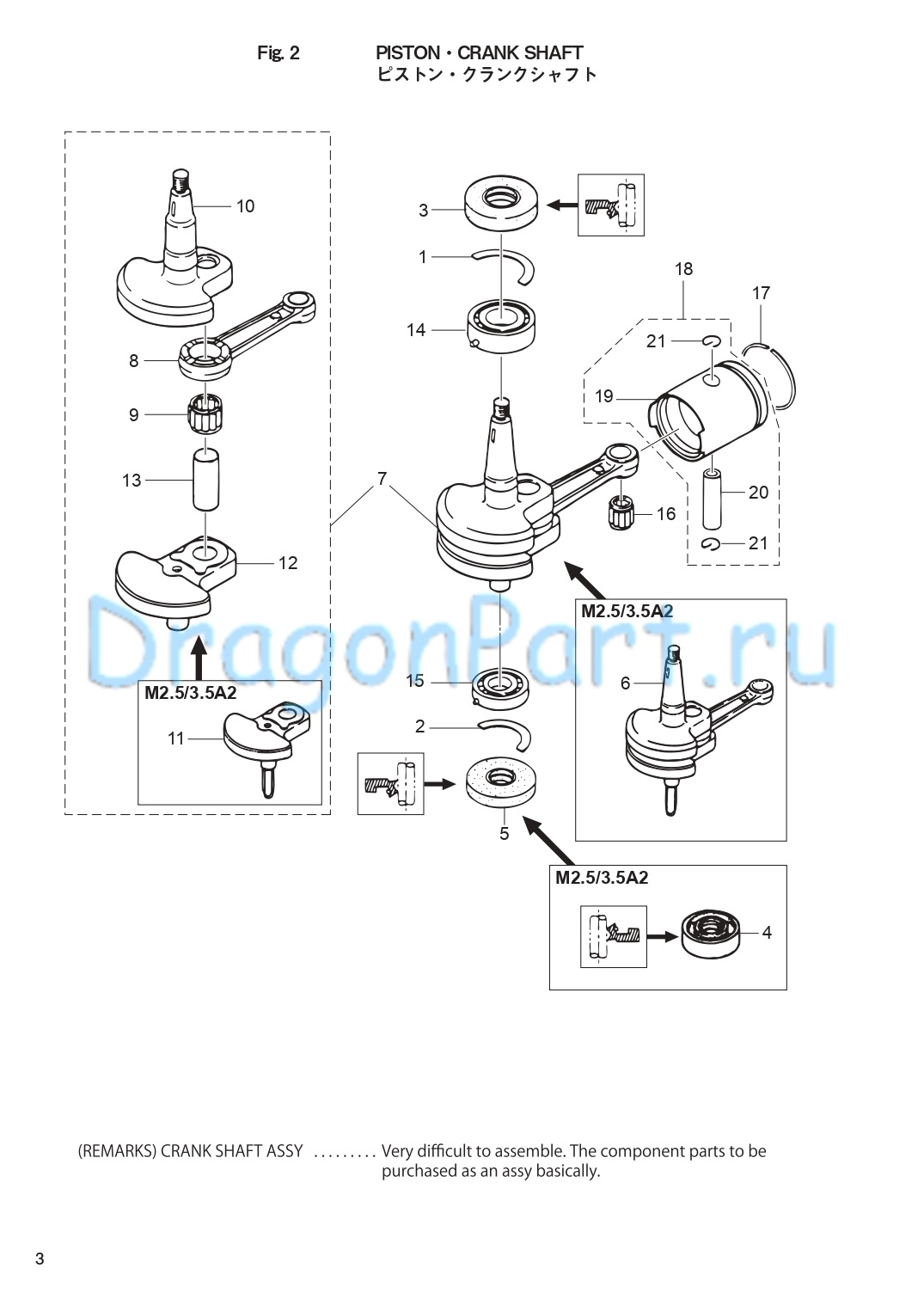

PISTON CRANK SHIFT для Tohatsu M3.5B2 - 2019 года выпуска`
-
№АртикулНазвание
-
1309-00106-0 THRUST PLATETHRUST PLATE
-
23F0-00107-0 THRUST PLATETHRUST PLATE
-
3309-00121-0 OIL SEAL 20-42-8
UpperOIL SEAL 20-42-8
Upper -
53F0-00122-0 OIL SEAL 17-40-8
LowerOIL SEAL 17-40-8
Lower -
73F0-00069-0 CRANKSHAFT SUB-ASSYCRANKSHAFT SUB-ASSY
-
8309-00040-0 * CONNECTING ROD* CONNECTING ROD
-
9309-00043-0 * ROLLER BEARING 16-22-12
Big End* ROLLER BEARING 16-22-12
Big End -
10309-00031-0 * CRANKSHAFT A* CRANKSHAFT A
-
123F0-00034-0 * CRANKSHAFT D* CRANKSHAFT D
-
13309-00061-1 * CRANK PIN* CRANK PIN
-
143F0-00113-0 MAIN BEARING 6004
UpperMAIN BEARING 6004
Upper -
159643-3-6203 BALL BEARING 6203
LowerBALL BEARING 6203
Lower -
16309-00042-0 ROLLER BEARING 10.5-14-15
Small EndROLLER BEARING 10.5-14-15
Small End -
17302-00011-0 PISTON RING
STDPISTON RING
STD -
17302-00014-0 PISTON RING (0.5 O/S)
OPTPISTON RING (0.5 O/S)
OPT -
18309-87130-0 PISTON REPAIR KIT
STDPISTON REPAIR KIT
STD -
18309-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPTPISTON REPAIR KIT (0.5 O/S)
OPT -
19309-00001-1 * PISTON
STD* PISTON
STD -
19309-00004-1 * PISTON (0.5 O/S)
OPT* PISTON (0.5 O/S)
OPT -
20309-00021-1 * PISTON PIN* PISTON PIN
-
21309-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
