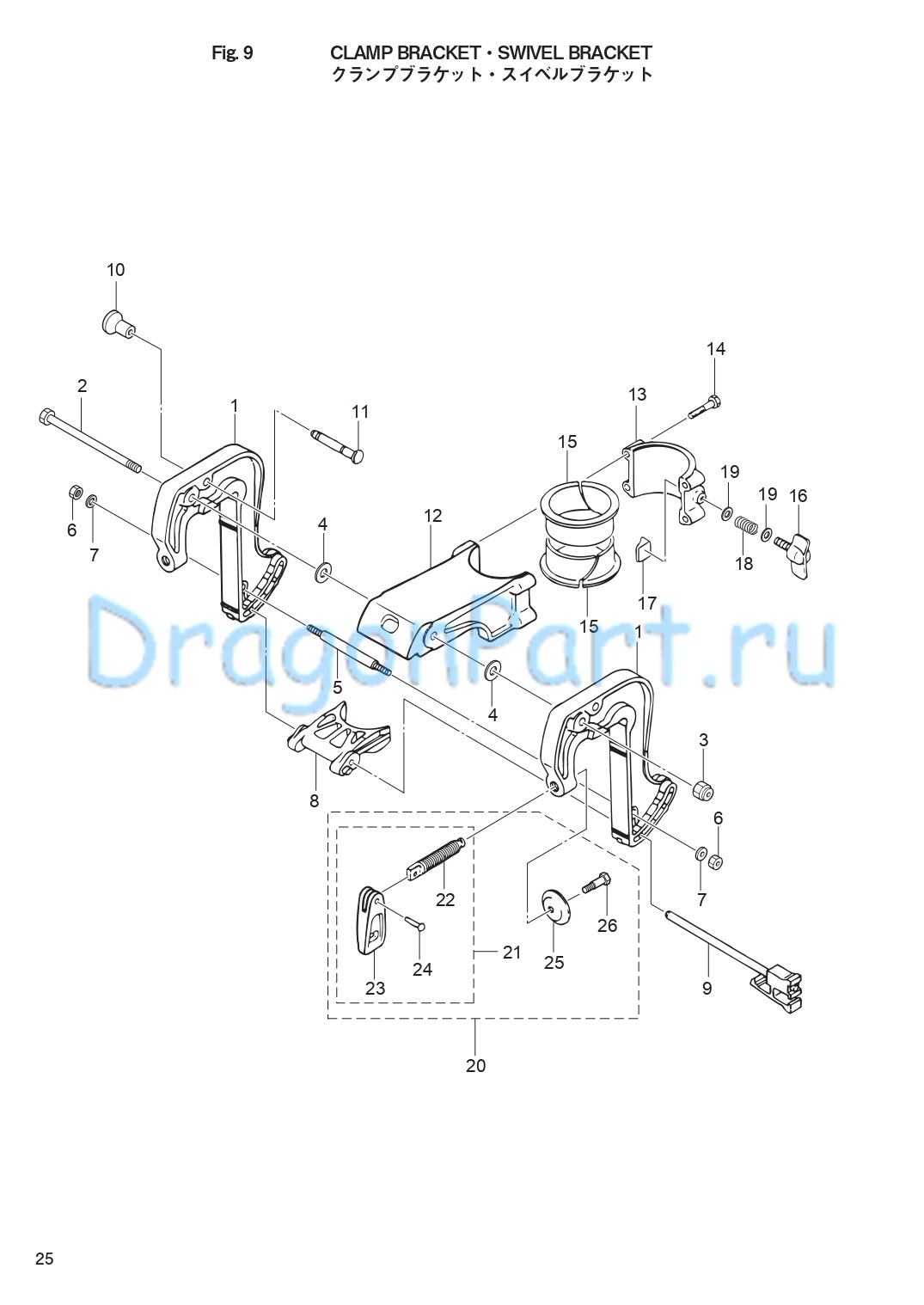

CLAMP BRACKET SWIVEL BRACKET для Tohatsu M3.5B2 - 2019 года выпуска`
-
№АртикулНазвание
-
1309Q62111-4 CLAMP BRACKETCLAMP BRACKET
-
2309-62115-2 BOLT 8-122BOLT 8-122
-
3930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
4307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
5309-62117-1 DISTANCE PIECEDISTANCE PIECE
-
6930103-0600 NUTNUT
-
79401E3-0600 WASHERWASHER
-
8309-62212-2 THRUST SUPPORTERTHRUST SUPPORTER
-
93F0-62160-0 THRUST ROD ASSYTHRUST ROD ASSY
-
10309-62463-0 KNOBKNOB
-
11309-62464-2 TILT STOPPERTILT STOPPER
-
12309Q62391-1 SWIVEL BRACKETSWIVEL BRACKET
-
13309Q62392-1 SWIVEL BRACKETSWIVEL BRACKET
-
149101E3-0630 BOLTBOLT
-
15309-62321-1 BUSHINGBUSHING
-
163GT-62442-0 FRICTION KNOBFRICTION KNOB
-
17309-62441-2 FRICTION PIECEFRICTION PIECE
-
18309-62446-1 SPRINGSPRING
-
199401E3-0600 WASHERWASHER
-
203GTQ62105-1 CLAMP SCREW KITCLAMP SCREW KIT
-
213GTQ62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
22369-62106-1 ** CLAMP SCREW** CLAMP SCREW
-
233ABQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
243C8-62104-2 ** RIVET 3-22** RIVET 3-22
-
25332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
263C8-62107-0 * SHOULDER BOLT* SHOULDER BOLT
