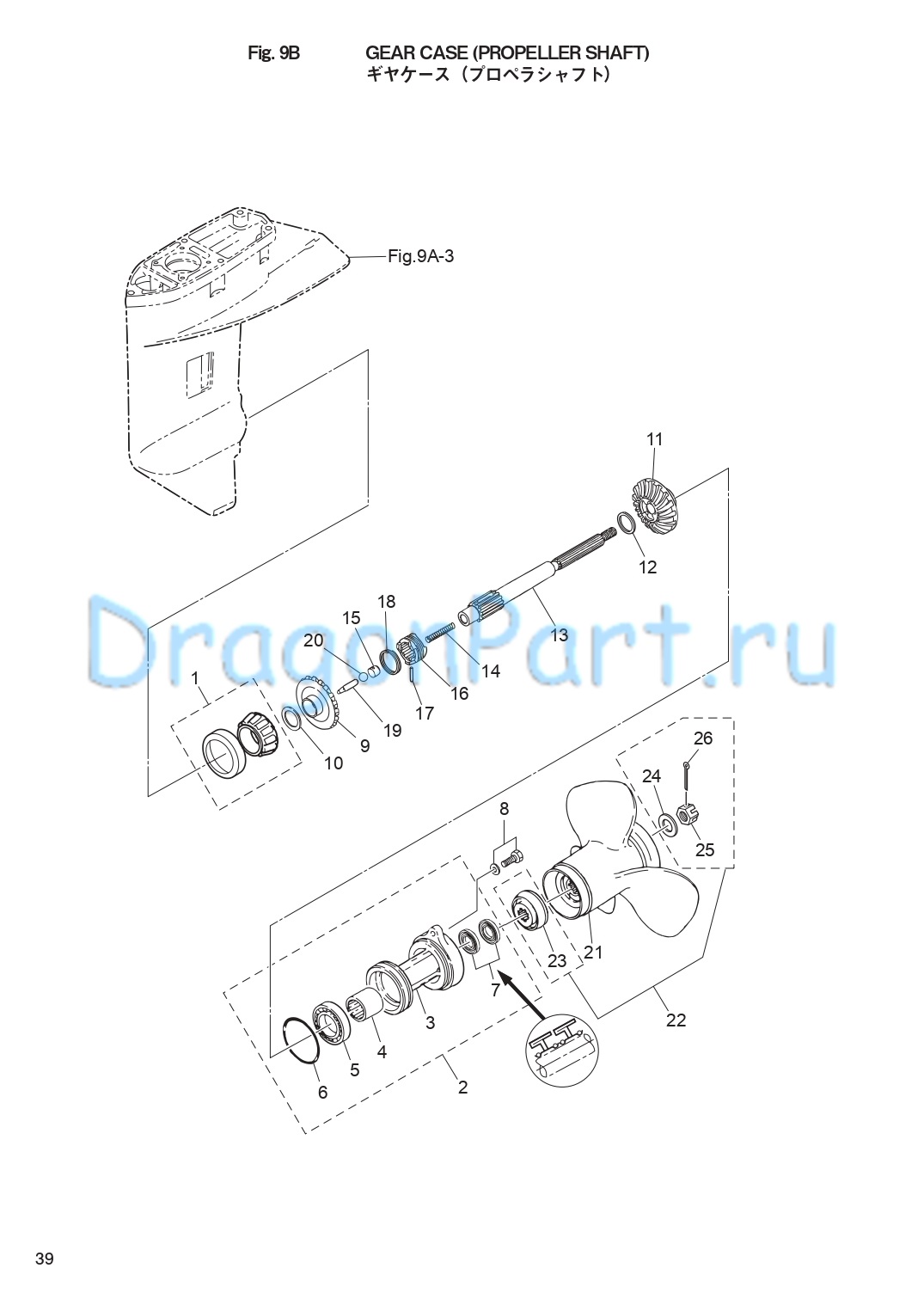

GEAR CASE (PROPELLER SHAFT) для Tohatsu M25H - 2019 года выпуска`
-
№АртикулНазвание
-
1346-60215-0 TAPERED ROLLER BEARING 30205TAPERED ROLLER BEARING 30205
-
2349Q60100-7 PROPELLER SHAFT HOUSING ASSYPROPELLER SHAFT HOUSING ASSY
-
3346Q60101-8 * PROPELLER SHAFT HOUSING* PROPELLER SHAFT HOUSING
-
4346-60102-0 * ROLLER BEARING 18-25-2.5* ROLLER BEARING 18-25-2.5
-
59601-0-6205 * BALL BEARING 6205* BALL BEARING 6205
-
6332-60103-0 * O-RING 3-62.5* O-RING 3-62.5
-
73AC-60111-0 * OIL SEAL 18-28-8* OIL SEAL 18-28-8
-
89101E3-5830 BOLTBOLT
-
9346-64010-1 BEVEL GEAR ASSY (A)BEVEL GEAR ASSY (A)
-
10369-64081-1 SHIM 26.5-34.8-0.1SHIM 26.5-34.8-0.1
-
10369-64082-1 SHIM 26.5-34.8-0.15SHIM 26.5-34.8-0.15
-
11346-64030-0 BEVEL GEAR CBEVEL GEAR C
-
12346-64032-0 WASHER 18-24-1.5WASHER 18-24-1.5
-
13346-64211-6 PROPELLER SHAFTPROPELLER SHAFT
-
14332-64221-0 SPRINGSPRING
-
15350-64222-1 SPRING RETAINERSPRING RETAINER
-
16346-64215-1 CLUTCHCLUTCH
-
17346-64218-0 PINPIN
-
18346-64219-0 SNAPSNAP
-
193C8-64223-1 PUSH RODPUSH ROD
-
20965002-0803 BALL 3/8BALL 3/8
-
21346B64106-5 PROPELLER ASSY (8")
OPT 3 x 260 x 210PROPELLER ASSY (8")
OPT 3 x 260 x 210 -
213R0B64518-1 PROPELLER ASSY (9)
MX25/30H "UL" STD 3 x 247 x 229PROPELLER ASSY (9)
MX25/30H "UL" STD 3 x 247 x 229 -
213R0B64521-1 PROPELLER ASSY (10)
M25/30H "UL"& MX "L" STD 3 x 247 x 254PROPELLER ASSY (10)
M25/30H "UL"& MX "L" STD 3 x 247 x 254 -
213R0B64523-1 PROPELLER ASSY (11)
M25/30H "L" STD 3 x 249 x 279PROPELLER ASSY (11)
M25/30H "L" STD 3 x 249 x 279 -
213R0B64525-1 PROPELLER ASSY (12)
MX25/30H "S" STD 3 x 249 x 305PROPELLER ASSY (12)
MX25/30H "S" STD 3 x 249 x 305 -
213R0B64527-1 PROPELLER ASSY (13)
M25/30H "S" STD 3 x 244 x 330PROPELLER ASSY (13)
M25/30H "S" STD 3 x 244 x 330 -
21349B64529-1 PROPELLER ASSY (14")
OPT 3 x 252 x 360PROPELLER ASSY (14")
OPT 3 x 252 x 360 -
223R0-87326-0 PROPELLER HARDWARE KITPROPELLER HARDWARE KIT
-
23346-64231-5 * THRUST HOLDER* THRUST HOLDER
-
24346-64124-5 * WASHER 12.5-32-2.5* WASHER 12.5-32-2.5
-
25346-64121-5 * PROPELLER NUT* PROPELLER NUT
-
26951503-0322 * SPLIT PIN 3-22* SPLIT PIN 3-22
