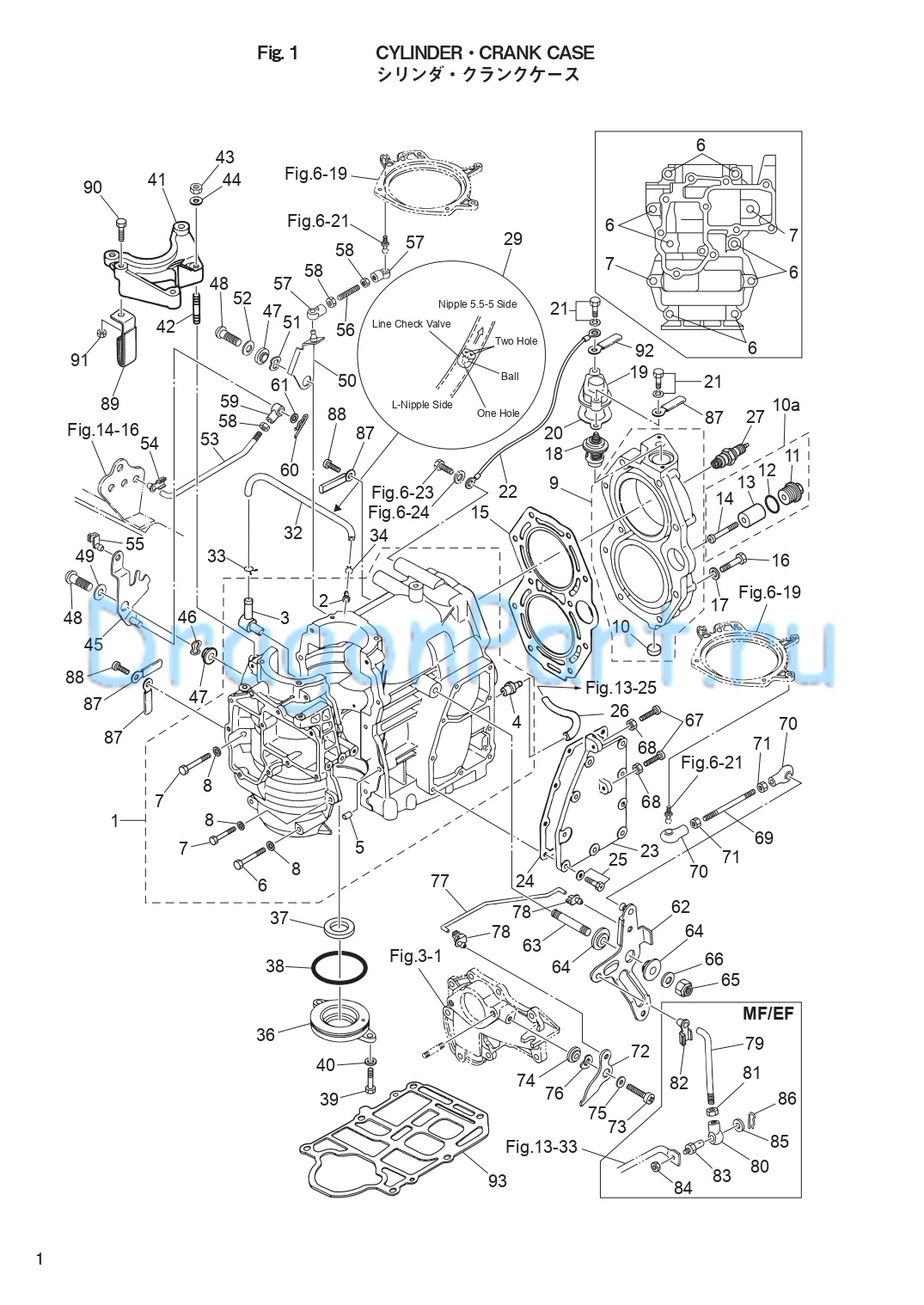

CYLINDER CRANK CASE для Tohatsu M25H - 2019 года выпуска`
-
№АртикулНазвание
-
1346B01100-6 CYL BLOCK & CRANKCASE ASSY
BlackCYL BLOCK & CRANKCASE ASSY
Black -
2393-01131-0 * NIPPLE 5.5-5* NIPPLE 5.5-5
-
3393-01137-0 * NIPPLE 5-4-5* NIPPLE 5-4-5
-
4346-01137-0 * NIPPLE 7-7* NIPPLE 7-7
-
5336-01111-0 * DOWEL PIN 8.7-11.5-12.7* DOWEL PIN 8.7-11.5-12.7
-
6916124-0850 * BOLT* BOLT
-
7916124-0840 * BOLT* BOLT
-
8940121-0800 * WASHER* WASHER
-
93A1B01001-2 CYLINDER HEAD ASSY
BlackCYLINDER HEAD ASSY
Black -
10350-01093-0 * WELCH PLUG* WELCH PLUG
-
10a3KM-01142-0 ANODE PLUG ASSYANODE PLUG ASSY
-
113P0-01143-0 * ANODE PLUG* ANODE PLUG
-
123T5-10046-0 * O-RING 1.9-13* O-RING 1.9-13
-
133P0-60218-0 * ANODE* ANODE
-
14921503-0530 * SCREW* SCREW
-
15346-01005-3 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
163KM-01012-0 CYLINDER HEAD BOLTCYLINDER HEAD BOLT
-
173C8-01015-0 WASHER 8.5-19.5-3.2WASHER 8.5-19.5-3.2
-
18345-01030-0 THERMOSTAT
Mark 52A PRVTHERMOSTAT
Mark 52A PRV -
193H6B01031-0 THERMOSTAT CAP
BlackTHERMOSTAT CAP
Black -
20346-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
21910103-5630 BOLTBOLT
-
223B7-76142-1 GROUND CABLE L=120
Thermostat-Electric PlateGROUND CABLE L=120
Thermostat-Electric Plate -
23346B02301-0 EXHAUST COVER (OUTER)
BlackEXHAUST COVER (OUTER)
Black -
24346-02305-2 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
259101E3-5518 BOLTBOLT
-
2698AB-50-250 HOSE φ5-φ10
Water Nipple 98AB-501000HOSE φ5-φ10
Water Nipple 98AB-501000 -
279701-1-1015 SPARK PLUG(BR7HS-10)
NGKSPARK PLUG(BR7HS-10)
NGK -
29393-01160-0 CHECK VALVECHECK VALVE
-
3298AL-40-230 HOSE
98AL-401000HOSE
98AL-401000 -
333T5-01133-0 CLIP φ8CLIP φ8
-
34338-01133-0 CLIP φ7CLIP φ7
-
36346-01210-0 CRANKCASE HEADCRANKCASE HEAD
-
37346-01215-0 OIL SEAL 16-28-6OIL SEAL 16-28-6
-
38346-01216-0 O-RING 1.7-59O-RING 1.7-59
-
399101F4-0616 BOLTBOLT
-
40941303-0600 SPRING WASHERSPRING WASHER
-
41346B05101-1 BRACKET
BlackBRACKET
Black -
429153F4-0825 STUDSTUD
-
43930121-0800 NUTNUT
-
44940121-0800 WASHERWASHER
-
45346-05211-2 STARTER LOCK ARMSTARTER LOCK ARM
-
46941403-1000 WAVE WASHER d=10WAVE WASHER d=10
-
47346-05212-0 BUSHING 6.2-16-7
Stater Lock Arm Throttle Limiter ArmBUSHING 6.2-16-7
Stater Lock Arm Throttle Limiter Arm -
48921503-0620 SCREW
Stater Lock Arm Throttle Limiter ArmSCREW
Stater Lock Arm Throttle Limiter Arm -
493C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
50346-05213-1 THROTTLE LIMITER ARMTHROTTLE LIMITER ARM
-
51941403-1000 WAVE WASHER d=10WAVE WASHER d=10
-
52940103-0600 WASHERWASHER
-
53346-05222-0 STARTER LOCK ROD
Starter Lock Arm-Shift LeverSTARTER LOCK ROD
Starter Lock Arm-Shift Lever -
54345-05224-0 ROD SNAP 5-2.5ROD SNAP 5-2.5
-
55345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
56346-05221-1 THROTTLE LIMITER ROD 5-27LTHROTTLE LIMITER ROD 5-27L
-
573B7-05243-0 BALL JOINT CONNECTORBALL JOINT CONNECTOR
-
58930103-0500 NUTNUT
-
59346-05234-0 ROD JOINT φ5ROD JOINT φ5
-
60951603-0800 SNAP PIN d=8SNAP PIN d=8
-
613AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
623P0-63701-1 ADVANCER ARM ASSYADVANCER ARM ASSY
-
633KM-63104-0 STUDSTUD
-
64345-63713-0 BUSHING 8-14-4BUSHING 8-14-4
-
65930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
66940203-0800 WASHER 8.4-15.5-1.6WASHER 8.4-15.5-1.6
-
67921503-0525 SCREWSCREW
-
68930103-0500 NUTNUT
-
69350-63717-1 ROD L=50ROD L=50
-
703B7-05243-0 BALL JOINT CONNECTORBALL JOINT CONNECTOR
-
71930103-0500 NUTNUT
-
723P0-63718-0 THROTTLE CAMTHROTTLE CAM
-
73921503-0616 SCREWSCREW
-
74346-63721-0 BUSHING 6.2-16-5BUSHING 6.2-16-5
-
753C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
76941403-1000 WAVE WASHER d=10WAVE WASHER d=10
-
77346-63716-1 THROTTLE ROD
Advancer Arm-Throttle CamTHROTTLE ROD
Advancer Arm-Throttle Cam -
783P0-05223-0 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
79348-63715-1 ROD 5-75L
Advancer Arm-Throttle Shaft for MF/EF TypeROD 5-75L
Advancer Arm-Throttle Shaft for MF/EF Type -
80346-05234-0 ROD JOINT φ5
for MF/EF TypeROD JOINT φ5
for MF/EF Type -
81930103-0500 NUT
for MF/EF TypeNUT
for MF/EF Type -
823B7-63733-0 ROD SNAP 5-2.5
for MF/EF TypeROD SNAP 5-2.5
for MF/EF Type -
83353-83728-1 PIN
for MF/EF TypePIN
for MF/EF Type -
84930103-0600 NUT
for MF/EF TypeNUT
for MF/EF Type -
853AA-83719-0 WASHER 8.5-18-1.6
for MF/EF TypeWASHER 8.5-18-1.6
for MF/EF Type -
86951603-0800 SNAP PIN d=8
for MF/EF TypeSNAP PIN d=8
for MF/EF Type -
873PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
88921521-0610 SCREWSCREW
-
89345-06917-1 CLAMP 9-20UCLAMP 9-20U
-
909101F4-0825 BOLTBOLT
-
91930103-0800 NUTNUT
-
92398-06972-0 CLAMP 6.5-67PCLAMP 6.5-67P
-
93346-01303-1 ENGINE BASEMENT GASKETENGINE BASEMENT GASKET
