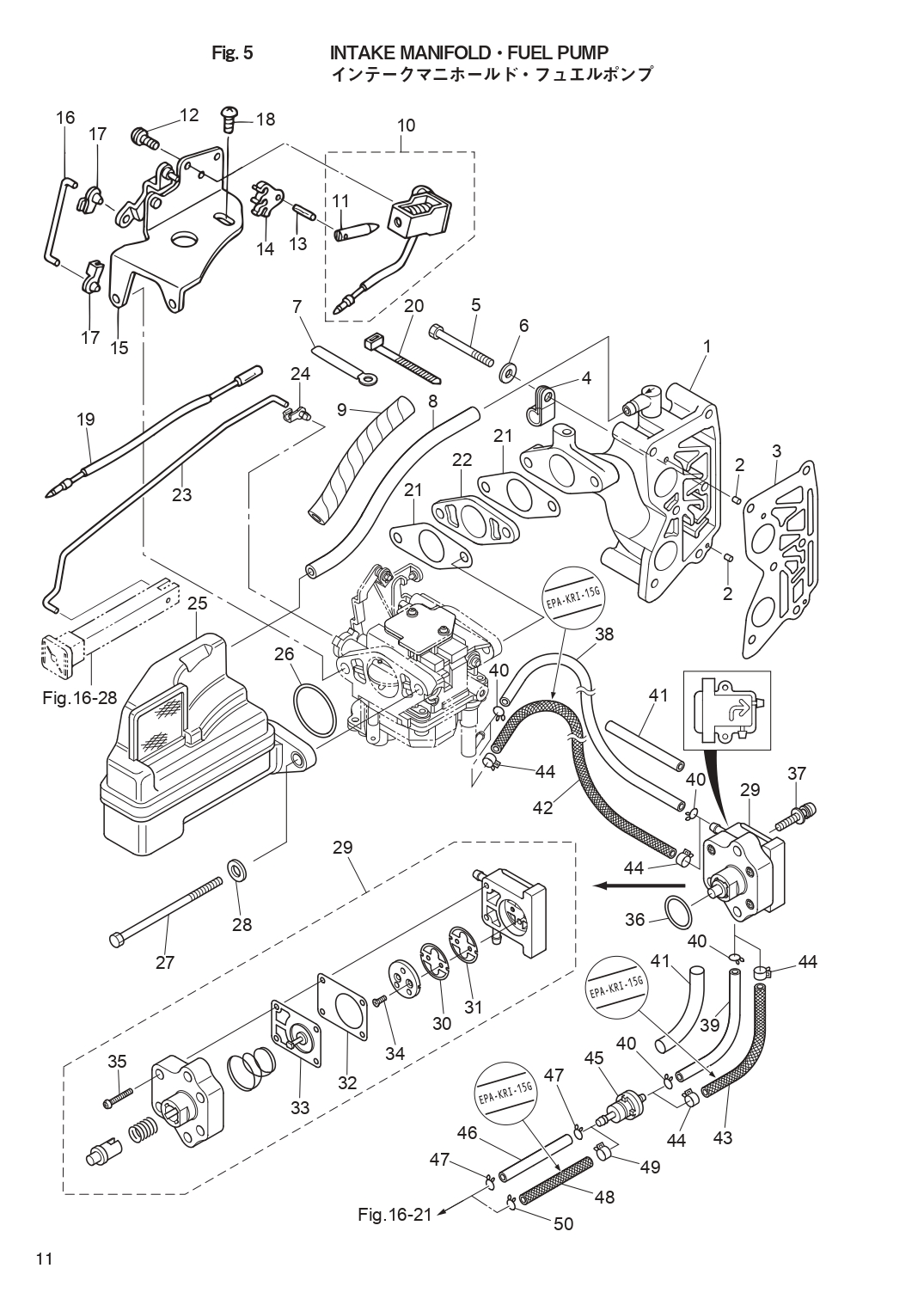

INTAKE MAINFOLD FUEL PUMP для Tohatsu MFS8B - 2018 года выпуска
-
№АртикулНазвание
-
13AA-02010-1 INTAKE MANIFOLD ASSYINTAKE MANIFOLD ASSY
-
2951403-0310 SPRING PIN 3-10SPRING PIN 3-10
-
33V1-02104-0 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
4345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
59161F4-0653 BOLTBOLT
-
69401E3-0600 WASHERWASHER
-
73T4-06972-1 CLAMP 6.5-87P
Starter CaseCLAMP 6.5-87P
Starter Case -
898AB-70-275 HOSE
Intake Manifold-Intake Silencer 98AB-701000HOSE
Intake Manifold-Intake Silencer 98AB-701000 -
93V1-76148-0 SPIRAL TUBE PROTECTOR φ10-100
for EP/EPT TypeSPIRAL TUBE PROTECTOR φ10-100
for EP/EPT Type -
103V1-76050-0 CHOKE SOLENOID
for EP/EPT TypeCHOKE SOLENOID
for EP/EPT Type -
11361-76073-0 * PLUNGER* PLUNGER
-
12921503-6408 SCREW
Choke Solenoid for EP/EPT TypeSCREW
Choke Solenoid for EP/EPT Type -
13951403-0312 SPRING PIN 3-12
for EP/EPT TypeSPRING PIN 3-12
for EP/EPT Type -
14346-76057-0 CHOKE SOLENOID HOOK
for EP/EPT TypeCHOKE SOLENOID HOOK
for EP/EPT Type -
153V1-76078-1 CHOKE SOLENOID BRACKET ASSY
for EP/EPT TypeCHOKE SOLENOID BRACKET ASSY
for EP/EPT Type -
163V1-76076-0 LINK ROD
for EP/EPT TypeLINK ROD
for EP/EPT Type -
173V1-67196-0 ROD SNAP 1.5-2
for EP/EPT TypeROD SNAP 1.5-2
for EP/EPT Type -
18921503-0510 SCREW
for EP/EPT TypeSCREW
for EP/EPT Type -
193V1-72547-0 ASSIST CORD (BLU)
for EP TypeASSIST CORD (BLU)
for EP Type -
203T5-84398-0 BAND 104
for EP/EPT TypeBAND 104
for EP/EPT Type -
213V1-02011-0 CARBURETOR GASKETCARBURETOR GASKET
-
223V1-03952-0 INSULATORINSULATOR
-
233Y3-67192-0 CHOKE ROD
for MF/EF/EFT TypeCHOKE ROD
for MF/EF/EFT Type -
24346-67196-1 ROD SNAP 3-B
for MF/EF/EFT TypeROD SNAP 3-B
for MF/EF/EFT Type -
253V1-02409-0 INTAKE SILENCER ASSYINTAKE SILENCER ASSY
-
263V1-02012-0 O-RING 2.4-35.2O-RING 2.4-35.2
-
27916103-0695 BOLT
CarburetorBOLT
Carburetor -
28940103-0600 WASHERWASHER
-
293H6-04000-7 FUEL PUMP ASSYFUEL PUMP ASSY
-
303H6-04044-0 * CHECK VALVE
White* CHECK VALVE
White -
313H6-04014-1 * CHECK VALVE
Black R* CHECK VALVE
Black R -
323H6-04028-0 * PUMP BODY GASKET* PUMP BODY GASKET
-
333H6-04005-0 * PUMP DIAPHRAGM* PUMP DIAPHRAGM
-
34921603-0308 * SCREW* SCREW
-
35922503-6418 * SCREW* SCREW
-
363H6-07422-0 O-RING 2.6-18.7O-RING 2.6-18.7
-
37921503-5625 SCREWSCREW
-
3898AB-50-260 HOSE
Fuel Pump-Carburetor STD 98AB-501000HOSE
Fuel Pump-Carburetor STD 98AB-501000 -
3998AB-50-150 HOSE
Fuel Filter-Fuel Pump STD 98AB-501000HOSE
Fuel Filter-Fuel Pump STD 98AB-501000 -
40338-02215-0 CLIP φ10
STDCLIP φ10
STD -
413V2-06157-0 PROTECTOR φ12-120
STD Fuel Filter-Fuel Pump Fuel Pump-CarburetorPROTECTOR φ12-120
STD Fuel Filter-Fuel Pump Fuel Pump-Carburetor -
423BJ-02160-0 FUEL HOSE W/PROTECTOR L=260
Low Permeation Parts USA EPA-KRI-15GFUEL HOSE W/PROTECTOR L=260
Low Permeation Parts USA EPA-KRI-15G -
433V2-02160-0 FUEL HOSE W/PROTECTOR L=150
Low Permeation Parts USA EPA-KRI-15GFUEL HOSE W/PROTECTOR L=150
Low Permeation Parts USA EPA-KRI-15G -
443GT-35143-0 CLIP φ9.4
for USA ModelCLIP φ9.4
for USA Model -
45369-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
4698AB-50-330 HOSE
Connector-Fuel Filter STD 98AB-501000HOSE
Connector-Fuel Filter STD 98AB-501000 -
47338-02215-0 CLIP φ10
STDCLIP φ10
STD -
483AA-02160-0 FUEL HOSE W/PROTECTOR L=350
Low Permeation Parts USA EPA-KRI-15GFUEL HOSE W/PROTECTOR L=350
Low Permeation Parts USA EPA-KRI-15G -
493GT-35143-0 CLIP φ9.4
Fuel Filter Side for USA ModelCLIP φ9.4
Fuel Filter Side for USA Model -
50338-02215-0 CLIP φ10
Connector Side for USA ModelCLIP φ10
Connector Side for USA Model
