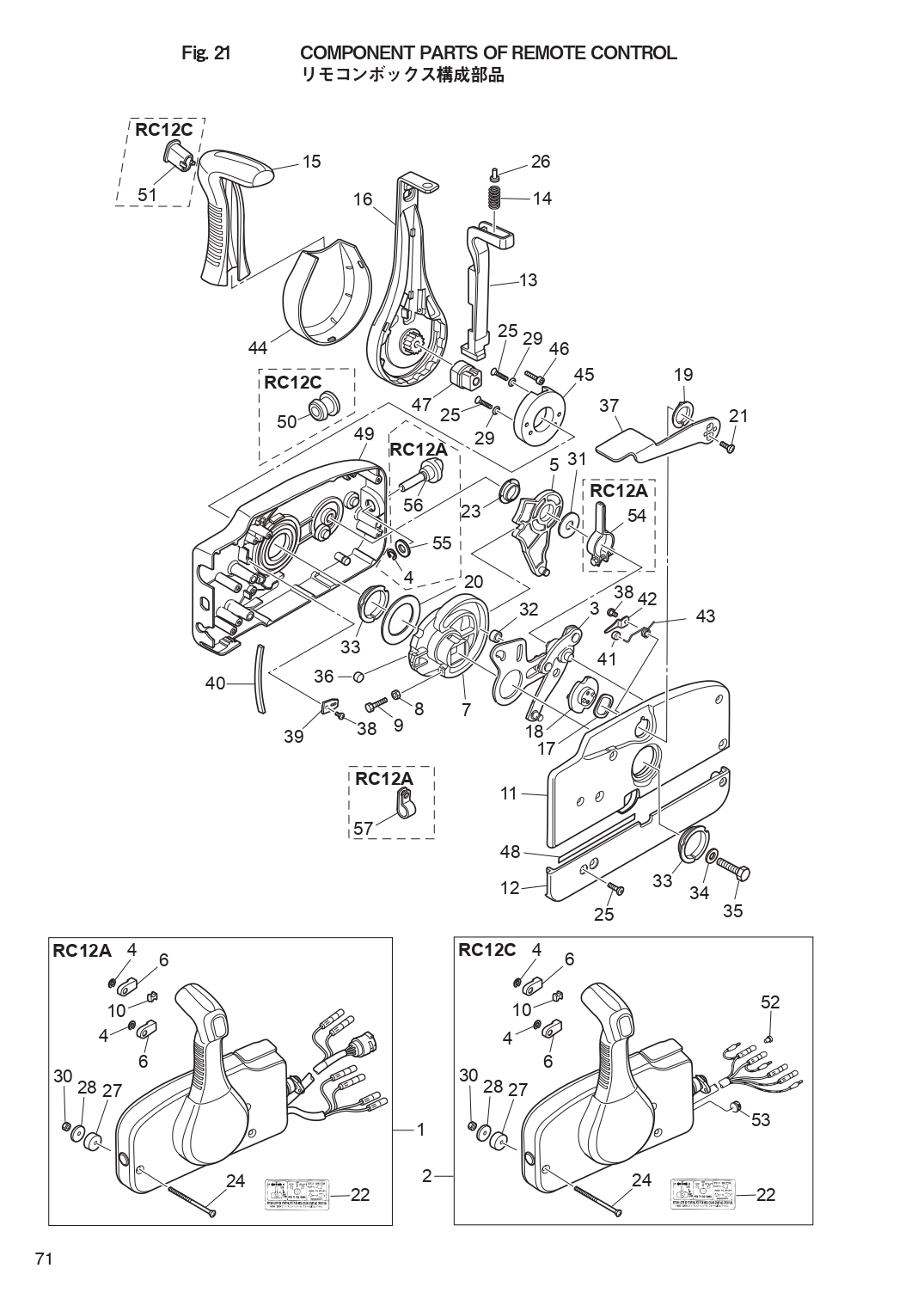

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu MFS8B - 2018 года выпуска`
-
№АртикулНазвание
-
13U2B84350-0 REMOTE CONTROL HEAD ASSY(RC12C)
for EP TypeREMOTE CONTROL HEAD ASSY(RC12C)
for EP Type -
33A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
4945303-0600 * E-RING d=6
RC12C* E-RING d=6
RC12C -
53A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
63A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
73A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
8930103-0500 * NUT* NUT
-
9910103-0525 * BOLT* BOLT
-
103A3-84376-0 * GROMMET* GROMMET
-
113U2B84441-0 * REAR HOUSING* REAR HOUSING
-
123U2B84366-0 * REAR PANEL* REAR PANEL
-
133U2-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
143A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
153U2-84404-0 * GRIP* GRIP
-
163U2-84343-0 * CONTROL LEVER* CONTROL LEVER
-
173A3-84368-0 * WAVE WASHER* WAVE WASHER
-
183A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
193A3-84435-0 * BUSHING* BUSHING
-
203A3-84422-0 * THRUST PLATE* THRUST PLATE
-
21921603-0512 * SCREW* SCREW
-
223U2-84339-0 * INSTRUCTION DECAL* INSTRUCTION DECAL
-
233A3-84432-0 * BUSHING* BUSHING
-
243U2-84375-0 * SCREW* SCREW
-
253VK-84375-0 * SCREW* SCREW
-
263VL-84375-0 * SCREW* SCREW
-
273A3-84374-0 * SPACER* SPACER
-
28353-84371-0 * WASHER* WASHER
-
293U2-84371-0 * WASHER* WASHER
-
30930103-0600 * NUT* NUT
-
313A3-84383-0 * WASHER* WASHER
-
323A3-84421-0 * ROLLER* ROLLER
-
333U2-84431-0 * BUSHING* BUSHING
-
34940103-0800 * WASHER* WASHER
-
353U2-84442-0 * BOLT* BOLT
-
36353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
373U2B84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
38921503-0406 * SCREW* SCREW
-
393A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
403A3-84307-0 * DETENT SPRING* DETENT SPRING
-
413A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
423A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
433A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
443VK-63107-0 * COVER* COVER
-
453U2-63506-0 * HOLDER* HOLDER
-
463U2-84917-0 * BOLT* BOLT
-
473U2-77367-0 * JOINT* JOINT
-
483U2-72187-0 CAUTION DECAL(SIGP)CAUTION DECAL(SIGP)
-
493U2B84440-0 * FRONT HOUSING* FRONT HOUSING
-
503U2-84414-0 * GROMMET
RC12C* GROMMET
RC12C -
513U2-84452-0 * TILT SWITCH PLUG
RC12C* TILT SWITCH PLUG
RC12C -
523A3-76037-0 * CABLE TERMINAL PLUG
RC12C* CABLE TERMINAL PLUG
RC12C -
53361-84415-0 * GROMMET
RC12C* GROMMET
RC12C
