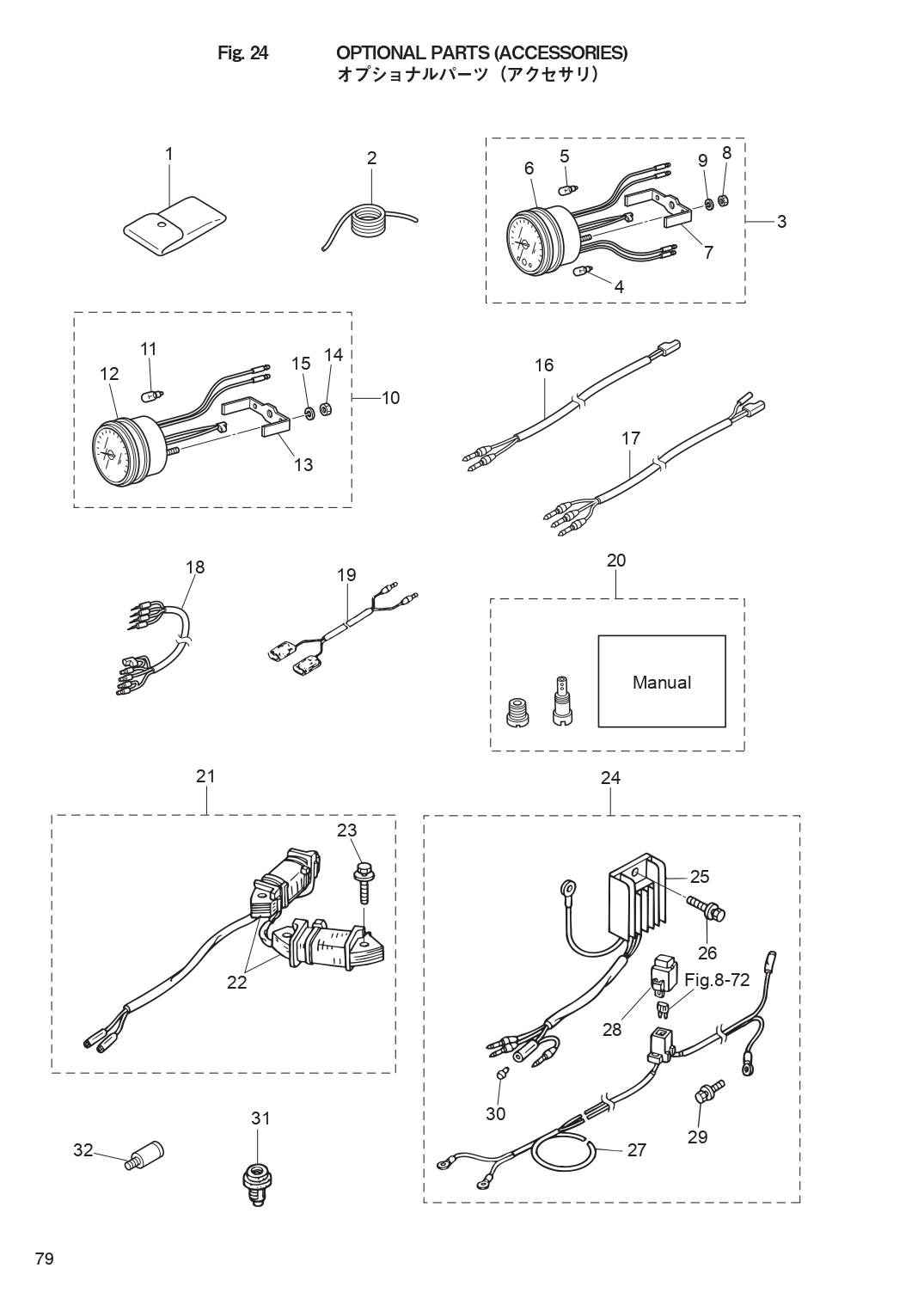

OPTIONAL PARTS (ACCESSORIES) для Tohatsu MFS6BZ - 2018 года выпуска
-
№АртикулНазвание
-
13BJ-72100-0 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE φ5-1600SAFETY ROPE φ5-1600
-
33N8-72640-1 TACHOMETER W/OIL LAMPTACHOMETER W/OIL LAMP
-
43B7-72658-0 * OIL BULB 12V-1.7W* OIL BULB 12V-1.7W
-
53B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
63B7-72656-0 * METER DAMPER* METER DAMPER
-
73B7-72661-0 * FITTING PLATE* FITTING PLATE
-
8930103-0500 * NUT* NUT
-
9941303-0500 * SPRING WASHER* SPRING WASHER
-
103B7-72530-2 TACHOMETER ASSYTACHOMETER ASSY
-
113B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
123B7-72656-0 * METER DAMPER* METER DAMPER
-
133B7-72661-0 * FITTING PLATE* FITTING PLATE
-
14930103-0500 * NUT* NUT
-
15941303-0500 * SPRING WASHER* SPRING WASHER
-
16361-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
173V1-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
183A3-72537-1 METER LEAD WIRE L=2000METER LEAD WIRE L=2000
-
19353-72537-0 METER LEAD WIRE L=1500METER LEAD WIRE L=1500
-
213V2-06128-0 ALTERNATOR KITALTERNATOR KIT
-
223AA-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
23910103-5630 * BOLT* BOLT
-
243V2-76160-0 RECTIFIER KITRECTIFIER KIT
-
253AA-76065-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
26910103-5616 * BOLT* BOLT
-
273AA-76161-0 * EXTENSION CORD L=2150* EXTENSION CORD L=2150
-
281E0-34093-0 * CAP* CAP
-
29910103-5610 * BOLT* BOLT
-
303A3-76037-0 * CABLE TERMINAL PLUG
Rectifier Red Cord* CABLE TERMINAL PLUG
Rectifier Red Cord -
313AA-01030-0 THERMOSTAT
OPT Mark 70THERMOSTAT
OPT Mark 70 -
32336-60007-0 FLUSHING PLUG
OPTFLUSHING PLUG
OPT
