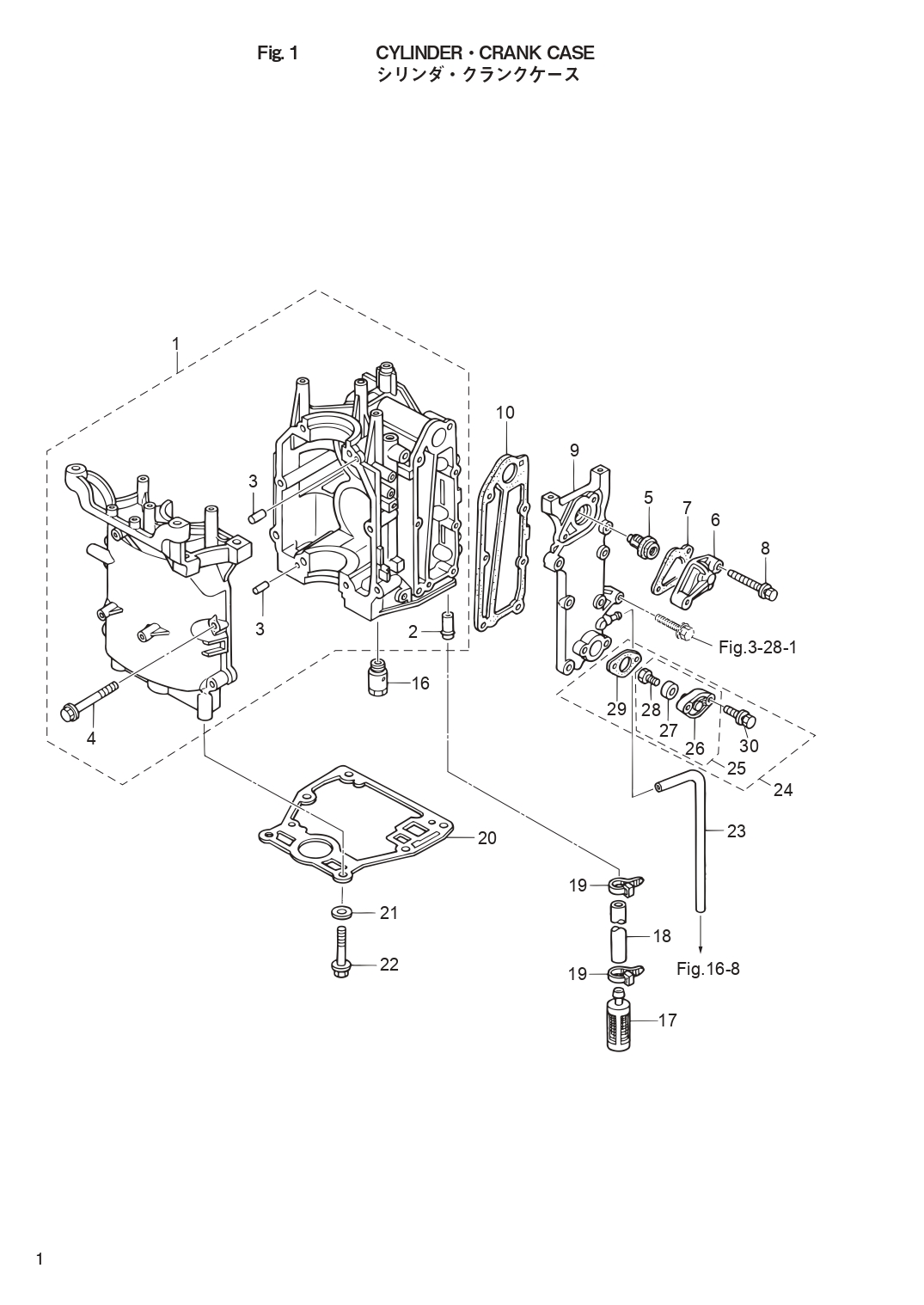

CYLINDER CRANK CASE для Tohatsu MFS6BZ - 2018 года выпуска
-
№АртикулНазвание
-
23H8-02093-0 * NIPPLE 10-32* NIPPLE 10-32
-
3345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
43H8-01012-1 * CYLINDER HEAD BOLT 8-50
Crankcase* CYLINDER HEAD BOLT 8-50
Crankcase -
53NV-01030-0 THERMOSTAT
Mark 60THERMOSTAT
Mark 60 -
63H6B01031-0 THERMOSTAT CAPTHERMOSTAT CAP
-
7346-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
89101E3-5640 BOLTBOLT
-
93V1B02301-0 EXHAUST COVER (OUTER)EXHAUST COVER (OUTER)
-
103V1-02305-0 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
163V2-07620-0 PLUNGER ASSYPLUNGER ASSY
-
173V1-07410-1 OIL STRAINER ASSYOIL STRAINER ASSY
-
1898AH-95-120 HOSE
98AH-951000HOSE
98AH-951000 -
19369-84398-0 BAND 158BAND 158
-
203V1-01303-0 ENGINE BASEMENT GASKETENGINE BASEMENT GASKET
-
219401E3-0800 WASHERWASHER
-
223BJ-61017-1 BOLT 8-P1.25BOLT 8-P1.25
-
2398AB-50-330 HOSE
98AB-501000HOSE
98AB-501000 -
243UAB01147-0 ANODE PLUG KITANODE PLUG KIT
-
253UAB01142-0 * ANODE PLUG ASSY* ANODE PLUG ASSY
-
263H8B01143-1 ** ANODE PLUG** ANODE PLUG
-
27369-60218-1 ** ANODE** ANODE
-
28910103-0616 ** BOLT** BOLT
-
293R3-01144-0 * GASKET* GASKET
-
309101E3-5620 * BOLT* BOLT
-
13V1B01100-0 CYL BLOCK & CRANKCASE ASSYCYL BLOCK & CRANKCASE ASSY
