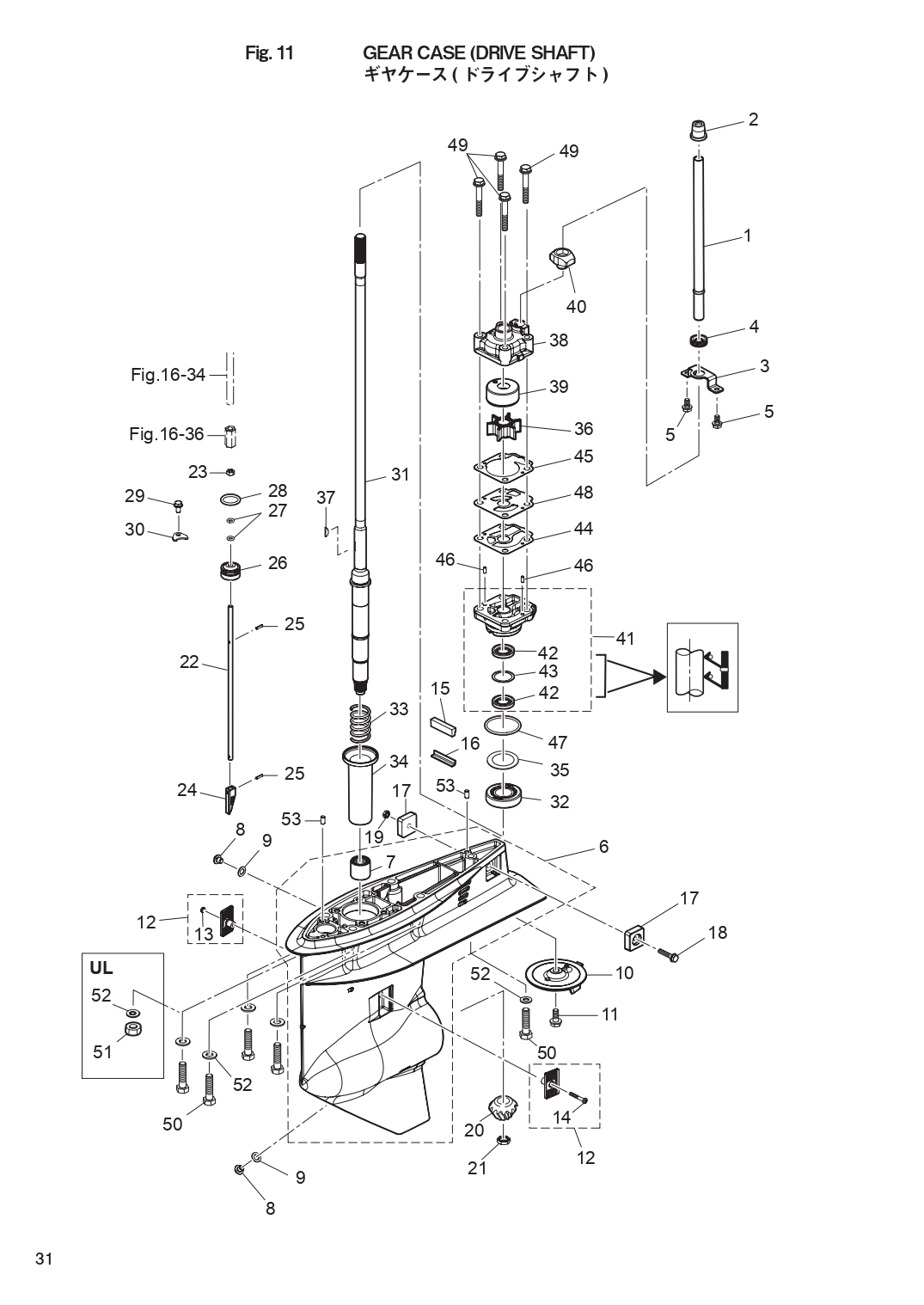

GEAR CASE (DRIVE SHAFT) для Tohatsu MFS50A - 2018 года выпуска
-
№АртикулНазвание
-
13KY-65110-0 WATER PIPE (L)
for Transom "L"WATER PIPE (L)
for Transom "L" -
13KY-65100-0 WATER PIPE (S)
for Transom "S"WATER PIPE (S)
for Transom "S" -
13KY-65120-0 WATER PIPE (UL)
for Transom "UL"WATER PIPE (UL)
for Transom "UL" -
23KY-65206-0 WATER PIPE SEAL (UPPER)WATER PIPE SEAL (UPPER)
-
33KY-65203-0 LOCK PLATELOCK PLATE
-
43KY-65204-0 WATER PIPE AUXILIARY MOUNTWATER PIPE AUXILIARY MOUNT
-
59101E3-5612 BOLTBOLT
-
63KYQ60000-1 GEAR CASE ASSY
3KYW60000-1 for White ModelGEAR CASE ASSY
3KYW60000-1 for White Model -
73KY-60211-0 * ROLLER BEARING* ROLLER BEARING
-
8332-60005-2 PLUG 8-8PLUG 8-8
-
9332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
103KZ-60217-0 TRIM TAB 3STRIM TAB 3S
-
11910103-5820 BOLTBOLT
-
123KY-60205-0 WATER STRAINER SETWATER STRAINER SET
-
13930403-0400 * NYLON NUT 4-P0.7* NYLON NUT 4-P0.7
-
14921503-0430 * SCREW* SCREW
-
153KY-60041-0 WATER SEAL RUBBERWATER SEAL RUBBER
-
163KY-60042-0 WATER SEAL PLATEWATER SEAL PLATE
-
173KY-60218-0 ANODEANODE
-
18910103-5625 BOLTBOLT
-
19930403-0600 NYLON NUT 6-P1.0NYLON NUT 6-P1.0
-
203KY-64020-0 BEVEL GEAR BBEVEL GEAR B
-
213C8-64027-0 NUTNUT
-
223KY-66014-0 CAM ROD (UL)
for Transom "UL"CAM ROD (UL)
for Transom "UL" -
223KY-66013-0 CAM ROD (L)
for Transom "S"&"L"CAM ROD (L)
for Transom "S"&"L" -
23930103-0600 NUTNUT
-
243AC-66011-1 CLUTCH CAMCLUTCH CAM
-
25951407-0312 SPRING PIN 3-12SPRING PIN 3-12
-
263R0-66031-0 CAM ROD BUSHINGCAM ROD BUSHING
-
27332-66021-0 O-RING 2.4-5.8O-RING 2.4-5.8
-
283C8-66032-0 O-RING 3.5-21.7O-RING 3.5-21.7
-
299101E3-5612 BOLTBOLT
-
30353-66024-0 STOPPERSTOPPER
-
313KY-64301-0 DRIVE SHAFT (S)
for Transom "S"DRIVE SHAFT (S)
for Transom "S" -
313KY-64303-0 DRIVE SHAFT (UL)
for Transom "UL"DRIVE SHAFT (UL)
for Transom "UL" -
313KY-64302-0 DRIVE SHAFT (L)
for Transom "L"DRIVE SHAFT (L)
for Transom "L" -
323KY-60215-0 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
333KY-64327-0 DRIVE SHAFT SPRINGDRIVE SHAFT SPRING
-
343KY-64328-0 DRIVE SHAFT SPRING GUIDEDRIVE SHAFT SPRING GUIDE
-
35345-64081-0 SHIM 41-51.5-0.1
t=0.1SHIM 41-51.5-0.1
t=0.1 -
35345-64082-0 SHIM 41-51.5-0.15
t=0.15SHIM 41-51.5-0.15
t=0.15 -
35345-64083-0 SHIM 41-51.5-0.3
t=0.3SHIM 41-51.5-0.3
t=0.3 -
35345-64084-0 SHIM 41-51.5-0.5
t=0.5SHIM 41-51.5-0.5
t=0.5 -
363C8-65021-2 WATER PUMP IMPELLERWATER PUMP IMPELLER
-
37332-65022-0 KEY 20-4.6-2KEY 20-4.6-2
-
383T5-65016-0 PUMP CASE (UPPER)PUMP CASE (UPPER)
-
393T5-65011-0 PUMP CASE LINERPUMP CASE LINER
-
403C8-65014-0 WATER PIPE SEAL (LOWER)WATER PIPE SEAL (LOWER)
-
413KY-65002-1 PUMP CASE ASSY (LOWER)PUMP CASE ASSY (LOWER)
-
423C8-60223-0 * OIL SEAL 17-33-6* OIL SEAL 17-33-6
-
433C8-64084-0 * SHIM 32.9-26-0.5* SHIM 32.9-26-0.5
-
443C8-65029-2 GUIDE PLATE GASKETGUIDE PLATE GASKET
-
453T5-65018-2 PUMP CASE GASKETPUMP CASE GASKET
-
46334-65012-0 DOWEL PIN 4-10DOWEL PIN 4-10
-
47345-65015-0 O-RING 3.2-47O-RING 3.2-47
-
483C8-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
499101E3-5855 BOLTBOLT
-
503KY-60001-0 BOLT
for Transom "S"&"L"BOLT
for Transom "S"&"L" -
513B7-61114-0 NUT 10-P1.25
for Transom "UL"NUT 10-P1.25
for Transom "UL" -
529402E3-1000 WASHERWASHER
-
533AB-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
