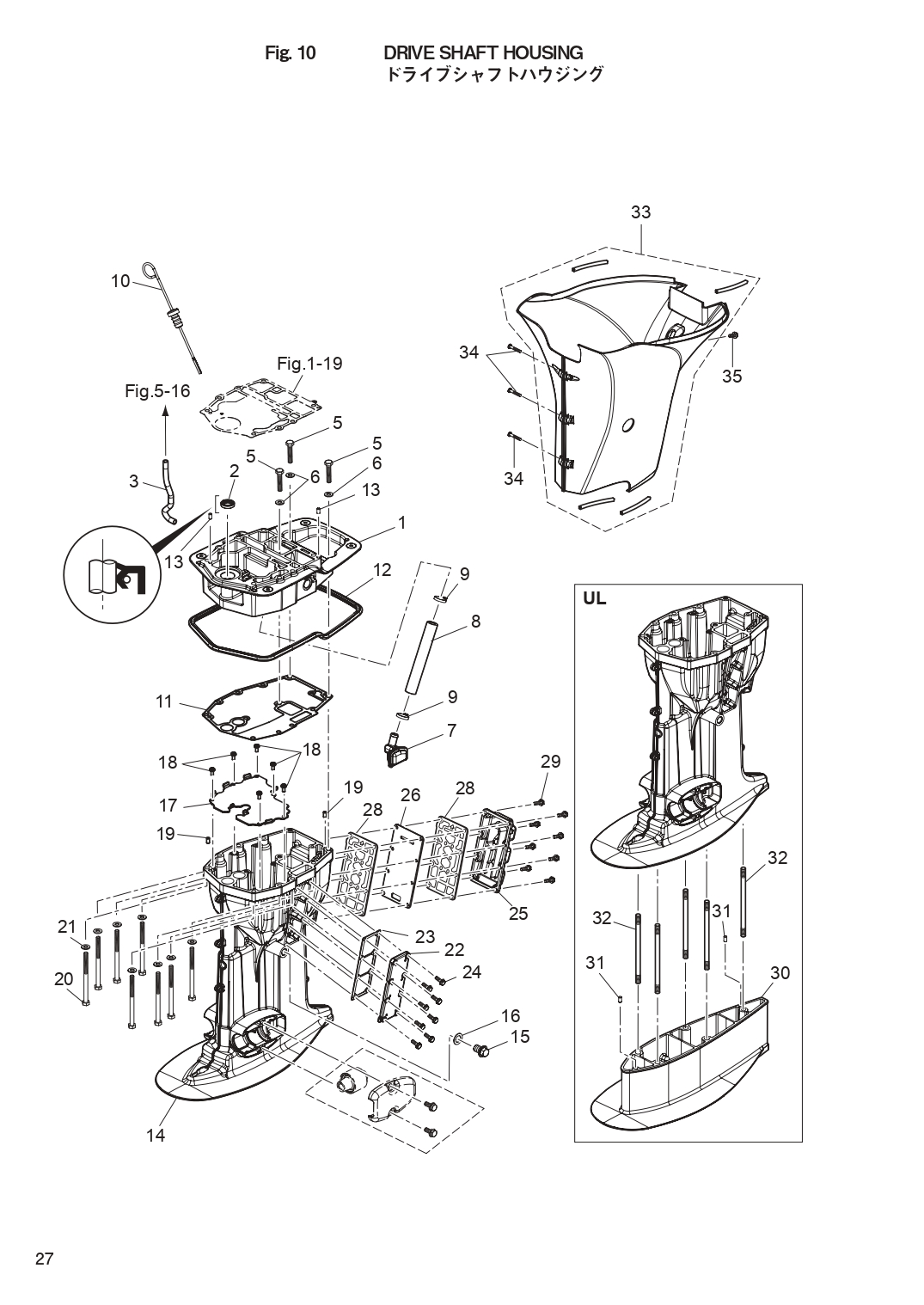

DRIVE SHAFT HOUSING для Tohatsu MFS50A - 2018 года выпуска`
-
№АртикулНазвание
-
13KYQ01300-0 ENGINE BASEMENT ASSYENGINE BASEMENT ASSY
-
2346-01215-0 OIL SEAL 16-28-6OIL SEAL 16-28-6
-
33KY-65210-0 COOLING HOSE
Engine Basement-Fuel CoolerCOOLING HOSE
Engine Basement-Fuel Cooler -
53LD-01012-0 CYLINDER HEAD BOLTCYLINDER HEAD BOLT
-
6940103-0800 WASHERWASHER
-
73KY-07710-0 OIL STRAINER ASSYOIL STRAINER ASSY
-
83KY-07715-0 PIPE L=150
Engine Basement-Oil StrainerPIPE L=150
Engine Basement-Oil Strainer -
9369-84398-0 BAND 158BAND 158
-
103KY-07721-0 OIL LEVEL GAUGEOIL LEVEL GAUGE
-
113KY-61012-0 DRIVE SHAFT HOUSING GASKET t=0.5DRIVE SHAFT HOUSING GASKET t=0.5
-
123KY-67116-0 ENGINE BASEMENT SEALENGINE BASEMENT SEAL
-
13345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
143KYQ61020-0 DRIVE SHAFT HOUSING ASSY (S)
3KYW61020-0 for White ModelDRIVE SHAFT HOUSING ASSY (S)
3KYW61020-0 for White Model -
143KYQ61030-1 DRIVE SHAFT HOUSING ASSY (L)
3KYW61030-1 for White ModelDRIVE SHAFT HOUSING ASSY (L)
3KYW61030-1 for White Model -
153R3-07705-1 DRAIN BOLT 14-14DRAIN BOLT 14-14
-
163R3-07406-0 WASHER 14.5-24-1WASHER 14.5-24-1
-
173KY-07740-0 GUIDE PLATEGUIDE PLATE
-
18921503-5512 SCREWSCREW
-
19345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
203B7-61018-2 BOLT 8-115BOLT 8-115
-
219401E3-0800 WASHERWASHER
-
223KYQ61028-0 COVER
3KYW61028-0 for White ModelCOVER
3KYW61028-0 for White Model -
233KY-61029-0 GASKETGASKET
-
249101E3-5620 BOLTBOLT
-
253KYQ61208-0 IDLE EXHAUST PORT COVER
3KYW61208-0 for White ModelIDLE EXHAUST PORT COVER
3KYW61208-0 for White Model -
263KY-62114-0 PLATEPLATE
-
283KY-61220-0 IDLE EXHAUST PORT GASKETIDLE EXHAUST PORT GASKET
-
299101E3-5620 BOLTBOLT
-
303KYQ61110-0 EXTENSION HOUSING (UL)
for Transom "UL"EXTENSION HOUSING (UL)
for Transom "UL" -
313AB-01111-0 DOWEL PIN 6-12
for Transom "UL"DOWEL PIN 6-12
for Transom "UL" -
323KY-61111-0 STUD M10-145
for Transom "UL"STUD M10-145
for Transom "UL" -
333KYQ61225-0 APRON ASSY
3KYW61225-0 for White ModelAPRON ASSY
3KYW61225-0 for White Model -
333KZQ61225-0 APRON ASSY
3KZW61225-0 for White ModelAPRON ASSY
3KZW61225-0 for White Model -
343F3-02423-0 TAPPING SCREW 5-30
for Transom "S"TAPPING SCREW 5-30
for Transom "S" -
343F3-02423-0 TAPPING SCREW 5-30
for Transom "L"&"UL"TAPPING SCREW 5-30
for Transom "L"&"UL" -
359101E3-5616 BOLTBOLT
