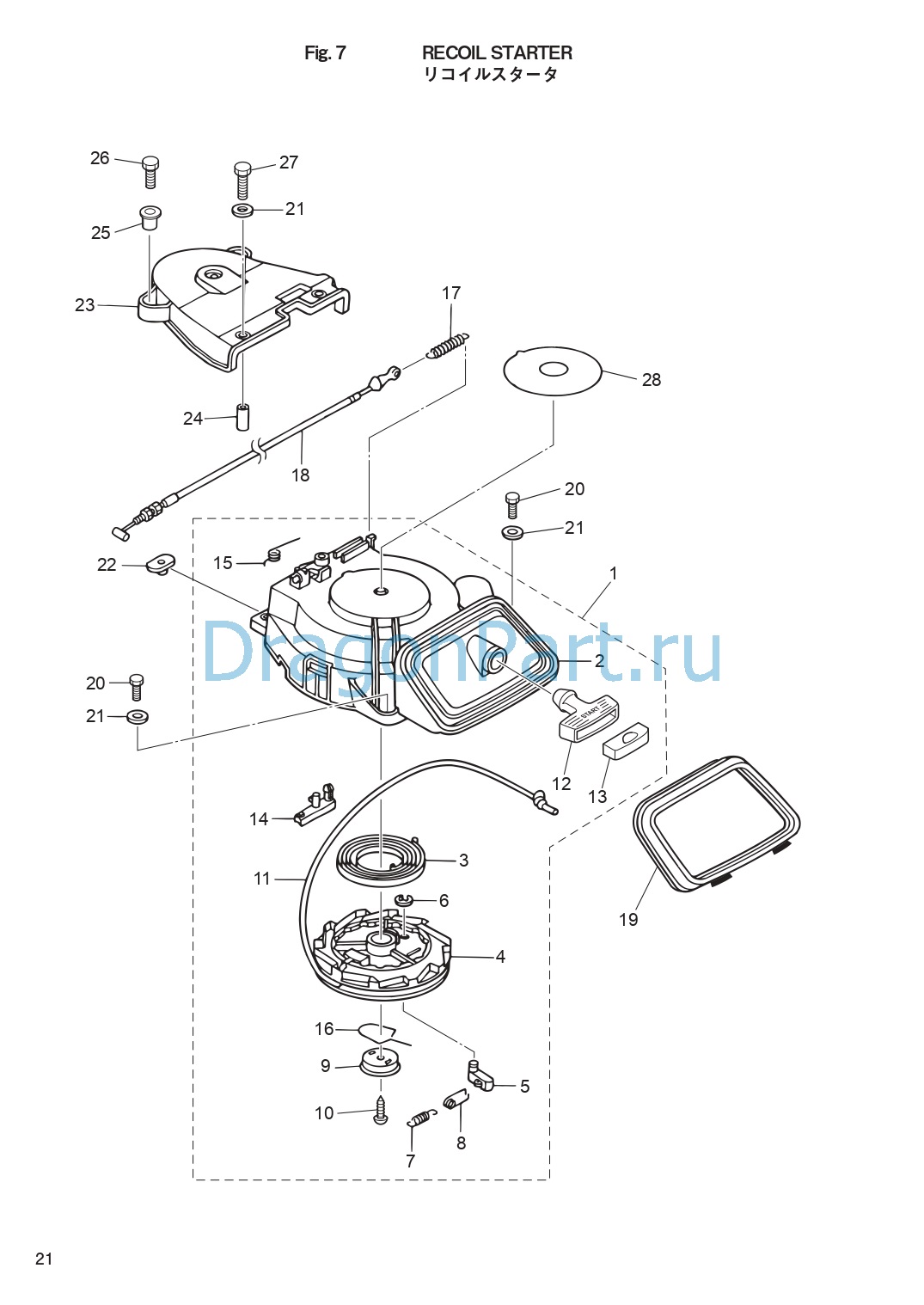

RECOIL STARTER для Tohatsu MFS25C - 2017 года выпуска`
-
№АртикулНазвание
-
13AC-05090-1 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
23AC-05105-1 * STARTER CASE* STARTER CASE
-
33H8-05004-0 * STARTER SPRING* STARTER SPRING
-
43R3-05106-0 * REEL* REEL
-
53R3-05003-0 * RATCHET* RATCHET
-
63R3-05011-0 * E-RING d=10* E-RING d=10
-
73R3-05012-0 * RETURN SPRING* RETURN SPRING
-
83H8-05123-1 * RETURN SPRING* RETURN SPRING
-
93R3-05006-0 * FRICTION PLATE* FRICTION PLATE
-
103SA-05913-0 * TAPPING SCREW* TAPPING SCREW
-
113R3-05013-0 * STARTER ROPE φ5-1800* STARTER ROPE φ5-1800
-
123AC-05019-0 * STARTER HANDLE* STARTER HANDLE
-
133AB-05131-0 * ROPE ANCHOR* ROPE ANCHOR
-
143R3-05252-0 * STARTER LOCK* STARTER LOCK
-
153R3-05216-0 * STARTER LOCK SPRING* STARTER LOCK SPRING
-
163R3-05007-1 * FRICTION SPRING* FRICTION SPRING
-
173AC-05258-0 STARTER LOCK CAM SPRINGSTARTER LOCK CAM SPRING
-
183AC-05207-0 STARTER LOCK WIRESTARTER LOCK WIRE
-
193NV-67503-0 STARTER SEALSTARTER SEAL
-
203AL-60108-0 PRE-COATED BOLT 6-20PRE-COATED BOLT 6-20
-
213C8-66308-0 WASHER 6-16-1.5
Recoil StarterWASHER 6-16-1.5
Recoil Starter -
213C8-66308-0 WASHER 6-16-1.5
Belt CoverWASHER 6-16-1.5
Belt Cover -
223F3-76042-2 NUTNUT
-
233R3-06308-0 BELT COVERBELT COVER
-
243R0-06303-1 COLLAR 6.2-9-12.3COLLAR 6.2-9-12.3
-
253BJ-06283-0 COLLAR 6.1-9-7.4COLLAR 6.1-9-7.4
-
26910103-0620 BOLTBOLT
-
27910103-0625 BOLTBOLT
-
283NV-72181-0 CAUTION DECAL (B)CAUTION DECAL (B)
-
283PA-72181-1 CAUTION DECAL (B)
for EU ModelCAUTION DECAL (B)
for EU Model
