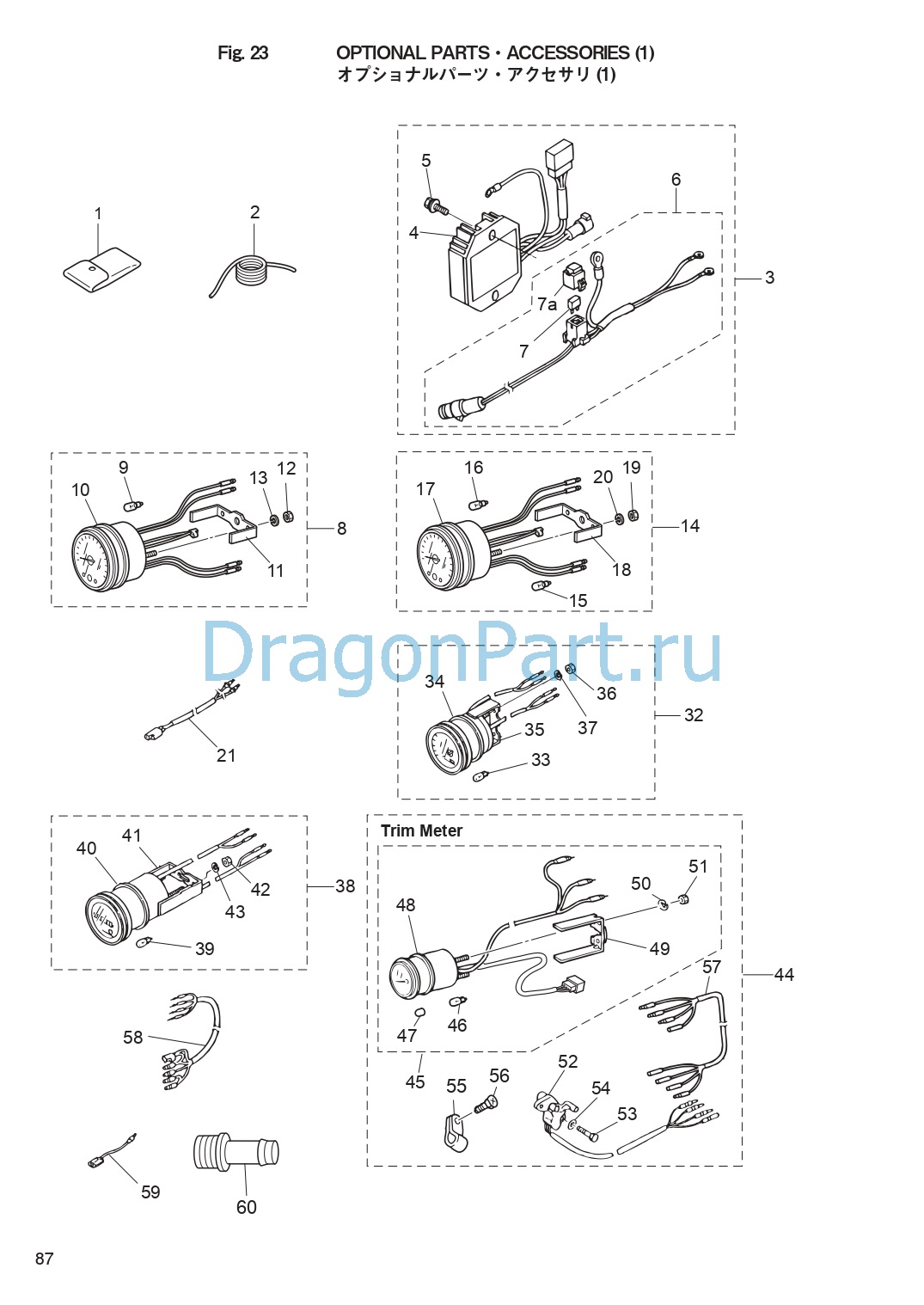

OPTIONAL PARTS ACCESSORIES (1) для Tohatsu MFS25C - 2017 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE φ5-1600SAFETY ROPE φ5-1600
-
33AC-76160-2 RECTIFIER KITRECTIFIER KIT
-
43AC-76065-2 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
5910103-5625 * BOLT
Rectifier* BOLT
Rectifier -
63AC-76161-0 * EXTENSION CORD L=3000* EXTENSION CORD L=3000
-
73T5-76247-0 ** FUSE 20A** FUSE 20A
-
7a1E0-34093-0 ** CAP** CAP
-
83B7-72530-2 TACHOMETER ASSY
for JapanTACHOMETER ASSY
for Japan -
93B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
103B7-72656-0 * METER DAMPER* METER DAMPER
-
113B7-72661-0 * FITTING PLATE* FITTING PLATE
-
12930103-0500 * NUT* NUT
-
13941303-0500 * SPRING WASHER* SPRING WASHER
-
143N8-72640-1 TACHOMETER W/OIL LAMP
for JapanTACHOMETER W/OIL LAMP
for Japan -
153B7-72658-0 * OIL BULB 12V-1.7W* OIL BULB 12V-1.7W
-
163B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
173B7-72656-0 * METER DAMPER* METER DAMPER
-
183B7-72661-0 * FITTING PLATE* FITTING PLATE
-
19930103-0500 * NUT* NUT
-
20941303-0500 * SPRING WASHER* SPRING WASHER
-
21361-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
323E0-72529-0 VOLTMETER ASSYVOLTMETER ASSY
-
333B7-72657-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
343B7-72655-0 * METER DAMPER* METER DAMPER
-
353B7-72662-0 * FITTING PLATE* FITTING PLATE
-
36930203-0400 * NUT* NUT
-
37941303-0400 * SPRING WASHER* SPRING WASHER
-
383E0-72524-0 HOUR METER ASSYHOUR METER ASSY
-
393B7-72657-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
403B7-72655-0 * METER DAMPER* METER DAMPER
-
413B7-72664-0 * FITTING PLATE* FITTING PLATE
-
42930203-0400 * NUT* NUT
-
43941303-0400 * SPRING WASHER* SPRING WASHER
-
443R0-72525-2 TRIM METER KITTRIM METER KIT
-
453T1-72571-0 * TRIM METER ASSY* TRIM METER ASSY
-
463T1-72659-0 ** METER BULB 12V-1.7W** METER BULB 12V-1.7W
-
473T1-72653-0 ** METER BULB CAP** METER BULB CAP
-
483B7-72655-0 ** METER DAMPER** METER DAMPER
-
493T1-72665-0 ** FITTING PLATE** FITTING PLATE
-
50941303-0400 ** SPRING WASHER** SPRING WASHER
-
51930203-0400 ** NUT** NUT
-
523Z4-72574-0 * TRIM SENSOR L=1700* TRIM SENSOR L=1700
-
53910103-0620 * BOLT* BOLT
-
543C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
55336-06973-0 * CLAMP 6-9.5L* CLAMP 6-9.5L
-
56921503-5612 * SCREW* SCREW
-
573T1-72573-0 * EXTENSION CORD (TRIM SENSOR) L=6000* EXTENSION CORD (TRIM SENSOR) L=6000
-
583R0-72537-1 METER LEAD WIRE L=2000METER LEAD WIRE L=2000
-
59353-72547-0 ASSIST CORD (BLU) L=200ASSIST CORD (BLU) L=200
-
59353-72548-0 ASSIST CORD (BLK) L=200ASSIST CORD (BLK) L=200
-
59353-72546-0 ASSIST CORD (RED) L=200ASSIST CORD (RED) L=200
-
603T1-72405-0 HOSE JOINT (WATER-WORKS)HOSE JOINT (WATER-WORKS)
