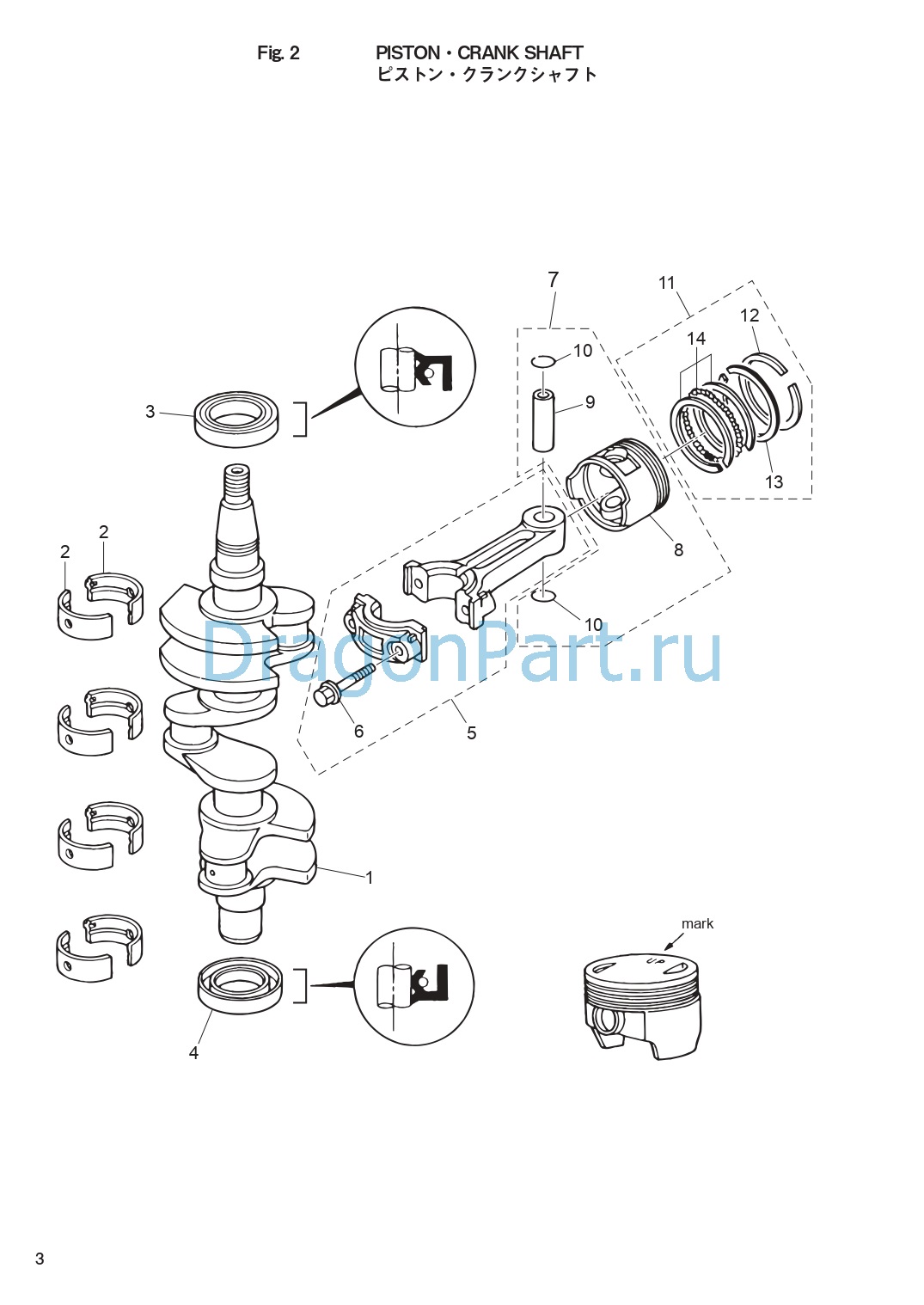

PISTON CRANK SHAFT для Tohatsu MFS25C - 2017 года выпуска`
-
№АртикулНазвание
-
13AC-00030-1 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23AE-07407-0 PLAIN SHAFT BEARING
Red (B) see Service ManualPLAIN SHAFT BEARING
Red (B) see Service Manual -
23AE-07408-0 PLAIN SHAFT BEARING
Blue (A) see Service ManualPLAIN SHAFT BEARING
Blue (A) see Service Manual -
33R0-00122-0 OIL SEAL 38-50-8
UpperOIL SEAL 38-50-8
Upper -
43R0-00121-0 OIL SEAL 35-50-8
LowerOIL SEAL 35-50-8
Lower -
53R0-00040-1 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
63H6-00059-0 * CONNECTING ROD BOLT* CONNECTING ROD BOLT
-
73FS-87130-0 PISTON REPAIR KITPISTON REPAIR KIT
-
83AE-00001-1 * PISTON* PISTON
-
93AE-00021-0 * PISTON PIN* PISTON PIN
-
103H6-00024-0 * PISTON PIN CLIP* PISTON PIN CLIP
-
113FS-87123-0 PISTON RING SETPISTON RING SET
-
123AC-00011-0 * PISTON RING
1st* PISTON RING
1st -
133AC-00012-0 * PISTON RING
2nd* PISTON RING
2nd -
143AC-00013-0 * PISTON RING-OIL
Oil* PISTON RING-OIL
Oil
