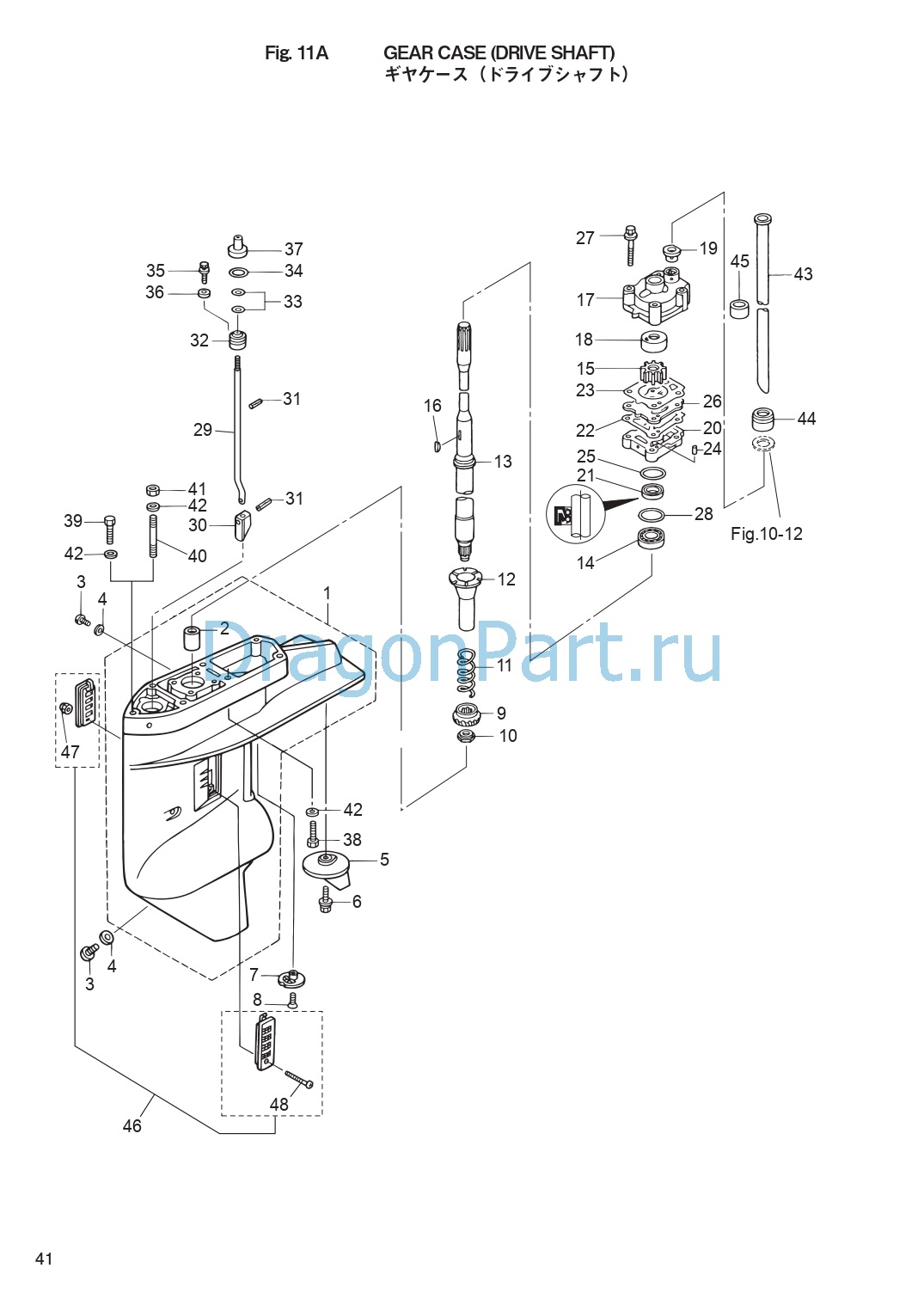

GEAR CASE (DRIVE SHAFT) для Tohatsu MFS25C - 2017 года выпуска`
-
№АртикулНазвание
-
13AEQ60000-2 GEAR CASE ASSYGEAR CASE ASSY
-
23AE-60211-0 * ROLLER BEARING 20-27-30* ROLLER BEARING 20-27-30
-
3332-60005-2 PLUG 8-8PLUG 8-8
-
4332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
53C8-60217-1 TRIM TABTRIM TAB
-
6910103-5620 BOLTBOLT
-
7369-60206-0 WATER STRAINERWATER STRAINER
-
89218E3-0620 SCREWSCREW
-
93NV-64020-0 BEVEL GEAR BBEVEL GEAR B
-
10346-64027-1 NUTNUT
-
11346-64327-0 DRIVE SHAFT SPRINGDRIVE SHAFT SPRING
-
12346-64328-0 DRIVE SHAFT SPRING GUIDEDRIVE SHAFT SPRING GUIDE
-
133R0-64301-0 DRIVE SHAFT (S)
for Transom "S"DRIVE SHAFT (S)
for Transom "S" -
13346-64302-5 DRIVE SHAFT (L)
for Transom "L"DRIVE SHAFT (L)
for Transom "L" -
13346-64303-5 DRIVE SHAFT (UL)
for Transom "UL"DRIVE SHAFT (UL)
for Transom "UL" -
14346-60213-0 TAPERED ROLLER BEARING 32004TAPERED ROLLER BEARING 32004
-
15345-65021-0 WATER PUMP IMPELLERWATER PUMP IMPELLER
-
16332-65022-0 KEY 20-4.6-2KEY 20-4.6-2
-
173R0-65016-0 PUMP CASE (UPPER)PUMP CASE (UPPER)
-
183R0-65011-0 PUMP CASE LINERPUMP CASE LINER
-
193B7-65014-0 WATER PIPE SEAL (LOWER)WATER PIPE SEAL (LOWER)
-
20346-65017-2 PUMP CASE (LOWER)PUMP CASE (LOWER)
-
21346-65013-0 OIL SEAL 17-30-9OIL SEAL 17-30-9
-
22348-65029-1 GUIDE PLATE GASKETGUIDE PLATE GASKET
-
233R0-65018-0 PUMP CASE GASKETPUMP CASE GASKET
-
24334-65012-0 DOWEL PIN 4-10DOWEL PIN 4-10
-
25336-62415-0 O-RING 3.5-36O-RING 3.5-36
-
263R0-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
279101E3-5652 BOLTBOLT
-
28346-64081-0 SHIM 35-41.9-0.1SHIM 35-41.9-0.1
-
28346-64082-0 SHIM 35-41.9-0.15SHIM 35-41.9-0.15
-
28346-64083-0 SHIM 35-41.9-0.3SHIM 35-41.9-0.3
-
28346-64084-0 SHIM 35-41.9-0.5SHIM 35-41.9-0.5
-
293NV-66012-0 CAM ROD (S)
for Transom "S"CAM ROD (S)
for Transom "S" -
293NV-66013-0 CAM ROD (L)
for Transom "L"CAM ROD (L)
for Transom "L" -
293NV-66014-0 CAM ROD (UL)
for Transom "UL"CAM ROD (UL)
for Transom "UL" -
303AC-66011-1 CLUTCH CAMCLUTCH CAM
-
31951407-0312 SPRING PIN 3-12SPRING PIN 3-12
-
323R0-66031-0 CAM ROD BUSHINGCAM ROD BUSHING
-
33332-66021-0 O-RING 2.4-5.8O-RING 2.4-5.8
-
343C8-66032-0 O-RING 3.5-21.7O-RING 3.5-21.7
-
359101E3-5612 BOLTBOLT
-
363R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
37346-66037-0 CAM ROD HOLDER
for Transom "UL"CAM ROD HOLDER
for Transom "UL" -
389161E3-0840 BOLTBOLT
-
399161E3-0845 BOLT
for Transom "L"BOLT
for Transom "L" -
409153E3-0830 STUD
for Transom "S"STUD
for Transom "S" -
419301E3-0800 NUT
for Transom "S"NUT
for Transom "S" -
429401E3-0800 WASHER
Gear CaseWASHER
Gear Case -
433R0-65100-0 WATER PIPE (S)
for Transom "S"WATER PIPE (S)
for Transom "S" -
433R0-65110-0 WATER PIPE (L)
for Transom "L"WATER PIPE (L)
for Transom "L" -
433R0-65120-0 WATER PIPE (UL)
for Transom "UL"WATER PIPE (UL)
for Transom "UL" -
443R0-65206-0 WATER PIPE SEAL (UPPER)WATER PIPE SEAL (UPPER)
-
4598AM120-015 HOSE
for Transom "L"&"UL"HOSE
for Transom "L"&"UL" -
463A1-60235-0 WATER STRAINER SETWATER STRAINER SET
-
47930403-0400 * NYLON NUT 4-P0.7* NYLON NUT 4-P0.7
-
48921503-0430 * SCREW* SCREW
