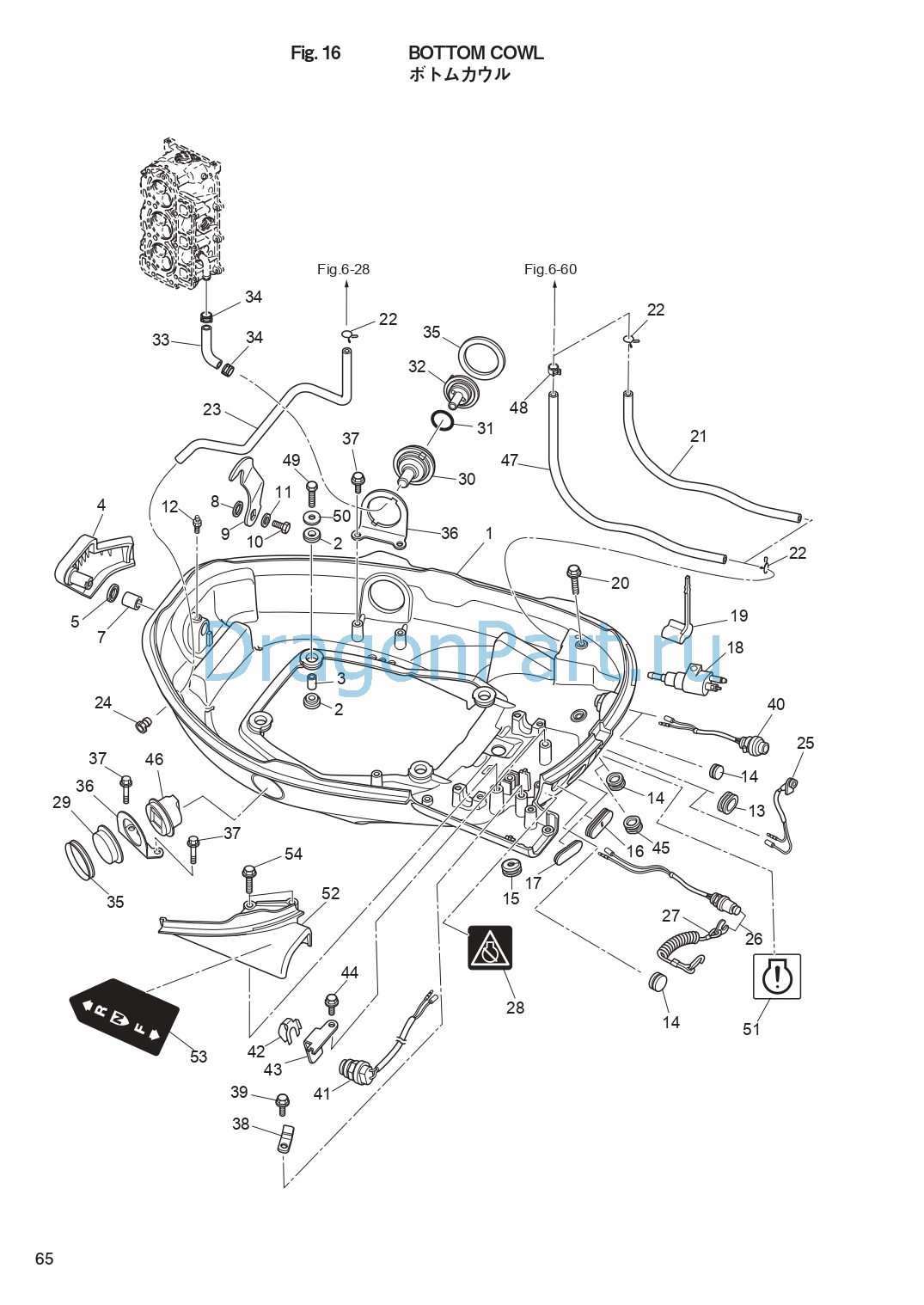

BOTTOM COWL для Tohatsu MFS25C - 2017 года выпуска`

№

Артикул

Название
1

3NVQ67100-0 BOTTOM COWL

BOTTOM COWL

41 580 ₽
2

346-67113-0 MOUNT 8.5-14-2.5

MOUNT 8.5-14-2.5

290 ₽
3

346-67114-1 SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

260 ₽
4

3NV-67141-0 HOOK LEVER

HOOK LEVER

2 370 ₽
5

338-67147-0 SEAL RING 13.8-22-3.7

SEAL RING 13.8-22-3.7

300 ₽
7

350-67105-0 HOOK LEVER BUSHING 14-16.5-17.7

HOOK LEVER BUSHING 14-16.5-17.7

190 ₽
8

941403-1400 WAVE WASHER d=14

WAVE WASHER d=14

230 ₽
9

3NV-67142-0 COVER HOOK

COVER HOOK

730 ₽
10

9101E3-0612 BOLT

BOLT

140 ₽
11

3R0-66308-0 WASHER 6-16-1.5

WASHER 6-16-1.5

190 ₽
12

344-67177-1 GREASE FITTING

GREASE FITTING

380 ₽
13

3R3-67162-0 GROMMET 25-15-3

GROMMET 25-15-3

230 ₽
14

345-67117-0 GROMMET 17-2.7
for MF/EPT/EHT Type PTT Cord, Stop SW

GROMMET 17-2.7
for MF/EPT/EHT Type PTT Cord, Stop SW

360 ₽
14

345-67117-0 GROMMET 17-2.7
for EF/EFG Type

GROMMET 17-2.7
for EF/EFG Type

360 ₽
14

345-67117-0 GROMMET 17-2.7
for EP/EH Type

GROMMET 17-2.7
for EP/EH Type

360 ₽
15

3KY-67117-0 GROMMET

GROMMET

450 ₽
16

3NW-63624-0 GROMMET
for MF/EF/EFG Type Throttle Wire

GROMMET
for MF/EF/EFG Type Throttle Wire

610 ₽
17

3NV-63624-0 GROMMET
for EP/EH/EPT/EHT Type Throttle Wire

GROMMET
for EP/EH/EPT/EHT Type Throttle Wire

330 ₽
18

394-70260-0 FUEL CONNECTOR (MALE)

FUEL CONNECTOR (MALE)

4 880 ₽
19

3H6-70262-0 FUEL CONNECTOR PROTECTOR

FUEL CONNECTOR PROTECTOR

1 850 ₽
20

9101E3-5630 BOLT

BOLT

230 ₽
21

98AB-50-370 HOSE
98AB-501000

HOSE
98AB-501000

610 ₽
22

338-02215-0 CLIP φ10
Fuel Hose, Water Hose

CLIP φ10
Fuel Hose, Water Hose

140 ₽
23

98AR-50-480 HOSE

HOSE

500 ₽
24

3T1-01138-0 NIPPLE 6-8-11

NIPPLE 6-8-11

360 ₽
25

3R3-71040-0 PILOT LAMP ASSY

PILOT LAMP ASSY

2 270 ₽
26

398-06830-0 STOP SWITCH ASSY
for F Type

STOP SWITCH ASSY
for F Type

6 700 ₽
27

353-06821-0 * STOP SWITCH LANYARD ASSY

* STOP SWITCH LANYARD ASSY

1 340 ₽
28

3AC-72200-0 STOP SWITCH DECL
for F Type

STOP SWITCH DECL
for F Type

210 ₽
29

3KY-72618-0 GROMMET
except PTT Type

GROMMET
except PTT Type

300 ₽
30

3T1-72403-0 FLUSHING CONNECTOR

FLUSHING CONNECTOR

910 ₽
31

3R0-07422-0 O-RING 3.1-24.4

O-RING 3.1-24.4

210 ₽
32

3T1-72404-0 FLUSHING CONNECTOR CAP

FLUSHING CONNECTOR CAP

990 ₽
33

3FW-72410-1 FLUSHING HOSE

FLUSHING HOSE

1 370 ₽
34

3T1-07737-1 CLIP φ17.8

CLIP φ17.8

230 ₽
35

3F3-72616-1 GASKET
PTT Switch Flushing Connector

GASKET
PTT Switch Flushing Connector

290 ₽
36

3NV-72617-0 PTT SWITCH ASSY BRACKET
PTT Switch Flushing Connector

PTT SWITCH ASSY BRACKET
PTT Switch Flushing Connector

670 ₽
37

9101E3-5616 BOLT
PTT Switch Flushing Connector

BOLT
PTT Switch Flushing Connector

320 ₽
38

3NV-63628-0 CLAMP
for F Type

CLAMP
for F Type

600 ₽
39

9101E3-5616 BOLT
for F Type

BOLT
for F Type

320 ₽
40

3AA-76026-0 MAIN SWITCH ASSY
for EF/EFG Type

MAIN SWITCH ASSY
for EF/EFG Type

1 650 ₽
41

3NV-76080-0 NEUTRAL SWITCH
except MF Type

NEUTRAL SWITCH
except MF Type

4 390 ₽
42

398-76083-0 NEUTRAL SWITCH ACTUATOR
except MF Type

NEUTRAL SWITCH ACTUATOR
except MF Type

690 ₽
43

3NV-76081-0 NEUTRAL SWITCH BRACKET
except MF Type

NEUTRAL SWITCH BRACKET
except MF Type

490 ₽
44

9101E3-5616 BOLT
except MF Type

BOLT
except MF Type

320 ₽
45

338-67163-0 GROMMET 18-2.5
for EPT/EHT Type PT Cord

GROMMET 18-2.5
for EPT/EHT Type PT Cord

190 ₽
46

3AC-72615-0 PTT SWITCH ASSY
for EPT/EHT Type

PTT SWITCH ASSY
for EPT/EHT Type

7 280 ₽
47

3NW-04055-0 LOW PERMEATION HOSE
Low Permeation Parts for USA Model

LOW PERMEATION HOSE
Low Permeation Parts for USA Model

1 400 ₽
48

3GT-35143-0 CLIP φ9.4
for USA Model

CLIP φ9.4
for USA Model

170 ₽
49

9101E3-0630 BOLT

BOLT

170 ₽
50

346-67115-0 WASHER 6.5-21-1

WASHER 6.5-21-1

320 ₽
51

3AC-76190-0 WARNING DECAL

WARNING DECAL

270 ₽
52

3NVQ67483-0 REMOTE CONT CABLE STAY

REMOTE CONT CABLE STAY

3 290 ₽
53

3NV-67578-0 SHIFT DECAL
for F Type

SHIFT DECAL
for F Type

280 ₽
54

9101E3-5630 BOLT

BOLT

230 ₽
