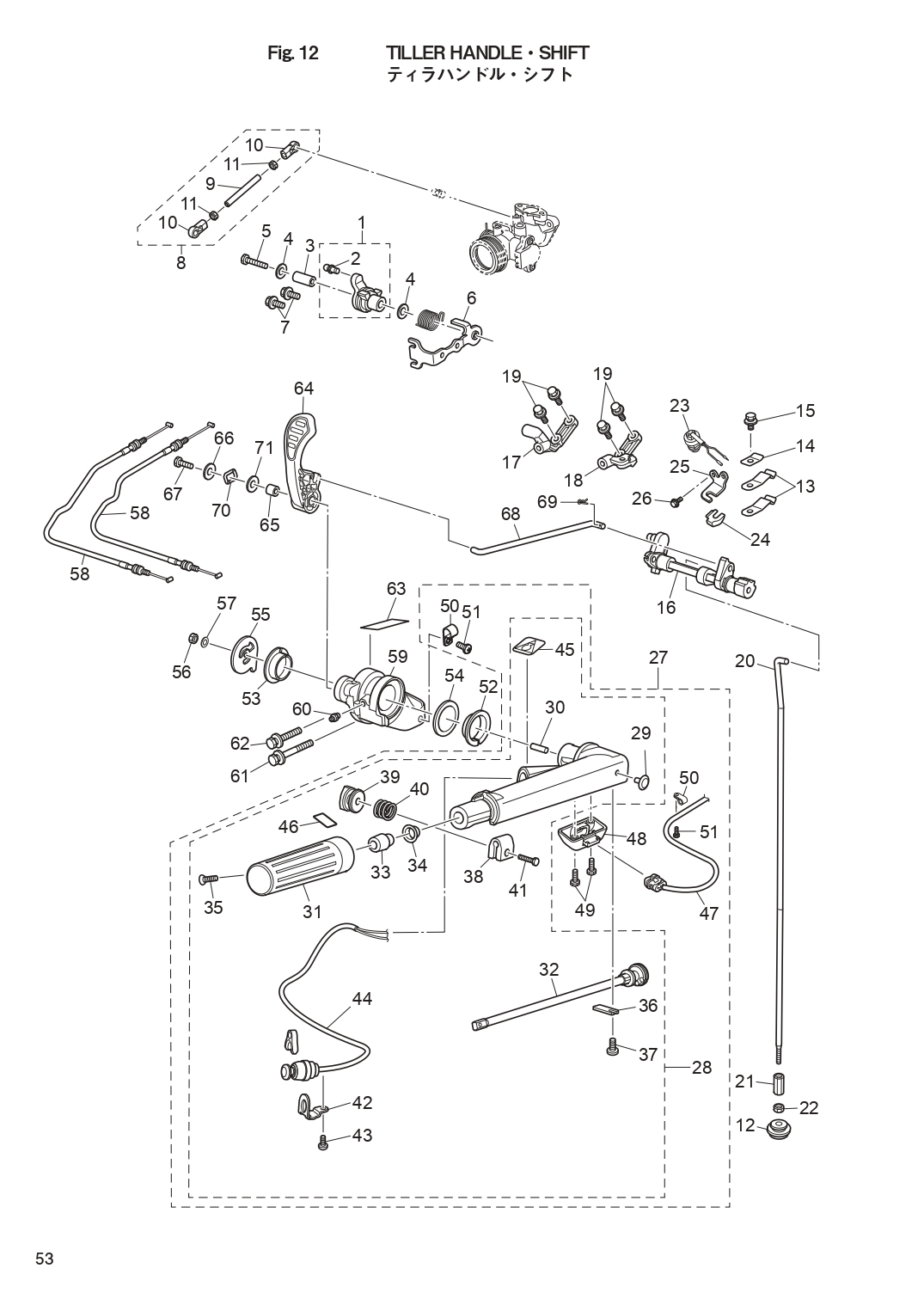

TILLER HANDLE SHIFT для Tohatsu MFS15E - 2017 года выпуска
-
№АртикулНазвание
-
13RS-63622-0 THROTTLE DRUM ASSYTHROTTLE DRUM ASSY
-
23AC-05228-0 * BALL JOINT* BALL JOINT
-
33RS-66124-0 COLLARCOLLAR
-
43C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
5910103-0640 BOLTBOLT
-
63RS-63508-0 THROTTLE WIRE BRACKETTHROTTLE WIRE BRACKET
-
7910103-5616 BOLTBOLT
-
83RS-63610-0 LINK ROD ASSY (THROTTLE)LINK ROD ASSY (THROTTLE)
-
93RS-63617-0 * THROTTLE ROD* THROTTLE ROD
-
103B7-05243-0 * BALL JOINT CONNECTOR* BALL JOINT CONNECTOR
-
11930103-0500 * NUT* NUT
-
123RS-66043-0 GROMMETGROMMET
-
133GF-66113-1 SHIFT LEVER STOPPERSHIFT LEVER STOPPER
-
143Y1-66117-0 SHIFT LEVER STOPPER t=0.8SHIFT LEVER STOPPER t=0.8
-
15910103-5612 BOLTBOLT
-
163RS-66130-0 SHIFT LEVER SHAFT ASSYSHIFT LEVER SHAFT ASSY
-
173RS-66145-0 HOLDERHOLDER
-
183RT-66145-0 HOLDERHOLDER
-
19910103-5620 BOLTBOLT
-
203RS-66214-0 SHIFT ROD (S)SHIFT ROD (S)
-
203RS-66215-0 SHIFT ROD (L)SHIFT ROD (L)
-
213AA-66241-0 SHIFT ROD JOINTSHIFT ROD JOINT
-
22930103-0500 NUTNUT
-
233NV-76080-0 NEUTRAL SWITCHNEUTRAL SWITCH
-
24398-76083-0 NEUTRAL SWITCH ACTUATORNEUTRAL SWITCH ACTUATOR
-
253RS-76081-0 NEUTRAL SWITCH BRACKETNEUTRAL SWITCH BRACKET
-
26910103-5616 BOLTBOLT
-
273RSQ63003-0 TILLER HANDLE ASSY
PT Type 3RTQ63003-0TILLER HANDLE ASSY
PT Type 3RTQ63003-0 -
283RTQ63003-0 * TILLER HANDLE ASSY
3RSQ63003-0* TILLER HANDLE ASSY
3RSQ63003-0 -
29350-67154-0 ** PLASTIC RIVET 6.5** PLASTIC RIVET 6.5
-
303B2-63104-1 ** STUD** STUD
-
313R3-63012-0 ** GRIP** GRIP
-
323V1-63041-0 ** THROTTLE SHAFT** THROTTLE SHAFT
-
333H6-63048-0 ** THROTTLE SHAFT DAMPER** THROTTLE SHAFT DAMPER
-
343H6-63510-0 ** BUSHING 14-15.8-7** BUSHING 14-15.8-7
-
35921803-0520 ** SCREW** SCREW
-
363B2-63063-0 ** THROTTLE SHAFT SUPPORT** THROTTLE SHAFT SUPPORT
-
379215E3-0612 ** SCREW** SCREW
-
383V1-63035-1 ** FRICTION PIECE** FRICTION PIECE
-
393V1-63077-0 ** ADJUSTING NUT** ADJUSTING NUT
-
403V1-63036-0 ** SPRING** SPRING
-
419101E3-0625 ** BOLT** BOLT
-
423RS-06869-0 ** BRACKET** BRACKET
-
439215E3-0612 ** SCREW** SCREW
-
443RS-06830-0 ** STOP SWITCH ASSY** STOP SWITCH ASSY
-
453AC-72200-0 ** STOP SWITCH DECAL** STOP SWITCH DECAL
-
463AC-72019-0 ** THROTTLE DECAL** THROTTLE DECAL
-
473RS-72615-0 * PTT SWITCH ASSY
PT Type* PTT SWITCH ASSY
PT Type -
483V1-76032-0 * SWITCH BOX
PT Type* SWITCH BOX
PT Type -
499215E3-0516 * SCREW
PT Type* SCREW
PT Type -
50336-06973-0 * CLAMP 6-9.5L
PT Type* CLAMP 6-9.5L
PT Type -
519215E3-0512 * SCREW
PT Type* SCREW
PT Type -
523V1-63102-0 BUSHINGBUSHING
-
533RS-63102-0 BUSHINGBUSHING
-
543RS-63108-0 WASHERWASHER
-
553RS-63107-0 COVERCOVER
-
569301E3-0600 NUTNUT
-
579402E3-0600 WASHERWASHER
-
583RS-63600-0 THROTTLE WIRETHROTTLE WIRE
-
593RSQ62001-0 STEERING BRACKETSTEERING BRACKET
-
60344-67177-1 GREASE FITTINGGREASE FITTING
-
613RS-63201-0 BOLTBOLT
-
623RT-63201-0 BOLTBOLT
-
633V9-67578-3 SHIFT DECALSHIFT DECAL
-
643RS-66110-0 SHIFT LEVERSHIFT LEVER
-
653H6-63619-1 COLLAR 6.5-10.5-10COLLAR 6.5-10.5-10
-
66346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
679101E3-0620 BOLTBOLT
-
683RT-66134-0 SHIFT LEVER RODSHIFT LEVER ROD
-
69951603-0500 SNAP PIN d=5SNAP PIN d=5
-
703RS-05259-0 WAVE WASHERWAVE WASHER
-
713RS-61315-0 WASHERWASHER
