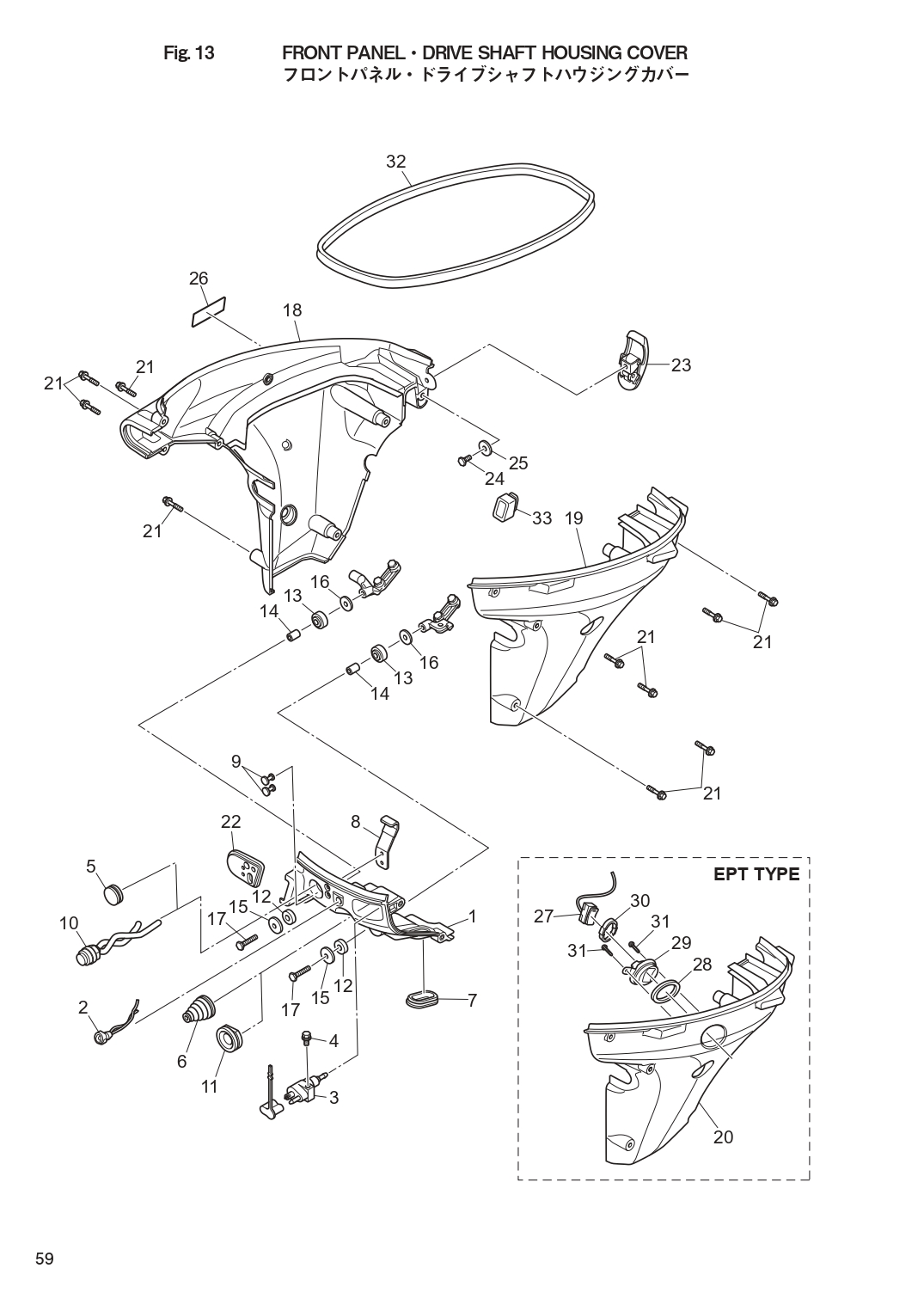

FRONT PANEL DRIVE SHAFT HOUSING COVER для Tohatsu MFS15E - 2017 года выпуска
-
№АртикулНазвание
-
13RSQ67010-0 FRONT PANELFRONT PANEL
-
23R3-71040-0 PILOT LAMP ASSYPILOT LAMP ASSY
-
3394-70260-0 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
4910103-5616 BOLTBOLT
-
5345-67117-0 GROMMET 17-2.7
Main Switch Hole M typeGROMMET 17-2.7
Main Switch Hole M type -
63RS-66260-0 GROMMET
Shift Rod Hole FtypeGROMMET
Shift Rod Hole Ftype -
73R3-66226-0 GROMMET 40-18-3GROMMET 40-18-3
-
83RS-67512-0 COVER STAY (FRONT)COVER STAY (FRONT)
-
93AL-67592-0 RIVET 4-12.9-2.4RIVET 4-12.9-2.4
-
103AA-76026-0 MAIN SWITCH ASSY
E typeMAIN SWITCH ASSY
E type -
11345-67161-0 GROMMET 22-3
Shift Rod Hole P typeGROMMET 22-3
Shift Rod Hole P type -
12346-67113-0 MOUNT 8.5-14-2.5MOUNT 8.5-14-2.5
-
133B7-06920-0 RUBBER MOUNT 8.5-14-2.5RUBBER MOUNT 8.5-14-2.5
-
143RS-63619-0 COLLARCOLLAR
-
153BJ-67115-0 WASHER 6.5-20.5-1WASHER 6.5-20.5-1
-
16346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
179101E3-0630 BOLTBOLT
-
183RSQ67003-0 DRIVE SHAFT HOUSING COVER (R)DRIVE SHAFT HOUSING COVER (R)
-
193RSQ67004-0 DRIVE SHAFT HOUSING COVER (L)DRIVE SHAFT HOUSING COVER (L)
-
203RTQ67004-0 DRIVE SHAFT HOUSING COVER (L)DRIVE SHAFT HOUSING COVER (L)
-
213RS-67485-0 BOLTBOLT
-
223RS-63621-0 GROMMET
F typeGROMMET
F type -
233AA-67120-1 COWL LATCH ASSYCOWL LATCH ASSY
-
24910103-0612 BOLTBOLT
-
25345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
263H6-67572-0 STORAGE DECALSTORAGE DECAL
-
273SY-72615-0 PTT SWITCH ASSYPTT SWITCH ASSY
-
283F3-72616-1 GASKETGASKET
-
293SY-76032-0 SWITCH BOXSWITCH BOX
-
303SY-76035-0 SWITCH BOX GROMMETSWITCH BOX GROMMET
-
319215E3-5512 SCREWSCREW
-
323RS-67501-0 TOP COWL SEALTOP COWL SEAL
-
333RS-61212-0 GROMMETGROMMET
