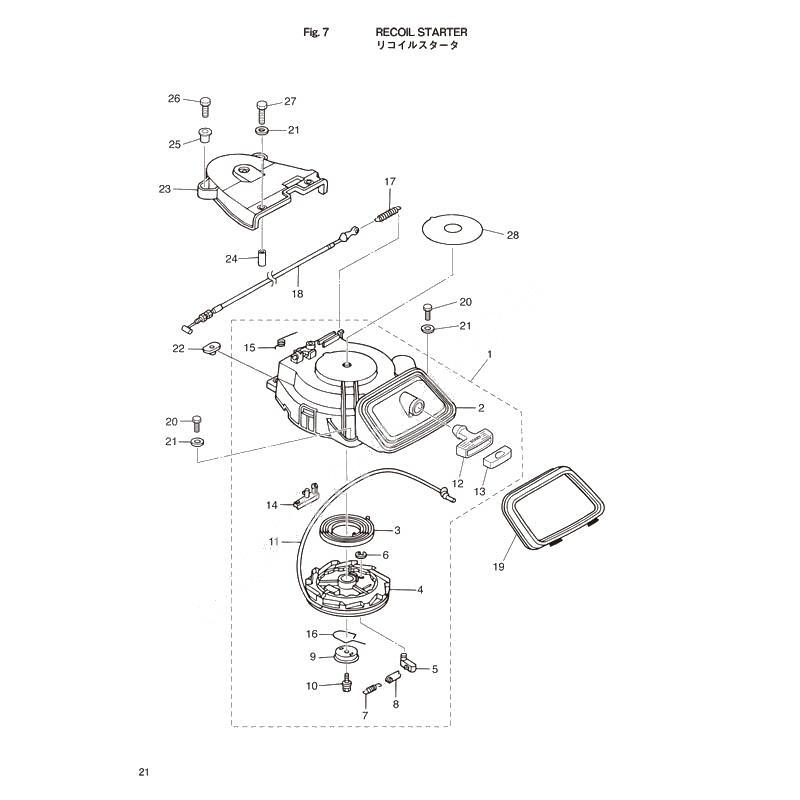

Recoil starter для Tohatsu MFS25C - 2016 года выпуска`
-
№АртикулНазвание
-
13AC-05090-0 Recoil starterRecoil starter
-
23AC-05105-0 Starter CaseStarter Case
-
33H8-05004-0 Starter SpringStarter Spring
-
43R3-05106-0 ReelReel
-
53R3-05003-0 RatchetRatchet
-
63R3-05011-0 E-Ring,d=10E-Ring,d=10
-
73R3-05012-0 Return SpringReturn Spring
-
83H8-05123-1 Return SpringReturn Spring
-
93R3-05006-0 Friction PlateFriction Plate
-
103R3-05138-0 Bolt,Starter ShaftBolt,Starter Shaft
-
113R3-05013-0 Starter RopeStarter Rope
-
123AC-05019-0 Starter HandleStarter Handle
-
133AB-05131-0 Rope anchorRope anchor
-
143R3-05252-0 Starter LockStarter Lock
-
153R3-05216-0 SpringSpring
-
163R3-05007-0 Friction SpringFriction Spring
-
173AC-05258-0 Cam spring starter lockCam spring starter lock
-
183AC-05207-0 Starter lock cableStarter lock cable
-
193NV-67503-0 スタ-タシ-ルスタ-タシ-ル
-
203AL-60108-0 プレコ-トボルト 10φ-20(M6P1.0？)プレコ-トボルト 10φ-20(M6P1.0？)
-
213C8-66308-0 ワッシャ 6-16-1.5
ベルトカバーワッシャ 6-16-1.5
ベルトカバー -
223F3-76042-2 NutNut
-
233R3-06308-0 Belt VoverBelt Vover
-
243R0-06303-1 カラー 6.2-9-12.3カラー 6.2-9-12.3
-
3R0-06303-0 カラー 6.2-9-12.3カラー 6.2-9-12.3
-
253BJ-06283-0 カラー 6.1-9-8.9カラー 6.1-9-8.9
-
26910103-0620 BoltBolt
-
27910103-0625 BoltBolt
-
283NV-72181-0 コーションデカール (B)コーションデカール (B)
