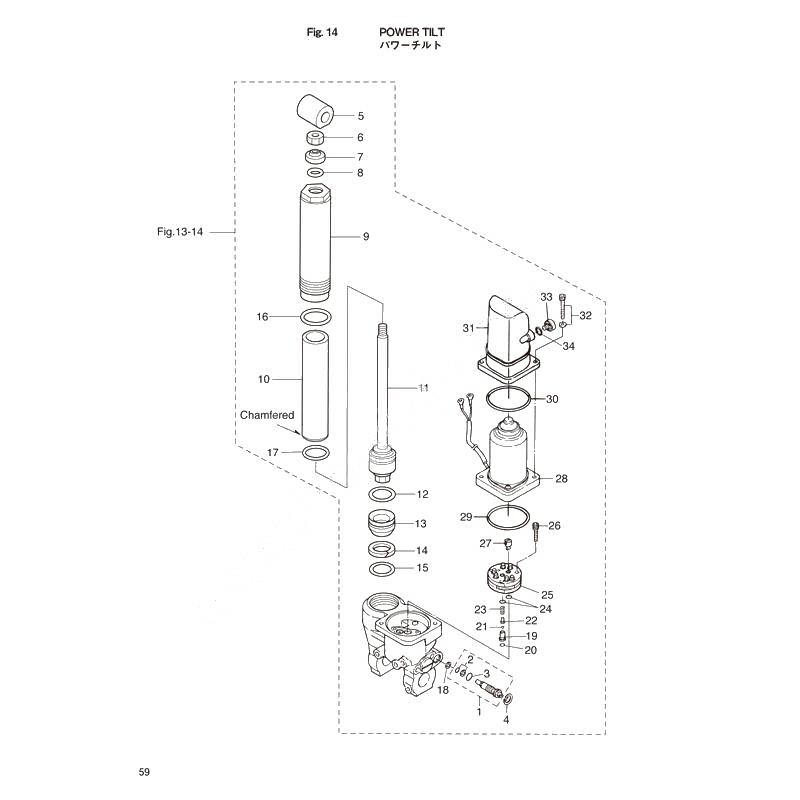

Power tilt для Tohatsu MFS25C - 2016 года выпуска`
-
№АртикулНазвание
-
13AC-77175-0 Manual valve assyManual valve assy
-
23R0-77409-0 Seal SetSeal Set
-
33R0-77177-0 O-Ring,2.4-9.8O-Ring,2.4-9.8
-
43Z5-77171-0 C-RingC-Ring
-
53AD-77367-0 JointJoint
-
63AC-77374-0 NutNut
-
73AC-77382-0 Dust sealDust seal
-
83AC-77384-0 Oリング 2.4-12.3Oリング 2.4-12.3
-
93AC-77361-0 CylinderCylinder
-
103AC-77363-0 Inner tubeInner tube
-
113AC-77365-0 Piston rod assyPiston rod assy
-
123AC-77375-0 Oリング 2-28.5Oリング 2-28.5
-
133AC-77377-0 Free PistonFree Piston
-
143AC-77376-0 Back-up RingBack-up Ring
-
153AC-77398-0 Oリング 2.4-27.7Oリング 2.4-27.7
-
163AC-77392-0 Oリング 2-43.5Oリング 2-43.5
-
173AC-77383-0 Oリング 2-34.5Oリング 2-34.5
-
183AC-77173-0 Seal WasherSeal Washer
-
193AC-77453-0 Valve SeatValve Seat
-
203R0-77451-0 O-Ring,1.5-3.5O-Ring,1.5-3.5
-
213R0-77457-0 BallBall
-
223AC-77454-0 Spring seatSpring seat
-
233R0-77455-0 SpringSpring
-
243B7-77433-0 O-RingO-Ring
-
253R0-77430-0 PumpPump
-
263B7-77431-1 BoltBolt
-
273E0-77163-0 Coupling PumpCoupling Pump
-
283AC-77180-0 Ptt motorPtt motor
-
293R0-77167-0 O-Ring,2-62.5O-Ring,2-62.5
-
303C8-77182-0 O-Ring, 2.4-66.6O-Ring, 2.4-66.6
-
313R0-77165-0 Reservoir TankReservoir Tank
-
323R0-77159-0 BoltBolt
-
333R0-77168-0 Cap Ass'yCap Ass'y
-
343R0-77169-0 O-Ring,1.9-9.8O-Ring,1.9-9.8
