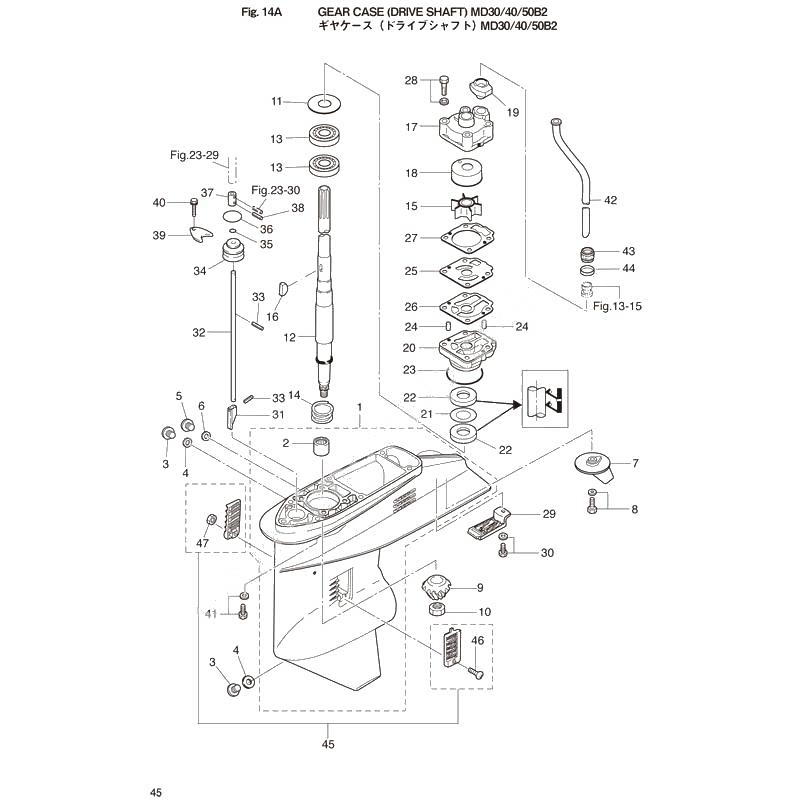

Gear case (drive shaft) для Tohatsu MD40B2 - 2016 года выпуска`
-
№АртикулНазвание
-
13C8Q60090-1 Gear case assy
トランサムULモデルGear case assy
トランサムULモデル -
2345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 ギヤオイルパッキン ガスケット 8.1-15-1ギヤオイルパッキン ガスケット 8.1-15-1
-
53B7-60015-1 Water PlugWater Plug
-
63B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
73C8-60217-1 Trim TabTrim Tab
-
8910103-5620 New partNew part
-
93C8-64020-2 ベベルギアベベルギア
-
103C8-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
11345-64084-0 Shim,41-51.5-0.5
選択Shim,41-51.5-0.5
選択 -
123C8-64303-0 Drive Shaft UL
トランサムULモデルDrive Shaft UL
トランサムULモデル -
133C8-60213-0 Ball Bearing 6304Ball Bearing 6304
-
143C8-64327-0 Spring Drive ShaftSpring Drive Shaft
-
153C8-65021-2 Impeller water pumpImpeller water pump
-
16332-65022-0 Key, pump impeller
ポンプインペラKey, pump impeller
ポンプインペラ -
173T5-65016-0 Water Pump CaseWater Pump Case
-
183T5-65011-0 Liner, Water Pump CaseLiner, Water Pump Case
-
193C8-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
203C8-65017-1 Lower Water Pump CaseLower Water Pump Case
-
213C8-64084-0 Shim,32.9-26-0.5Shim,32.9-26-0.5
-
223C8-60223-0 Packing 17-33-6Packing 17-33-6
-
23345-65015-0 O-Ring 3.2-47O-Ring 3.2-47
-
24334-65012-0 Dowel Pin 4-10Dowel Pin 4-10
-
253C8-65025-0 GUIDE PLATE,PUMPGUIDE PLATE,PUMP
-
263C8-65029-2 Gasket Pump Guide PlateGasket Pump Guide Plate
-
273T5-65018-2 Gasket, Water Pump CaseGasket, Water Pump Case
-
289101E3-5855 New partNew part
-
910103-5855 New partNew part
-
293C8-60204-0 Sub Water StrainerSub Water Strainer
-
30910103-5616 BoltBolt
-
313C8-66011-0 Clutch CamClutch Cam
-
323C8-66014-0 Cam Rod UL
トランサムULモデルCam Rod UL
トランサムULモデル -
33951407-0312 Spring PinSpring Pin
-
343C8-66031-1 Bushing Cam RodBushing Cam Rod
-
35332-66021-0 O-Ring 2.4-5.8O-Ring 2.4-5.8
-
363C8-66032-0 O-ring 3.5-21.7O-ring 3.5-21.7
-
373C8-66241-0 Joint Shift RodJoint Shift Rod
-
38951403-0312 Spring WasherSpring Washer
-
39353-66024-0 Stopper
MD トランサムULモデル MWD トランサムLモデルStopper
MD トランサムULモデル MWD トランサムLモデル -
409101E3-5612 New partNew part
-
419101E3-5835 New partNew part
-
423C8-65120-0 Water Pipe UL
トランサムULモデルWater Pipe UL
トランサムULモデル -
43345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
44345-65205-0 Set Ring Water PipeSet Ring Water Pipe
-
453C8-60205-1 Water Strainer SetWater Strainer Set
-
46921503-0438 ScrewScrew
-
47930403-0400 Nylon NutNylon Nut
