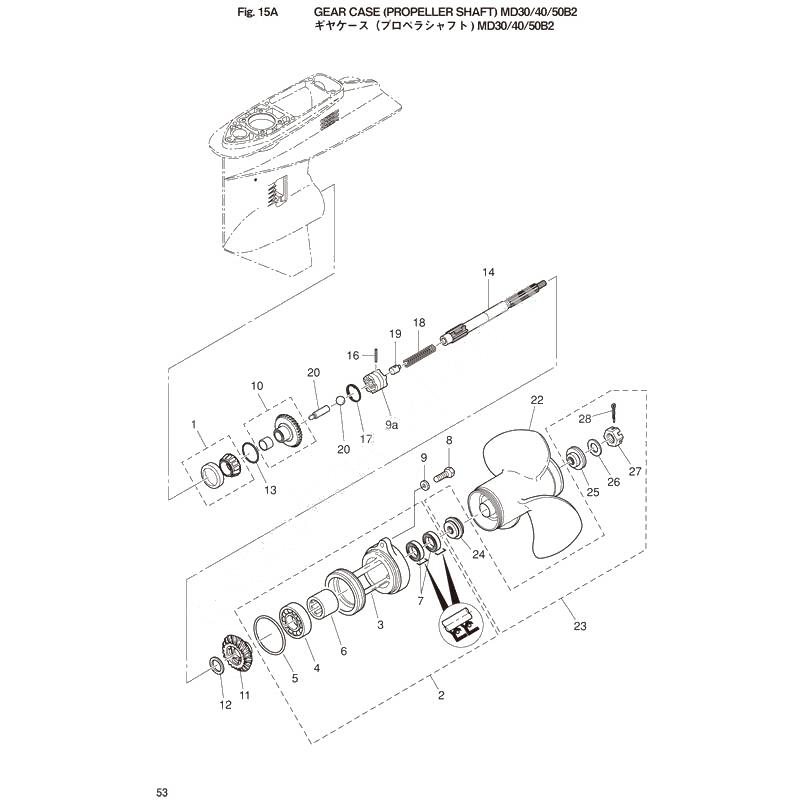

Gear case (proppeller shaft) для Tohatsu MD40B2 - 2016 года выпуска`
-
№АртикулНазвание
-
1345-60215-0 テーパーローラーベアリングテーパーローラーベアリング
-
23C8Q60100-1 プロペラシヤフトアツシープロペラシヤフトアツシー
-
33C8Q60101-1 Propeller shaft housingPropeller shaft housing
-
49601-0-6007 ボールベアリングボールベアリング
-
5345-60103-0 O-Ring 3.53-69.44O-Ring 3.53-69.44
-
6345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
73F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
83C8-60108-2 Bolt 6-25Bolt 6-25
-
99401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
103C8-64010-1 Bevel Gear A Ass'yBevel Gear A Ass'y
-
113C8-64030-0 Bevel Gear CBevel Gear C
-
12345-64032-0 Washer 22.1-28-3Washer 22.1-28-3
-
13353-64038-0 Shim,36-44-0.1
選択Shim,36-44-0.1
選択 -
143C8-64211-0 Propeller ShaftPropeller Shaft
-
153C8-64215-2 ClutchClutch
-
163C8-64217-0 Clutch PinClutch Pin
-
173C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
183C8-64221-0 Spring ClutchSpring Clutch
-
193C8-64222-0 Spring holder clutchSpring holder clutch
-
203C8-64223-1 Push rod, clutchPush rod, clutch
-
21965002-0803 スチールボール、3/8スチールボール、3/8
-
22348B64108-1 プロペラアッシ (7)
OPT 4x290x180プロペラアッシ (7)
OPT 4x290x180 -
233TW-87326-0 プロペラハードウェアキットプロペラハードウェアキット
-
243C8-64231-0 Thrust holder propellerThrust holder propeller
-
253TW-64232-0 Steering stopperSteering stopper
-
263TW-64124-0 ワッシャ 17-40-3ワッシャ 17-40-3
-
27353-64121-0 Nut PropellerNut Propeller
-
28951503-0325 Split PinSplit Pin
