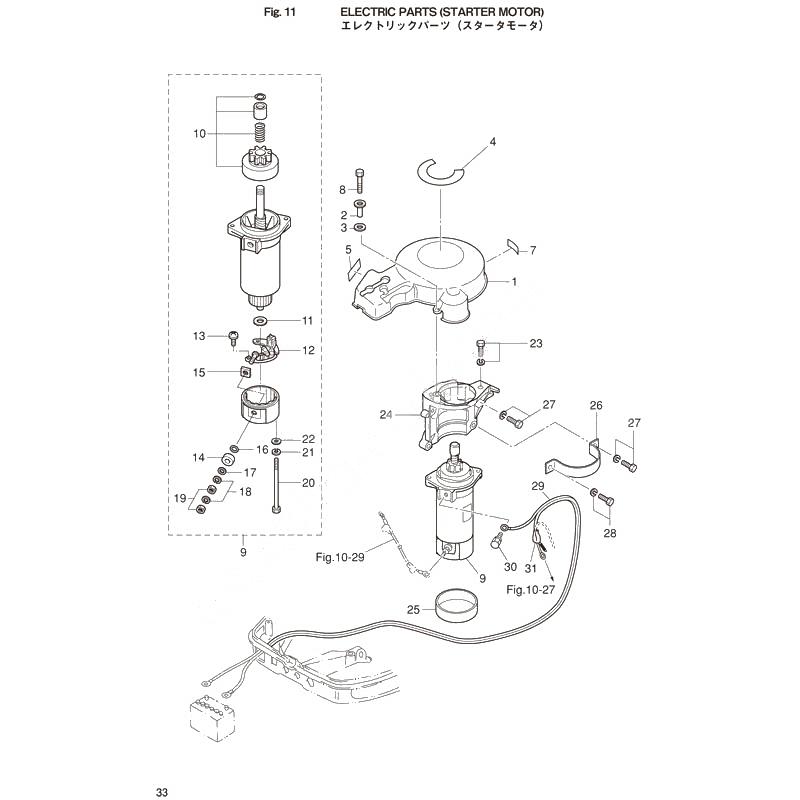

Electric parts (starter motor) для Tohatsu MD40B2 - 2016 года выпуска`
-
№АртикулНазвание
-
13T5-06301-0 Cover, Ring GearCover, Ring Gear
-
23GF-06304-0 カラ-カラ-
-
33B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
43KY-72181-1 コーションデカール (B)コーションデカール (B)
-
53Y9-72194-0 Label FuseLabel Fuse
-
73FW-72026-0 Spark Plug DecalSpark Plug Decal
-
8910103-0625 BoltBolt
-
93C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
103C8-76015-0 Pinion Ass'yPinion Ass'y
-
113C8-75015-0 WasherWasher
-
123C8-75014-0 Brush Holder Ass'yBrush Holder Ass'y
-
13921521-6408 ScrewScrew
-
143C8-75016-0 Bushing 1Bushing 1
-
153C8-75017-0 Bushing 2Bushing 2
-
163C8-75018-0 O-RingO-Ring
-
17940103-0600 WasherWasher
-
18941303-0600 スプリング ワッシャスプリング ワッシャ
-
19930203-0600 NutNut
-
203C8-75019-0 BoltBolt
-
21941321-0500 Spring WasherSpring Washer
-
22940221-0500 WasherWasher
-
23910103-6825 BoltBolt
-
243T5B05101-0 Bracket, Starter MotorBracket, Starter Motor
-
253C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
263C8-76009-0 Band Starter MotorBand Starter Motor
-
27910103-6825 BoltBolt
-
28910103-6820 BoltBolt
-
293B7-76120-2 Battery CordBattery Cord
-
30910103-6616 BoltBolt
-
313B7-76145-0 Terminal CapTerminal Cap
