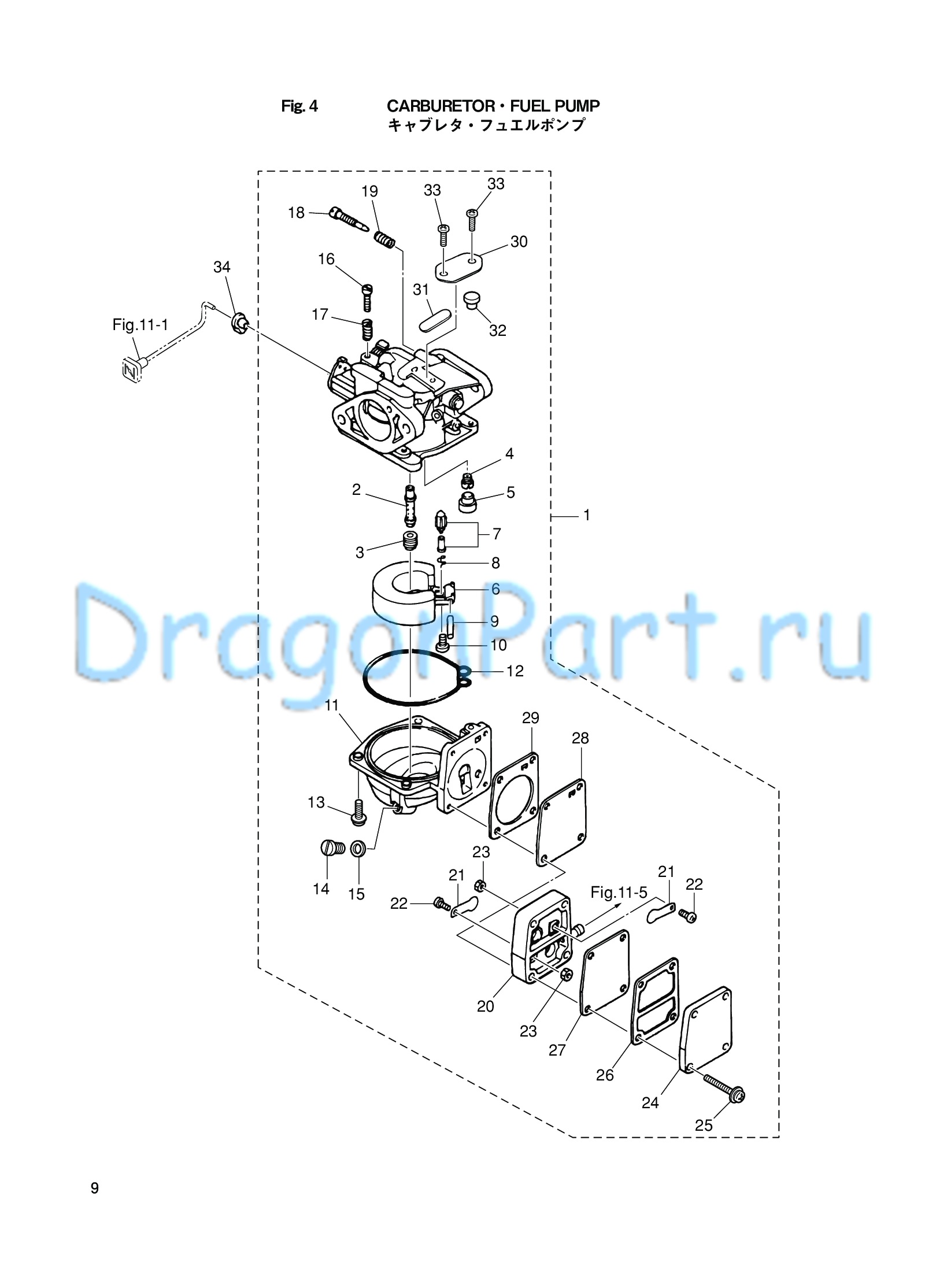

CARBURETOR FUEL PUMP для Tohatsu M8B - 2016 года выпуска`
-
№АртикулНазвание
-
13B2-03200-1 CARBURETOR ASSY
F43BCARBURETOR ASSY
F43B -
23B2-03252-0 * MAIN NOZZLE* MAIN NOZZLE
-
33B2-03251-0 * MAIN JET (#98)* MAIN JET (#98)
-
43B2-03254-0 * SLOW JET (#48)* SLOW JET (#48)
-
5346-03256-0 * RUBBER CAP* RUBBER CAP
-
6369-03231-0 * FLOAT* FLOAT
-
73R3-03239-0 * FLOAT VALVE ASSY
Valve Pin* FLOAT VALVE ASSY
Valve Pin -
8344-03244-0 * CLIP* CLIP
-
9346-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
103F3-03234-0 * SCREW* SCREW
-
113B2-03221-0 * FLOAT CHAMBER* FLOAT CHAMBER
-
12369-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
13922503-6414 * SCREW* SCREW
-
14369-03292-0 * DRAIN SCREW* DRAIN SCREW
-
15369-03293-1 * GASKET* GASKET
-
16346-03265-0 * STOP SCREW* STOP SCREW
-
17346-03267-0 * SPRING* SPRING
-
18346-03266-0 * PILOT SCREW* PILOT SCREW
-
19356-03268-0 * SPRING* SPRING
-
20369-03304-0 * PUMP BODY* PUMP BODY
-
21369-03305-0 * CHECK VALVE* CHECK VALVE
-
22921522-0306 * SCREW* SCREW
-
23930121-0300 * NUT* NUT
-
24369-03301-0 * PUMP COVER* PUMP COVER
-
25922553-6423 * SCREW* SCREW
-
26369-03302-0 * PUMP COVER GASKET* PUMP COVER GASKET
-
27369-03303-0 * DIAPHRAGM A* DIAPHRAGM A
-
28369-03306-0 * DIAPHRAGM B* DIAPHRAGM B
-
29369-03307-0 * PUMP BODY GASKET* PUMP BODY GASKET
-
30369-03181-0 * CARBURETOR COVER* CARBURETOR COVER
-
31369-03182-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
32369-03183-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
33369-03186-0 * SCREW* SCREW
-
34346-67196-1 ROD SNAP 3-BROD SNAP 3-B
