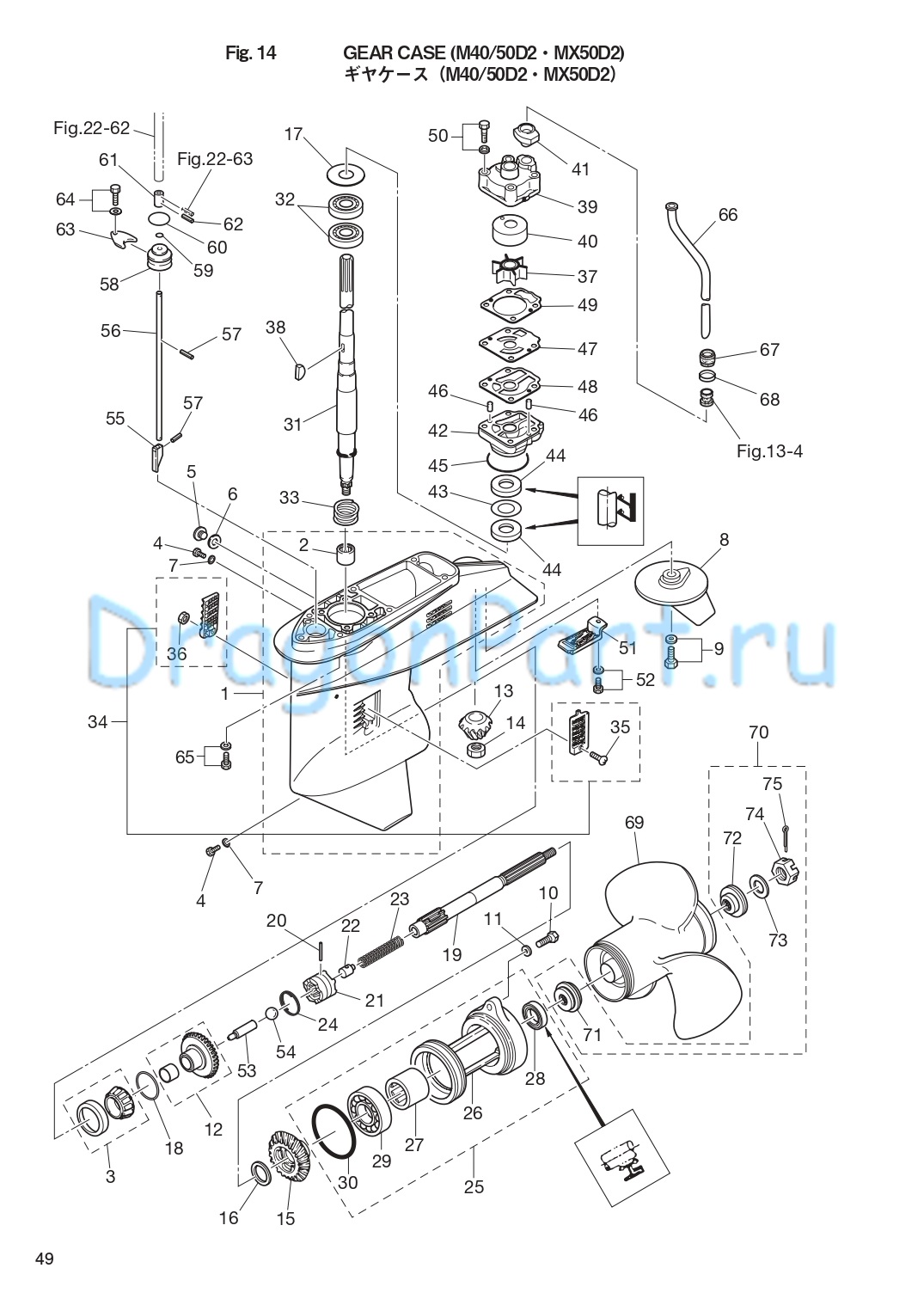

GEAR CASE (M40/50D2) для Tohatsu MWX50D2 - 2015 года выпуска`
-
№АртикулНазвание
-
13C8Q60000-0 GEAR CASE ASSY
for Transom “S” & “L"GEAR CASE ASSY
for Transom “S” & “L" -
13C8Q60090-0 GEAR CASE ASSY
for Transom "UL" Sub Water PipeGEAR CASE ASSY
for Transom "UL" Sub Water Pipe -
2345-60211-0 * ROLLER BEARING 22-30-30* ROLLER BEARING 22-30-30
-
3345-60215-0 TAPERED ROLLER BEARING 32007TAPERED ROLLER BEARING 32007
-
4332-60005-2 PLUGPLUG
-
53B7-60015-1 PLUGPLUG
-
63B7-60016-1 GASKET 10.1-15-1GASKET 10.1-15-1
-
7332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
83C8-60217-1 TRIM TABTRIM TAB
-
9910103-5620 BOLTBOLT
-
103C8-60108-1 PRE-COATED BOLT 6-25PRE-COATED BOLT 6-25
-
119401E3-0600 WASHERWASHER
-
123C8-64010-1 BEVEL GEAR ASSY (A)BEVEL GEAR ASSY (A)
-
133C8-64020-2 BEVEL GEAR BBEVEL GEAR B
-
143C8-64027-0 NUTNUT
-
153C8-64030-0 BEVEL GEAR CBEVEL GEAR C
-
16345-64032-0 WASHER 22.1-28-3WASHER 22.1-28-3
-
17345-64081-0 SHIM 41-51.5-0.1SHIM 41-51.5-0.1
-
17345-64082-0 SHIM 41-51.5-0.15SHIM 41-51.5-0.15
-
17345-64083-0 SHIM 41-51.5-0.3SHIM 41-51.5-0.3
-
17345-64084-0 SHIM 41-51.5-0.5SHIM 41-51.5-0.5
-
18353-64036-0 SHIM 36-44-0.3SHIM 36-44-0.3
-
18353-64037-0 SHIM 36-44-0.15SHIM 36-44-0.15
-
18353-64038-0 SHIM 36-44-0.1SHIM 36-44-0.1
-
193C8-64211-0 PROPELLER SHAFTPROPELLER SHAFT
-
203C8-64217-0 PINPIN
-
213C8-64215-2 CLUTCHCLUTCH
-
223C8-64222-0 SPRING RETAINERSPRING RETAINER
-
233C8-64221-0 SPRINGSPRING
-
243C8-64219-1 SNAPSNAP
-
253C8Q60100-0 PROPELLER SHAFT HOUSING ASSYPROPELLER SHAFT HOUSING ASSY
-
263C8Q60101-0 * PROPELLER SHAFT HOUSING* PROPELLER SHAFT HOUSING
-
27345-60211-0 * ROLLER BEARING 22-30-30* ROLLER BEARING 22-30-30
-
28334-60223-0 * OIL SEAL 22-36-10* OIL SEAL 22-36-10
-
299601-0-6007 * BALL BEARING 6007* BALL BEARING 6007
-
30345-60103-0 * O-RING 3.5-69.4* O-RING 3.5-69.4
-
313C8-64301-0 DRIVE SHAFT (S)
for Transom “S”DRIVE SHAFT (S)
for Transom “S” -
313C8-64302-0 DRIVE SHAFT (L)
for Transom “L”DRIVE SHAFT (L)
for Transom “L” -
313C8-64303-0 DRIVE SHAFT (UL)
for Transom “ULDRIVE SHAFT (UL)
for Transom “UL -
323C8-60213-0 BALL BEARING 6304BALL BEARING 6304
-
333C8-64327-0 DRIVE SHAFT SPRINGDRIVE SHAFT SPRING
-
343C8-60205-1 WATER STRAINER SETWATER STRAINER SET
-
35921503-0438 * SCREW* SCREW
-
36930403-0400 * NYLON NUT 4-P0.7* NYLON NUT 4-P0.7
-
373C8-65021-2 WATER PUMP IMPELLERWATER PUMP IMPELLER
-
38332-65022-0 KEYKEY
-
393T5-65016-0 PUMP CASE (UPPER)PUMP CASE (UPPER)
-
403T5-65011-0 PUMP CASE LINERPUMP CASE LINER
-
413C8-65014-0 WATER PIPE SEAL (LOWER)WATER PIPE SEAL (LOWER)
-
423C8-65017-1 PUMP CASE (LOWER)PUMP CASE (LOWER)
-
433C8-64084-0 SHIM 32.9-26-0.5SHIM 32.9-26-0.5
-
443C8-60223-0 OIL SEAL 17-33-6OIL SEAL 17-33-6
-
45345-65015-0 O-RING 3.2-47O-RING 3.2-47
-
46334-65012-0 DOWEL PIN 4-10DOWEL PIN 4-10
-
473C8-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
483C8-65029-2 GUIDE PLATE GASKETGUIDE PLATE GASKET
-
493T5-65018-2 PUMP CASE GASKETPUMP CASE GASKET
-
509101E3-5855 BOLTBOLT
-
513C8-60204-0 SUB-WATER INLET STRAINERSUB-WATER INLET STRAINER
-
52910103-5616 BOLTBOLT
-
533C8-64223-1 PUSH RODPUSH ROD
-
54965002-0803 BALL 3/8BALL 3/8
-
553C8-66011-0 CLUTCH CAMCLUTCH CAM
-
563C8-66012-0 CAM ROD (S)
for Transom “S”CAM ROD (S)
for Transom “S” -
563C8-66013-0 CAM ROD (L)
for Transom “L”CAM ROD (L)
for Transom “L” -
563C8-66014-0 CAM ROD (UL)
for Transom "UL"CAM ROD (UL)
for Transom "UL" -
57951407-0312 SPRING PIN 3-12SPRING PIN 3-12
-
583C8-66031-1 CAM ROD BUSHINGCAM ROD BUSHING
-
59332-66021-0 O-RING 2.4-5.8O-RING 2.4-5.8
-
603C8-66032-0 O-RING 3.5-21.7O-RING 3.5-21.7
-
613C8-66241-0 SHIFT ROD JOINTSHIFT ROD JOINT
-
62951403-0312 SPRING PIN 3-12SPRING PIN 3-12
-
63353-66024-0 STOPPERSTOPPER
-
64910103-6612 BOLTBOLT
-
659101E3-5835 BOLTBOLT
-
663C8-65100-0 WATER PIPE (S)
M40/50D2 for Transom "S" MW50D2 for Transom "L"WATER PIPE (S)
M40/50D2 for Transom "S" MW50D2 for Transom "L" -
663C8-65110-0 WATER PIPE (L)
M40/50D2 for Transom “L”WATER PIPE (L)
M40/50D2 for Transom “L” -
663C8-65120-0 WATER PIPE (UL)
M40/50D2 for Transom “ULWATER PIPE (UL)
M40/50D2 for Transom “UL -
67345-65206-0 WATER PIPE SEAL (UPPER)WATER PIPE SEAL (UPPER)
-
68345-65205-0 COLLAR 18-20-4.5COLLAR 18-20-4.5
-
693T5B64518-0 PROPELLER ASSY (9")
MX50D2:UL STD 3X311X229PROPELLER ASSY (9")
MX50D2:UL STD 3X311X229 -
693T5B64523-0 PROPELLER ASSY (11")
M40D2/MX50D2:S&L STD 3X290X279PROPELLER ASSY (11")
M40D2/MX50D2:S&L STD 3X290X279 -
693T5B64525-0 PROPELLER ASSY (12")
M50D2: S & L STD 3X283X305PROPELLER ASSY (12")
M50D2: S & L STD 3X283X305 -
693T5B64527-0 PROPELLER ASSY (13")
M50D2: UL STD 3X277X330PROPELLER ASSY (13")
M50D2: UL STD 3X277X330 -
69348B64108-0 PROPELLER ASSY (7")
OPT 4X 290X 180PROPELLER ASSY (7")
OPT 4X 290X 180 -
693T5B64529-0 PROPELLER ASSY (14")
OPT 3X 279X356PROPELLER ASSY (14")
OPT 3X 279X356 -
693T5B64532-0 PROPELLER ASSY (15")
OPT 3X 278X381PROPELLER ASSY (15")
OPT 3X 278X381 -
703T5-87326-0 PROPELLER HARDWARE KITPROPELLER HARDWARE KIT
-
713C8-64231-0 * THRUST HOLDER* THRUST HOLDER
-
72348-64232-0 * STOPPER* STOPPER
-
73345-64124-0 * WASHER 17-32-3* WASHER 17-32-3
-
74353-64121-0 * PROPELLER NUT* PROPELLER NUT
-
75951503-0325 * SPLIT PIN 3-25* SPLIT PIN 3-25
