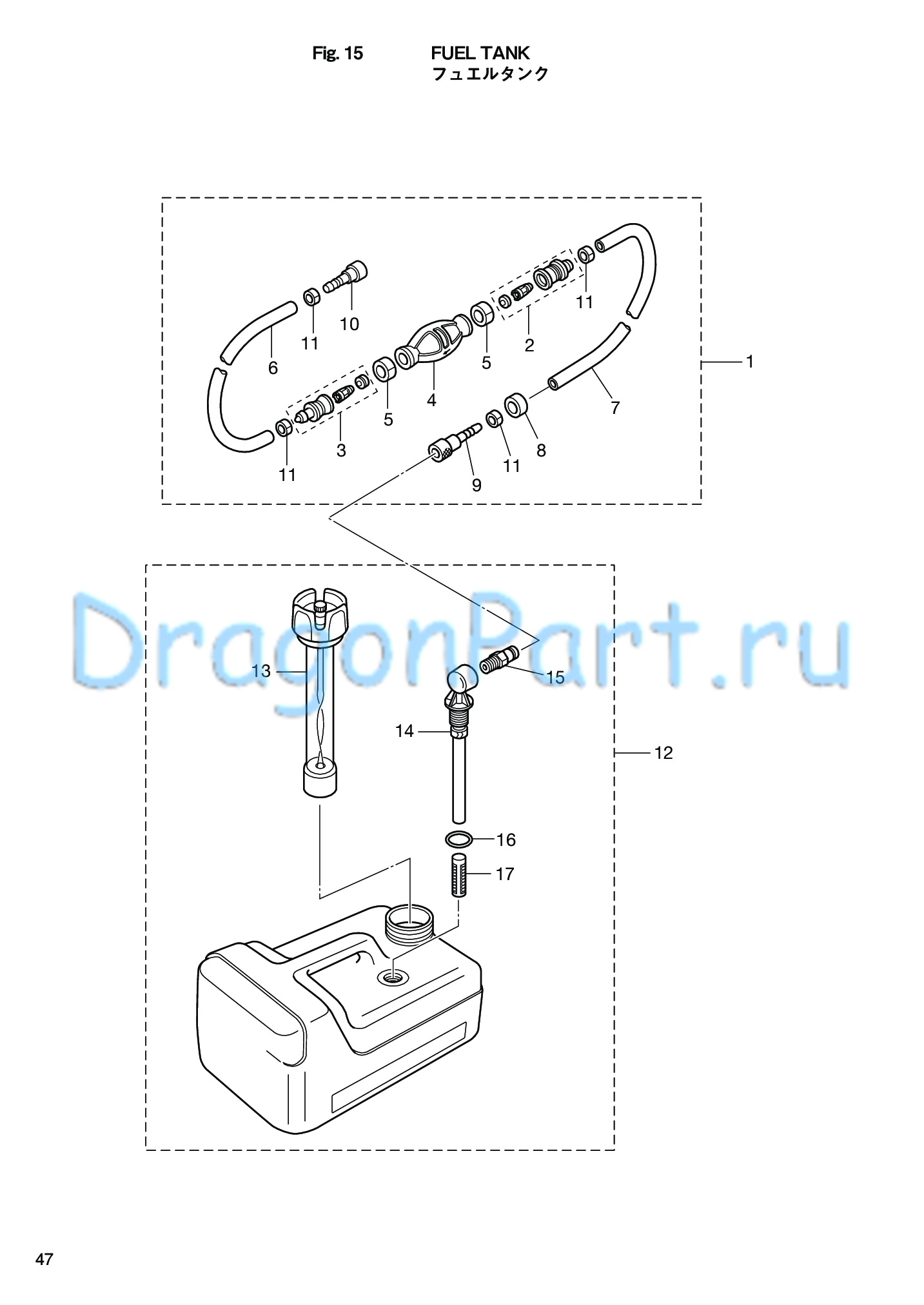

FUEL TANK для Tohatsu M6B - 2015 года выпуска`
-
№АртикулНазвание
-
15-13B7-70200-4 PRIMER BULB ASSYPRIMER BULB ASSY
-
15-23C7-70220-1 * JOINT ASSY (INLET)* JOINT ASSY (INLET)
-
15-33C7-70224-1 * JOINT ASSY (OUTLET)* JOINT ASSY (OUTLET)
-
15-43C7-70211-1 * PRIMER BULB* PRIMER BULB
-
15-53C7-70217-0 * CLAMP* CLAMP
-
15-698AB-70-700 * HOSE
98AB-701000* HOSE
98AB-701000 -
15-798AB-701600 * HOSE
98AB-701000 x 2* HOSE
98AB-701000 x 2 -
15-83B7-70280-1 * FUEL CONNECTOR MARK* FUEL CONNECTOR MARK
-
15-93GF-70281-0 * FUEL CONNECTOR* FUEL CONNECTOR
-
15-103GF-70250-0 * FUEL CONNECTOR* FUEL CONNECTOR
-
15-11332-70201-0 * CLAMP* CLAMP
-
15-123B2-70167-1 FUEL TANK ASSY 12LFUEL TANK ASSY 12L
-
15-133B2-70050-1 * FUEL GAUGE VENT CAP ASSY* FUEL GAUGE VENT CAP ASSY
-
15-143B2-70155-0 * PICK-UP ELBOW ASSY* PICK-UP ELBOW ASSY
-
15-153E0-70270-0 * QUICK-CONNECTOR (MALE)* QUICK-CONNECTOR (MALE)
-
15-163C7-70199-0 * O-RING* O-RING
-
15-173C7-70113-0 * FILTER* FILTER
