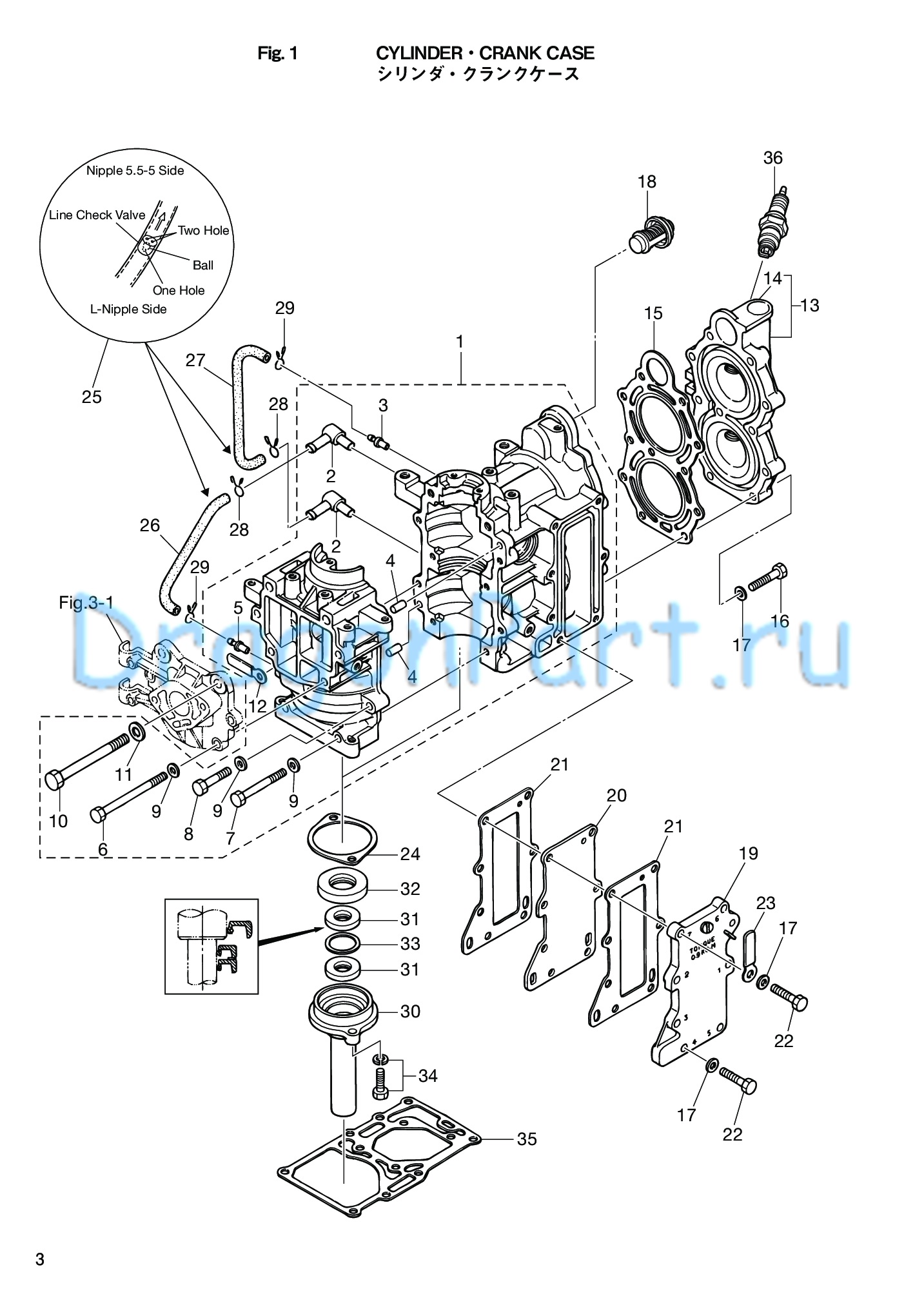

CYLINDER CRANK CASE для Tohatsu M6B - 2015 года выпуска
-
№АртикулНазвание
-
1-13B2B01100-2 CYL BLOCK & CRANKCASE ASSY
for M8B, M6BCYL BLOCK & CRANKCASE ASSY
for M8B, M6B -
1-2393-01137-0 * NIPPLE* NIPPLE
-
1-3393-01131-0 * NIPPLE 5.5-5* NIPPLE 5.5-5
-
1-4345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
1-5393-01131-0 * NIPPLE 5.5-5* NIPPLE 5.5-5
-
1-6916129-0675 * BOLT* BOLT
-
1-7916129-0650 * BOLT* BOLT
-
1-8916129-0630 * BOLT* BOLT
-
1-9940121-0600 * WASHER* WASHER
-
1-10910124-0880 * BOLT* BOLT
-
1-11940121-0800 * WASHER* WASHER
-
1-12309-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
1-133B2B01001-1 CYLINDER HEAD ASSY
for M8B, M6BCYLINDER HEAD ASSY
for M8B, M6B -
1-14350-01093-0 * WELCH PLUG* WELCH PLUG
-
1-153B2-01005-1 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
1-169161F9-0630 BOLT
Cylinder HeadBOLT
Cylinder Head -
1-17940121-0600 WASHER
Cylinder Head Exhaust CoverWASHER
Cylinder Head Exhaust Cover -
1-18350-01030-1 THERMOSTAT
Mark 52C PRVTHERMOSTAT
Mark 52C PRV -
1-193B2B02300-0 EXHAUST COVER ASSYEXHAUST COVER ASSY
-
1-203B2B02302-0 EXHAUST COVER (INNER)
for M8B, M6BEXHAUST COVER (INNER)
for M8B, M6B -
1-213B2-02305-2 EXHAUST COVER GASKET
for M8B, M6BEXHAUST COVER GASKET
for M8B, M6B -
1-229101F4-0625 BOLT
Exhaust CoverBOLT
Exhaust Cover -
1-23309-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
1-243B2-01214-1 CRANKCASE HEAD GASKETCRANKCASE HEAD GASKET
-
1-25393-01160-0 CHECK VALVECHECK VALVE
-
1-2698AL-40-120 HOSE
98AL-401000HOSE
98AL-401000 -
1-2798AL-40-230 HOSE
98AL-401000HOSE
98AL-401000 -
1-283T5-01133-0 CLIP ?8CLIP ?8
-
1-29338-01133-0 CLIP ?7CLIP ?7
-
1-303B2-01210-0 CRANKCASE HEADCRANKCASE HEAD
-
1-313B2-01215-0 OIL SEAL 12-28-5OIL SEAL 12-28-5
-
1-323B2-00122-1 OIL SEAL 20-40-7OIL SEAL 20-40-7
-
1-333B2-01217-0 SPACER 22-27.5-1SPACER 22-27.5-1
-
1-34910103-6620 BOLTBOLT
-
1-353B2-01303-2 ENGINE BASEMENT GASKETENGINE BASEMENT GASKET
-
1-369701-1-1014 SPARK PLUG (BPR7HS10)
for EX STD, DO OPTSPARK PLUG (BPR7HS10)
for EX STD, DO OPT
