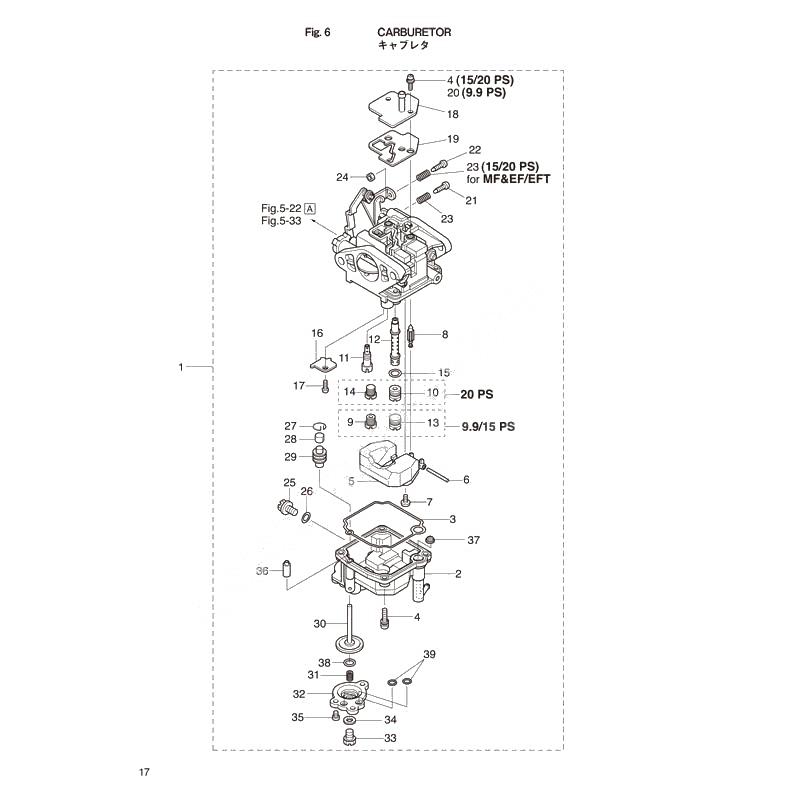

Carburetor для Tohatsu MFS9.9C - 2014 года выпуска`
-
№АртикулНазвание
-
13FS-03100-0 Carburator
9.9ps MF/EFモデル 3FSF A9Carburator
9.9ps MF/EFモデル 3FSF A9 -
23Y0-03120-0 フロートチャンバー(EU)
9.9psフロートチャンバー(EU)
9.9ps -
33V1-03121-0 Gasket,float Chamber
9.9psGasket,float Chamber
9.9ps -
4922503-6412 Screw
9.9psScrew
9.9ps -
53C8-03125-0 FloatFloat
-
63C8-03126-0 Float Arm PinFloat Arm Pin
-
7921703-0406 Screw
9.9psScrew
9.9ps -
83V1-03147-1 Float ValveFloat Valve
-
93FS-04488-0 メインジェット ＃88
9.9psメインジェット ＃88
9.9ps -
113FS-04543-0 スロージェット#43
9.9psスロージェット#43
9.9ps -
123FS-03141-0 Main nozzel
9.9psMain nozzel
9.9ps -
133V1-03169-0 Plug
9.9/15psPlug
9.9/15ps -
153V1-03116-0 O-RingO-Ring
-
163V1-03128-0 Pleat
9.9psPleat
9.9ps -
17922503-0305 Screw
9.9psScrew
9.9ps -
183AA-03181-0 Carburator cover
9.9psCarburator cover
9.9ps -
193AA-03182-0 Carburetor cover gasket
9.9psCarburetor cover gasket
9.9ps -
20922503-6410 Screw
9.9psScrew
9.9ps -
213V2-03179-0 Stop ScrewStop Screw
-
223V1-03179-0 Stop Screw
9.9ps MF&EFモデルStop Screw
9.9ps MF&EFモデル -
233V2-03157-0 Spring
9.9ps MF&EF 15/20ps EP/EPTSpring
9.9ps MF&EF 15/20ps EP/EPT -
243V1-03191-0 Nut
9.9psNut
9.9ps -
253V1-03192-0 Drain Screw
9.9psDrain Screw
9.9ps -
263V1-03193-0 Gasket
9.9psGasket
9.9ps -
273AA-03189-0 Retaining ringRetaining ring
-
283AA-03190-0 CapCap
-
293AA-03311-0 Rubber bootRubber boot
-
303AA-03315-0 プランジャーコンプリート(EU)
9.9psプランジャーコンプリート(EU)
9.9ps -
313AA-03314-0 コイルスプリング(EU)
9.9psコイルスプリング(EU)
9.9ps -
323Y0-03197-0 ダイヤフラムカバー (EU)
9.9psダイヤフラムカバー (EU)
9.9ps -
35921503-0408 Screw
9.9psScrew
9.9ps -
363FS-03198-0 Check Valve
9.9psCheck Valve
9.9ps -
373BJ-02234-0 Fuel FilterFuel Filter
-
393BJ-03243-0 O-RingO-Ring
