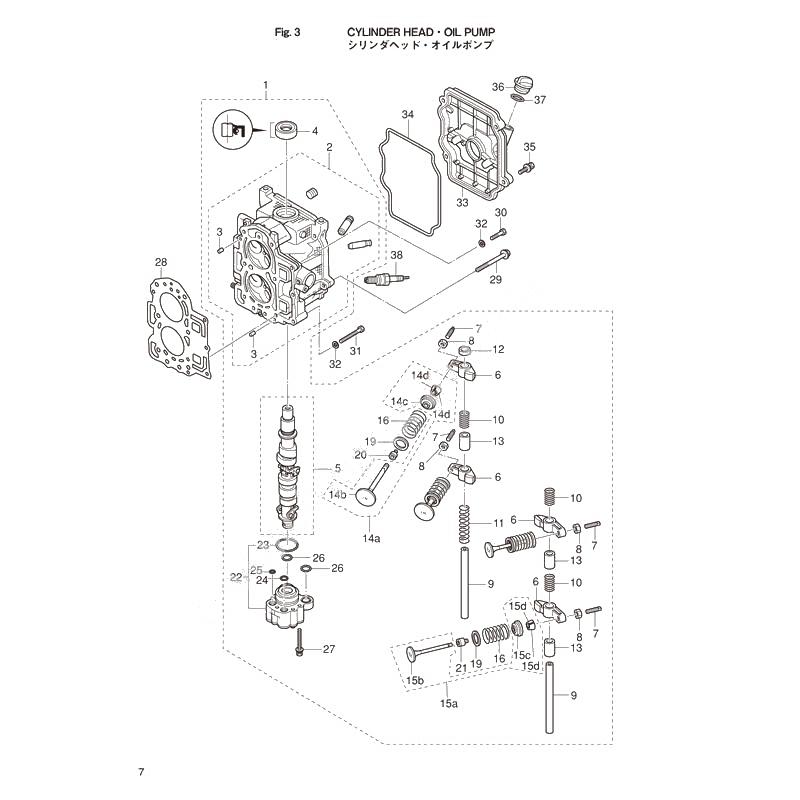

Cylinder head oil pump для Tohatsu MFS9.9C - 2014 года выпуска

№

Артикул

Название
1

3BKB01000-0 Cylinder head complete

Cylinder head complete
2

3BKB01001-0 シリンダーヘッドアッシ

シリンダーヘッドアッシ
3

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12
4

3H8-07025-0 Oil Seal,18-35-8

Oil Seal,18-35-8
5

3BK-07810-0 Camshaft assy

Camshaft assy
6

3AE-07235-0 Rocker arm

Rocker arm
7

3R0-07238-0 Screw

Screw
8

3H8-07237-0 Nut

Nut
9

3Y2-07920-0 Shaft rocker arm

Shaft rocker arm
10

3H8-07225-0 Spring(L=30)

Spring(L=30)
11

3H8-07229-0 Spring(L=51)

Spring(L=51)
12

3R3-07227-0 Washer, 13.2-21.8-2

Washer, 13.2-21.8-2
13

3H8-07239-0 Collar, Rocker Arm Shaft

Collar, Rocker Arm Shaft
3AE-07923-0 Cotter

Cotter
16

3AE-07203-0 Valve spring

Valve spring
19

3H6-07205-0 Seat, Valve Spring

Seat, Valve Spring
20

3R3-07204-0 Seal, In Valve Stem
ブラック

Seal, In Valve Stem
ブラック
21

3R3-07206-0 Seal, EX Valve Stem
グリーン

Seal, EX Valve Stem
グリーン
22

3H8-07600-0 Oil Pump A'ssy

Oil Pump A'ssy
23

3H8-07639-0 O-ring Oil Pump

O-ring Oil Pump
24

3H8-07632-0 O-Ring, 1.5-10.7

O-Ring, 1.5-10.7
25

3H8-07631-0 O-Ring, 1.5-8.5

O-Ring, 1.5-8.5
26

3H8-07635-0 O-Ring, 1.5-15.5

O-Ring, 1.5-15.5
27

910114-5635 New part

New part
9101E3-5635 New part

New part
28

3BJ-01005-0 シリンダヘッドガスケット (F15C/20C)

シリンダヘッドガスケット (F15C/20C)
29

3H8-01013-0 Bolt, Cylinder Head 8-60

Bolt, Cylinder Head 8-60
30

9161F4-0625 New part

New part
916114-0625 New part

New part
31

916119-0640 New part

New part
910103-0640 New part

New part
32

9401E3-0600 Washer

Washer
940113-0600 Washer

Washer
33

3BKB01021-0 Cylinder head cover

Cylinder head cover
34

3BJ-01024-0 Cylinder head cover gasket
ラバー

Cylinder head cover gasket
ラバー
35

910114-5630 Bolt

Bolt
36

3R0-71015-1 Filler Cap,Engine Oil

Filler Cap,Engine Oil
37

3R0-07422-0 Oリング 3.1-24.4

Oリング 3.1-24.4
38

DCPR6E NGK スパークプラグ《1本》 (一体型) (10)
NGK

NGK スパークプラグ《1本》 (一体型) (10)
NGK
