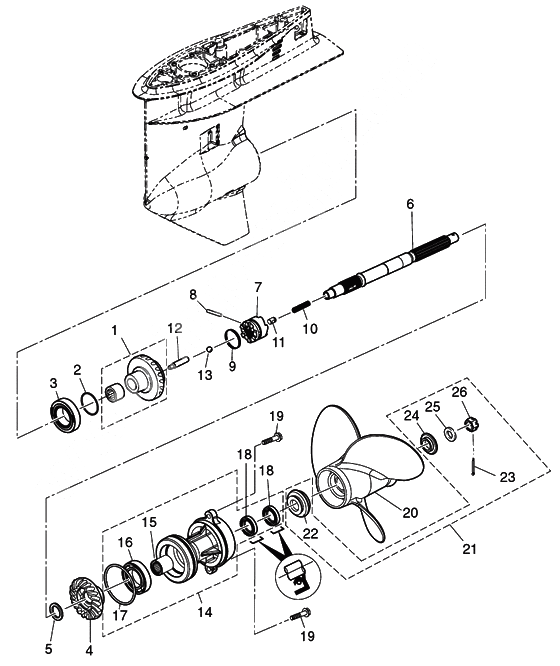

Gear case (propeller shaft) для Tohatsu MFS50A - 2014 года выпуска`
![](/wa-data/public/shop/sheme/tohatsu/e7920ea041cd77a2e0503082ae00c33b.png)
-
№АртикулНазвание
-
13KY-64010-0 Bevel gear (a)Bevel gear (a)
-
2353-64038-0 Shim,36-44-0.1
T=0.1Shim,36-44-0.1
T=0.1 -
2353-64037-0 Shim,36-44-0.15
T=0.15Shim,36-44-0.15
T=0.15 -
2353-64036-0 Shim, 36-44-0.3
T=0.3Shim, 36-44-0.3
T=0.3 -
3345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
43KY-64030-0 Bevel gear (c)Bevel gear (c)
-
53KY-64032-0 Washer 22.1-26-3Washer 22.1-26-3
-
63KY-64211-0 Propeller ShaftPropeller Shaft
-
73KY-64215-0 ClutchClutch
-
83C8-64217-0 Clutch PinClutch Pin
-
93C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
103C8-64221-0 Spring WasherSpring Washer
-
113C8-64222-0 Spring holder clutchSpring holder clutch
-
123KY-64223-0 Push RodPush Rod
-
13965002-0803 Steel ball, 3/8Steel ball, 3/8
-
143KYQ87323-0 Propeller shaft housing assyPropeller shaft housing assy
-
153KY-60102-0 Roller BearingRoller Bearing
-
169601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
173KY-60103-0 O-RingO-Ring
-
183F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
199101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
20348B64108-1 Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180 -
203T5B64518-0 Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229 -
203T5B64523-0 Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
OPT 3 X 290 X 279Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
OPT 3 X 290 X 279 -
203T5B64525-0 Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
OPT 3 X 283 X 305Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
OPT 3 X 283 X 305 -
203T5B64527-0 Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
40PS / STD 3 X 277 X 330Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
40PS / STD 3 X 277 X 330 -
203T5B64529-0 Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
50PS / STD 3 X 279 X 356Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
50PS / STD 3 X 279 X 356 -
203T5B64532-0 Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381 -
203KYB64534-0 Prop f40/50a (11.0 dia x 16 pitch), black
OPT 3 X 406 X 279Prop f40/50a (11.0 dia x 16 pitch), black
OPT 3 X 406 X 279 -
203KYB64536-0 Prop f40/50a (11.0 dia x 17 pitch), black
OPT 3 X 432 X 280Prop f40/50a (11.0 dia x 17 pitch), black
OPT 3 X 432 X 280 -
213T5-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
223C8-64231-0 Thrust holder propellerThrust holder propeller
-
23951503-0325 Split PinSplit Pin
-
24348-64232-0 Stopper PropellerStopper Propeller
-
25345-64124-0 WasherWasher
-
26353-64121-0 Nut PropellerNut Propeller
-
13KY-64010-0 Bevel gear (a)Bevel gear (a)
-
2353-64038-0 Shim,36-44-0.1
T=0.1Shim,36-44-0.1
T=0.1 -
2353-64037-0 Shim,36-44-0.15
T=0.15Shim,36-44-0.15
T=0.15 -
2353-64036-0 Shim, 36-44-0.3
T=0.3Shim, 36-44-0.3
T=0.3 -
3345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
43KY-64030-0 Bevel gear (c)Bevel gear (c)
-
53KY-64032-0 Washer 22.1-26-3Washer 22.1-26-3
-
63KY-64211-0 Propeller ShaftPropeller Shaft
-
73KY-64215-0 ClutchClutch
-
83C8-64217-0 Clutch PinClutch Pin
-
93C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
103C8-64221-0 Spring WasherSpring Washer
-
113C8-64222-0 Spring holder clutchSpring holder clutch
-
123KY-64223-0 Push RodPush Rod
-
13965002-0803 Steel ball, 3/8Steel ball, 3/8
-
143KYQ87323-0 Propeller shaft housing assyPropeller shaft housing assy
-
153KY-60102-0 Roller BearingRoller Bearing
-
169601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
173KY-60103-0 O-RingO-Ring
-
183F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
199101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
20348B64108-1 Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180Prop 40c,d-50d (11.4 dia. x 7.1 pitch) 4 blade
OPT 4 X 290 X 180 -
203T5B64518-0 Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229Prop 40d/50d (12.1 dia. x 9 pitch) black-will not fit 40c
OPT 3 X 311 X 229 -
203T5B64523-0 Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
OPT 3 X 290 X 279Prop 40c/40d 50d (11.6 dia. x 11 pitch) black
OPT 3 X 290 X 279 -
203T5B64525-0 Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
OPT 3 X 283 X 305Prop 40c/40d 50d (11.4 dia. x 12 pitch) black
OPT 3 X 283 X 305 -
203T5B64527-0 Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
40PS / STD 3 X 277 X 330Prop 40c/40d 50d (11.1 dia. x 13 pitch) black
40PS / STD 3 X 277 X 330 -
203T5B64529-0 Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
50PS / STD 3 X 279 X 356Prop 40c/40d 50d (11.1 dia. x 14 pitch) black
50PS / STD 3 X 279 X 356 -
203T5B64532-0 Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381Prop 40c/40d 50d (11.0 dia x 15 pitch) black
OPT 3 X 278 X 381 -
203KYB64534-0 Prop f40/50a (11.0 dia x 16 pitch), black
OPT 3 X 406 X 279Prop f40/50a (11.0 dia x 16 pitch), black
OPT 3 X 406 X 279 -
203KYB64536-0 Prop f40/50a (11.0 dia x 17 pitch), black
OPT 3 X 432 X 280Prop f40/50a (11.0 dia x 17 pitch), black
OPT 3 X 432 X 280 -
213T5-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
223C8-64231-0 Thrust holder propellerThrust holder propeller
-
23951503-0325 Split PinSplit Pin
-
24348-64232-0 Stopper PropellerStopper Propeller
-
25345-64124-0 WasherWasher
-
26353-64121-0 Nut PropellerNut Propeller
