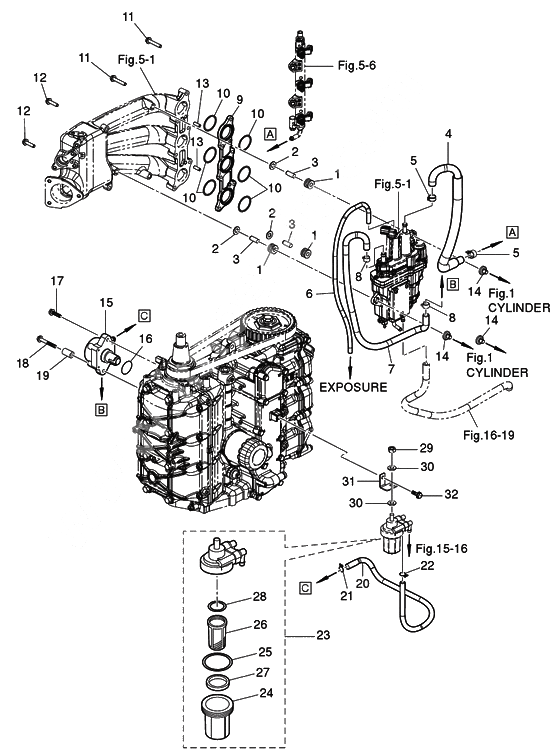

Fuel system для Tohatsu MFS50A - 2014 года выпуска
-
№АртикулНазвание
-
13KY-06920-0 Rubber MountRubber Mount
-
2940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
33KY-01080-0 Pin, 8-22Pin, 8-22
-
43KY-02165-0 Fuel hose w/ protector, 80-200-55
V/SEPARATOR-FUEL RAIL / EPA-KRI-15GFuel hose w/ protector, 80-200-55
V/SEPARATOR-FUEL RAIL / EPA-KRI-15G -
53AC-10087-0 ClampClamp
-
63KY-02203-0 Fuel hose
V/SEPARATOR-EXPOSUREFuel hose
V/SEPARATOR-EXPOSURE -
73KY-04077-0 Fuel hose, 7-12
FUEL PUMP-V/SEPARATOR / USA EPA-KRI-15GFuel hose, 7-12
FUEL PUMP-V/SEPARATOR / USA EPA-KRI-15G -
73KY-04085-0 Low permeation hose, 30-430-45
FUEL PUMP-V/SEPARATOR / STDLow permeation hose, 30-430-45
FUEL PUMP-V/SEPARATOR / STD -
8345-70114-1 ClipClip
-
345-70114-0 ClipClip
-
93KY-03952-0 InsulatorInsulator
-
103KY-02012-0 O-ring, 1.9-33.2O-ring, 1.9-33.2
-
11910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
12910103-5625 BoltBolt
-
133B2-01111-0 Стопор
INTAKE MANIFOLD-VAPOR SEPARATOR ASSYСтопор
INTAKE MANIFOLD-VAPOR SEPARATOR ASSY -
143KY-10155-0 BushingBushing
-
153KY-04000-0 Fuel pump assyFuel pump assy
-
163H8-62415-0 O-RingO-Ring
-
17910103-5625 BoltBolt
-
18910103-5645 BoltBolt
-
193KY-02605-0 Spacer, 6.5-13-22Spacer, 6.5-13-22
-
203KY-04060-0 Low permeation hose (l=445mm)
FUEL FILTER-FUEL PUMP / USA EPA-KRI-15GLow permeation hose (l=445mm)
FUEL FILTER-FUEL PUMP / USA EPA-KRI-15G -
203KY-02211-0 Fuel hose (l=445mm)
FUEL FILTER-FUEL PUMP / STDFuel hose (l=445mm)
FUEL FILTER-FUEL PUMP / STD -
21345-70114-1 ClipClip
-
345-70114-0 ClipClip
-
223AB-35143-0 Clip @ 9.5Clip @ 9.5
-
233T5-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
243B7-02237-0 CupCup
-
253B7-02235-0 O-Ring AO-Ring A
-
263B7-02234-0 FilterFilter
-
273T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
283B7-02236-0 O???? bO???? b
-
29930103-0800 NutNut
-
30940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
313KY-02239-0 PlatePlate
-
32910103-5612 BoltBolt
-
13KY-06920-0 Rubber MountRubber Mount
-
2940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
33KY-01080-0 Pin, 8-22Pin, 8-22
-
43KY-02165-0 Fuel hose w/ protector, 80-200-55
V/SEPARATOR-FUEL RAIL / EPA-KRI-15GFuel hose w/ protector, 80-200-55
V/SEPARATOR-FUEL RAIL / EPA-KRI-15G -
53AC-10087-0 ClampClamp
-
63KY-02203-0 Fuel hose
V/SEPARATOR-EXPOSUREFuel hose
V/SEPARATOR-EXPOSURE -
73KY-04077-0 Fuel hose, 7-12
FUEL PUMP-V/SEPARATOR / USA EPA-KRI-15GFuel hose, 7-12
FUEL PUMP-V/SEPARATOR / USA EPA-KRI-15G -
73KY-04085-0 Low permeation hose, 30-430-45
FUEL PUMP-V/SEPARATOR / STDLow permeation hose, 30-430-45
FUEL PUMP-V/SEPARATOR / STD -
8345-70114-1 ClipClip
-
345-70114-0 ClipClip
-
93KY-03952-0 InsulatorInsulator
-
103KY-02012-0 O-ring, 1.9-33.2O-ring, 1.9-33.2
-
11910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
12910103-5625 BoltBolt
-
133B2-01111-0 Стопор
INTAKE MANIFOLD-VAPOR SEPARATOR ASSYСтопор
INTAKE MANIFOLD-VAPOR SEPARATOR ASSY -
143KY-10155-0 BushingBushing
-
153KY-04000-0 Fuel pump assyFuel pump assy
-
163H8-62415-0 O-RingO-Ring
-
17910103-5625 BoltBolt
-
18910103-5645 BoltBolt
-
193KY-02605-0 Spacer, 6.5-13-22Spacer, 6.5-13-22
-
203KY-04060-0 Low permeation hose (l=445mm)
FUEL FILTER-FUEL PUMP / USA EPA-KRI-15GLow permeation hose (l=445mm)
FUEL FILTER-FUEL PUMP / USA EPA-KRI-15G -
203KY-02211-0 Fuel hose (l=445mm)
FUEL FILTER-FUEL PUMP / STDFuel hose (l=445mm)
FUEL FILTER-FUEL PUMP / STD -
21345-70114-1 ClipClip
-
345-70114-0 ClipClip
-
223AB-35143-0 Clip @ 9.5Clip @ 9.5
-
233T5-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
243B7-02237-0 CupCup
-
253B7-02235-0 O-Ring AO-Ring A
-
263B7-02234-0 FilterFilter
-
273T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
283B7-02236-0 O???? bO???? b
-
29930103-0800 NutNut
-
30940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
313KY-02239-0 PlatePlate
-
32910103-5612 BoltBolt
