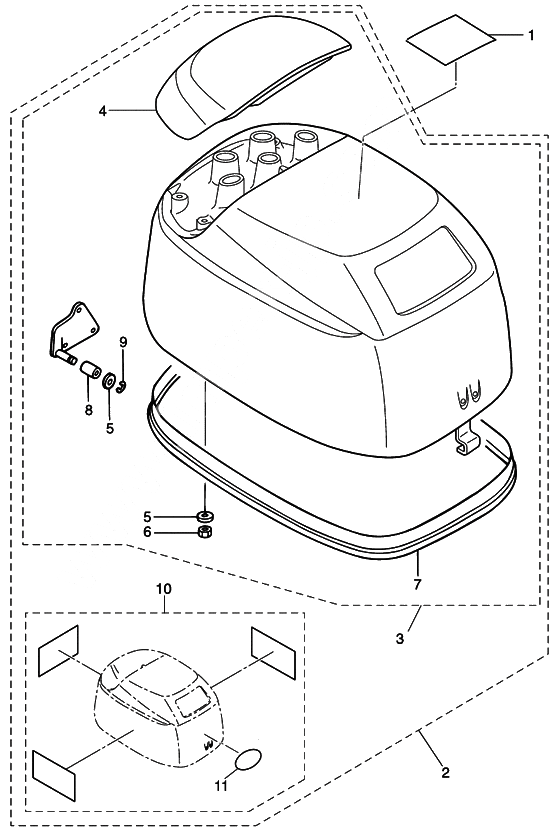

Top cowl для Tohatsu MFS30B - 2014 года выпуска`
-
№АртикулНазвание
-
13R0-72180-0 Caution Lable ACaution Lable A
-
23AEQ67645-3 Motor cover upper nsf25/30 (aqua marine blue)
NISSANMotor cover upper nsf25/30 (aqua marine blue)
NISSAN -
33ACQ67640-2 Motor cover, upper, mfs25/30 (sub-assy)Motor cover, upper, mfs25/30 (sub-assy)
-
43R0Q67521-2 Tilt handle (amb)Tilt handle (amb)
-
53C8-66308-0 New part
TILT HANDLE / COVER STAYNew part
TILT HANDLE / COVER STAY -
6930403-0600 Nylon NutNylon Nut
-
73AD-67501-0 Top cowl sealTop cowl seal
-
83R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
9945303-0500 E-RingE-Ring
-
103AEN87801-0 Decal set nsf30b efi (aqua marine blue)
30PS / NISSANDecal set nsf30b efi (aqua marine blue)
30PS / NISSAN -
113KY-67531-0 Front decalFront decal
Все узлы модели:
- Assembly & kit parts
- Bottom cowl
- Bracket (manual tilt)
- Bracket (ptt & gas assist)
- Component parts of remote control (electric parts)
- Component parts of remote control
- Cylinder & crank case
- Cylinder head & oil pump
- Drive shaft housing
- Electric parts
- Fuel system
- Fuel tank
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Intake manifold
- Magneto
- Optional parts & accessories (1)
- Optional parts (2)
- Piston & crank shaft
- Power tilt
- Pulley & timing belt
- Recoil starter
- Remote control
- Shift & throttle
- Tiller handle (multi-function)
- Tiller handle (standard)
- • Top cowl
