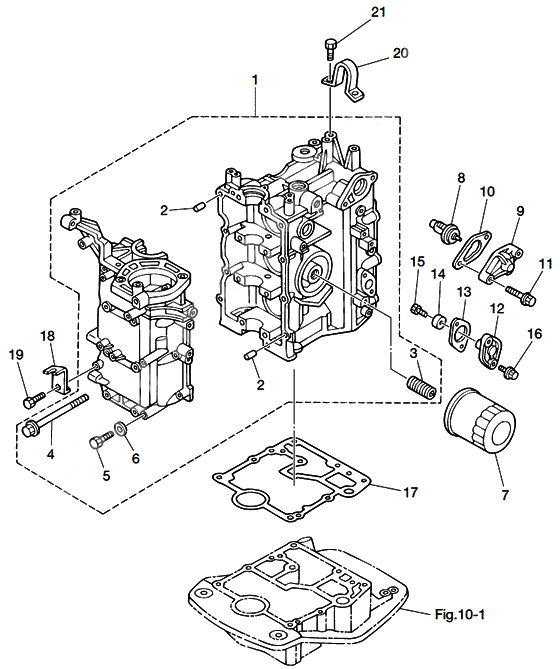

Cylinder & crank case для Tohatsu MFS30B - 2014 года выпуска`
-
№АртикулНазвание
-
13ACB01100-0 Cylinder crank caseCylinder crank case
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
33H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
43R0-01113-1 BoltBolt
-
3R0-01113-0 BoltBolt
-
59161F9-0640 BoltBolt
-
910103-0640 BoltBolt
-
69401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
73R0-07615-1 Oil filter 9.9-60 hp 4-strokeOil filter 9.9-60 hp 4-stroke
-
3R0-07615-0 Oil filter 9.9-60 hp 4-strokeOil filter 9.9-60 hp 4-stroke
-
83R3-01030-0 Thermostat
MARK 60Thermostat
MARK 60 -
10346-01032-0 New partNew part
-
119101E3-5630 BoltBolt
-
910103-5630 BoltBolt
-
123H8B01143-1 Cap anodeCap anode
-
133R3-01144-0 O-RingO-Ring
-
14369-60218-1 New partNew part
-
15910103-0616 BoltBolt
-
169101E3-5620 Bolt & washerBolt & washer
-
173R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
183AC-69000-0 Starter lock cable bracketStarter lock cable bracket
-
199101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
203C7-01513-2 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
3C7B01513-0 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
219101F4-5820 BoltBolt
-
910114-5820 BoltBolt
