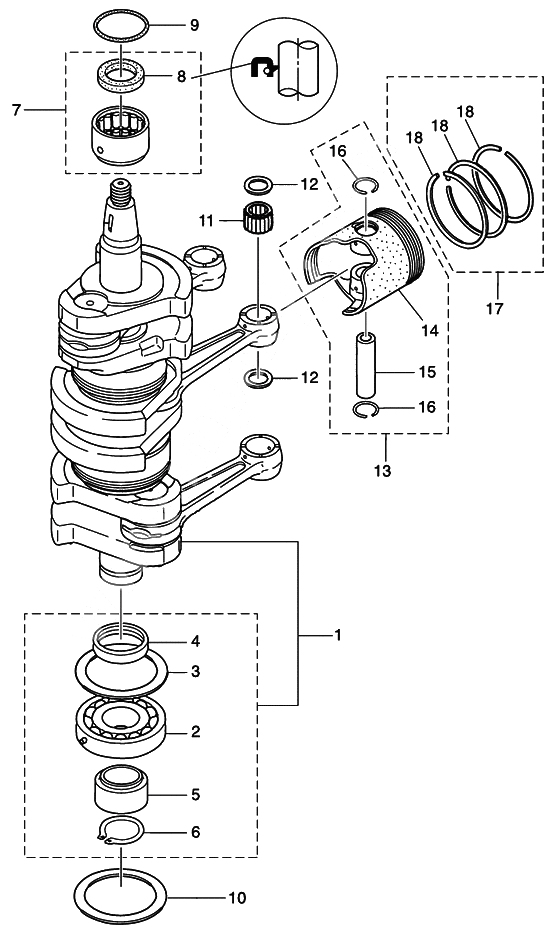

Piston & crank shaft для Tohatsu MD75C2 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3FW-00030-1 Crankshaft assy d75/90c2
    Crankshaft assy d75/90c2
  • 2
    3FW-00118-0 Bearing
    LOWER BEARING
    Bearing
    LOWER BEARING
  • 3
    3B7-00115-0 Washer
    Washer
  • 4
    3B7-00116-0 Spacer, 40-52-7
    Spacer, 40-52-7
  • 5
    3T7-00119-0 Spacer, 35-48.6-16
    Spacer, 35-48.6-16
  • 6
    945107-3500 C-Ring
    C-Ring
  • 7
    3T5-00113-0 Main Bearing Upper
    UPPER BEARING
    Main Bearing Upper
    UPPER BEARING
  • 8
    3T5-00121-0 Oil Seal 36-46-6
    Oil Seal 36-46-6
  • 9
    353-00108-0 O-Ring
    O-Ring
  • 10
    3B7-00115-0 Washer
    Washer
  • 11
    3T1-00042-0 Needle bearing 23-28-28
    Needle bearing 23-28-28
  • 12
    3T1-00046-0 Washer small end bearing
    Washer small end bearing
  • 13
    3FW-87130-0 Piston repair kit (std) md75c2/90c2
    STD
    Piston repair kit (std) md75c2/90c2
    STD
  • 13
    3FW-87131-0 Piston repair kit (0.5 o/z) md75c2/90c2
    OPT
    Piston repair kit (0.5 o/z) md75c2/90c2
    OPT
  • 14
    3FW-00001-1 Piston (std) d75/90c2
    STD
    Piston (std) d75/90c2
    STD
  • 14
    3FW-00004-1 Piston (0.5 o/z) d75/902
    OPT
    Piston (0.5 o/z) d75/902
    OPT
  • 15
    3T1-00021-1 Piston Pin
    Piston Pin
  • 3T1-00021-0 Piston Pin
    Piston Pin
  • 16
    3T1-00024-0 Clip piston pin
    Clip piston pin
  • 17
    3FW-87123-0 Piston ring set std
    STD
    Piston ring set std
    STD
  • 17
    3FW-87124-0 Piston ring set (0.5 o/z)
    OPT
    Piston ring set (0.5 o/z)
    OPT
  • 18
    3B7-00011-0 1-е поршневое кольцо
    STD
    1-е поршневое кольцо
    STD
  • 18
    3B7-00014-0 1-е поршневое кольцо
    OPT
    1-е поршневое кольцо
    OPT
