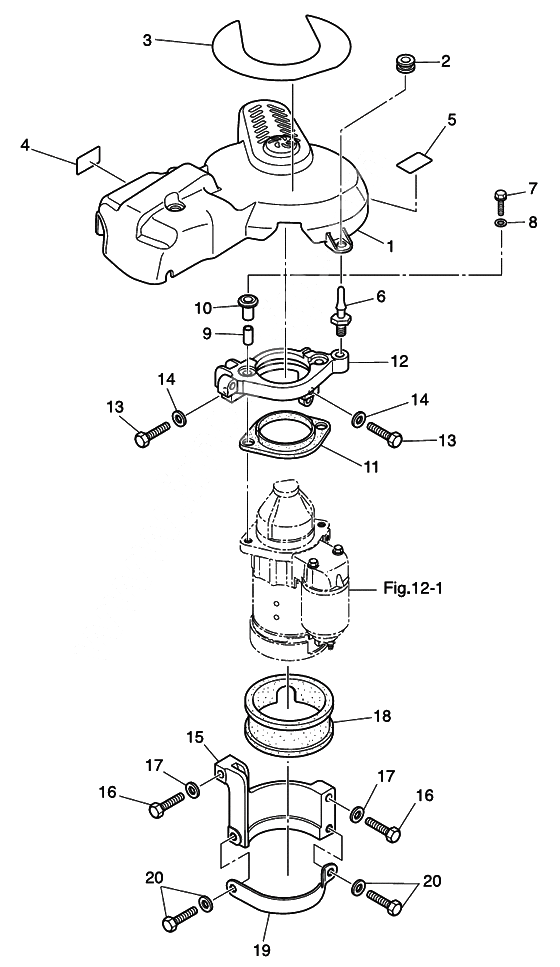

Electric parts (starter motor) (1) для Tohatsu MD75C2 - 2014 года выпуска`
-
№АртикулНазвание
-
13FW-06301-0 Ring gear coverRing gear cover
-
23T1-67005-0 Grommet 16-2.5Grommet 16-2.5
-
33T1-72181-0 Caution decalCaution decal
-
43Y9-72194-0 Label FuseLabel Fuse
-
53FW-72026-0 Spark Plug DecalSpark Plug Decal
-
61E0-36056-0 Ring gear cover hook
CYLINDER STARTER BRACKET / ELECTRIC BRACKETRing gear cover hook
CYLINDER STARTER BRACKET / ELECTRIC BRACKET -
7910103-0840 BoltBolt
-
83B7-63730-0 WasherWasher
-
93C7-76003-1 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
3C7-76003-0 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
103C7-76004-0 Mount Rubber AMount Rubber A
-
113FW-76005-0 Starter motor mountStarter motor mount
-
123FWB76011-0 Starter motor bracket (upper)Starter motor bracket (upper)
-
139161F4-0845 BoltBolt
-
916114-0845 BoltBolt
-
14940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
153FWB76006-0 Starter motor bracket (lower)Starter motor bracket (lower)
-
169161F4-0845 BoltBolt
-
916114-0845 BoltBolt
-
17940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
183FW-76007-0 DamperDamper
-
193FW-76009-0 Starter motor bandStarter motor band
-
20910103-5820 BoltBolt
